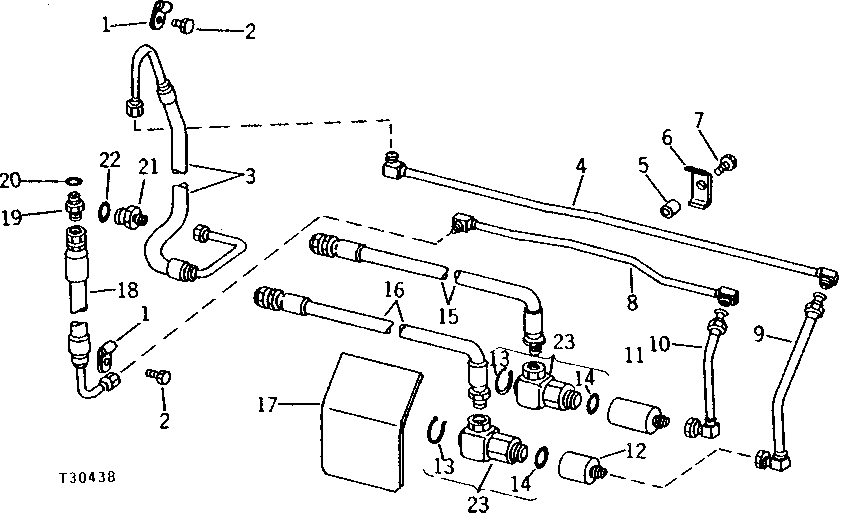

OIL LINES AND FITTINGS FOR SINGLE CLAMP LUMBER FORK [D03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T24958	2	Clip	-
2	19H2021	2	Cap Screw	3/8" X 5/8"
3	AT30328	1	HYDRAULIC HOSE	432 MM LONG (1/2" X 17")
4	AT32167	1	LINE	UPPER
5	28H1878	1	SPACER	3/8" X 7/16"
6	U40398	1	Clamp	(SUB FOR T31235)
7	19H2676	1	Cap Screw	3/8" X 1"
8	AT32168	1	LINE	LOWER
9	AT32165	1	LINE	-
10	AT32166	1	LINE	-
11	AT31233	1	FITTING	UPPER
12	AT31232	1	FITTING	LOWER
13	T33280	2	SNAP RING	-
14	R26906	2	O-Ring	-
15	AU10861	1	HYDRAULIC HOSE - FABRICATE	864 MM LONG (1/2" X 34") (SUB FOR AT30349 AND AU11506)
16	AT30350	1	HYDRAULIC HOSE - FABRICATE	927 MM LONG (1/2" X 36-1/2")
17	T31243	1	PLATE	-
18	AT30327	1	HYDRAULIC HOSE - FABRICATE	508 MM LONG (1/2" X 20")
19	R27237	1	Fitting	-
20	R26375	1	O-Ring	-
21	T31236	1	Fitting	-
22	U12547	1	O-Ring	(SUB FOR F3171R)
23	AT31235	2	ELBOW FITTING	-
23	AT32495	1	KIT	REPAIR INTERNAL (REPAIRS FOR AT31235) (CONTAINS TWO SEALS TWO WASHERS, AND TWO SNAP RINGS)

OIL LINES AND FITTINGS FOR SINGLE CLAMP LUMBER FORK [D03]
