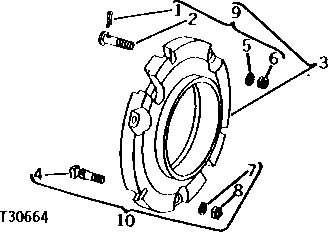

REAR WHEEL WEIGHT FOR 28" STEEL DISK WHEEL [02B09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7015	8	Cotter Pin	3.200 X 25 MM
2	R28493	8	Bolt	(1ST WEIGHT TO WHEEL)
3	-	1	Part 3	(CONSISTS OF (2) T21689, REAR WEIGHTS AND AT17727 ATTACHING HARDWARE) (1ST WEIGHT TO WHEEL) (110 LBS.) (49.9 KG) ( AT21454 NO LONGER AVAILABLE)
4	R34801	3	Bolt	(ADDITIONAL WEIGHT TO WHEEL)
5	12H294	8	Lock Washer	5/8"
6	14H760	8	Nut	5/8"
7	12H294	3	Lock Washer	5/8"
8	14H760	3	Nut	5/8"
9	-	1	Part 9	CONTAINS HARDWARE (TO MOUNT TWO WEIGHTS) (WEIGHT TO RIM) ( AT17727 NO LONGER AVAILABLE)
10	-	1	Part 10	( AA4029R N0 LONGER AVAILABLE) (CONTAINS HARDWARE TO MOUNT TWO WEIGHTS) (ADDITIONAL WEIGHT TO WEIGHT)
..	-	1	Part 11	( T21689 NO LONGER AVAILABLE)

REAR WHEEL WEIGHT FOR 28" STEEL DISK WHEEL [02B09]
