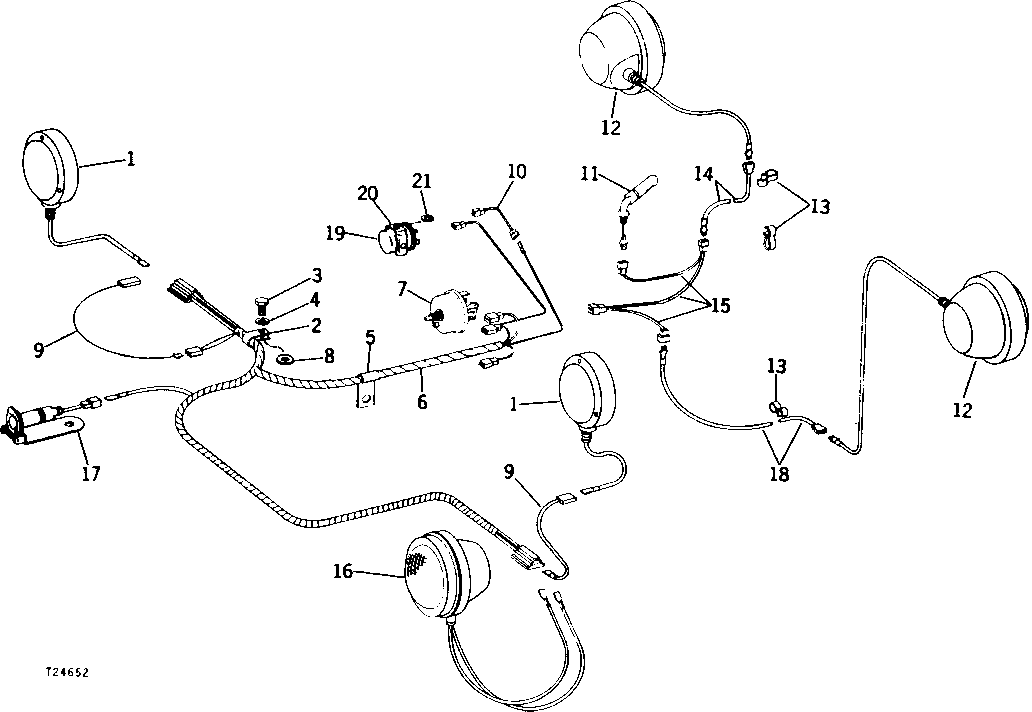

FRONT AND REAR LIGHT WIRING SYSTEM (WHEN EQUIPPED WITH JD401 LOADER) [02C19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR50580	2	LAMP	-
2	T19935	2	Clamp	(SUB FOR T32231, THIS APPLICATION)
3	19H2021	2	Cap Screw	3/8" X 5/8"
4	12H304	2	Lock Washer	3/8"
5	T13744	4	Clamp	-
6	AR51406	1	WIRING HARNESS	-
7	AR28401	1	SWITCH	-
8	T21242	2	Washer	-
9	AR51403	2	WIRING LEAD	WARNING LIGHT
10	-	1	Part 10	76 MM (3") (MAKE FROM TWO R32024 AND R32027 FROM AR84006 WIRE REPAIR KIT) FLASHER TO FENDER LIGHT HARNESS
11	AT20739	1	LAMP	-
12	AT20106	2	FLOODLAMP	-
13	T41072	3	CLIP	(SUB FOR M644T, THIS APPLICATION)
14	AT22859	1	WIRING LEAD	L.H., 19" LONG
15	AT20740	1	WIRING HARNESS	SWITCH TO FRONT LIGHTS AND DASH LAMP
16	-	1	Part 16	FLOOD AND TAIL ( AR77327 NO LONGER AVAILABLE) (SUB FOR AT20107) (SUB AR77326 AND AT280641)
17	GY20126	1	Socket Outlet	(ALSO ORDER T201401 AND AT300539) (SUB FOR AT20709)
18	AT22860	1	WIRING LEAD	R.H. (699 MM) LONG (27-1/2")
19	AU41465	1	Flasher	(12-VOLT)
20	T29417	1	BRACKET	-
21	24H1283	1	Washer	7/32" X 1/2" X 0.049"

FRONT AND REAR LIGHT WIRING SYSTEM (WHEN EQUIPPED WITH JD401 LOADER) [02C19]
