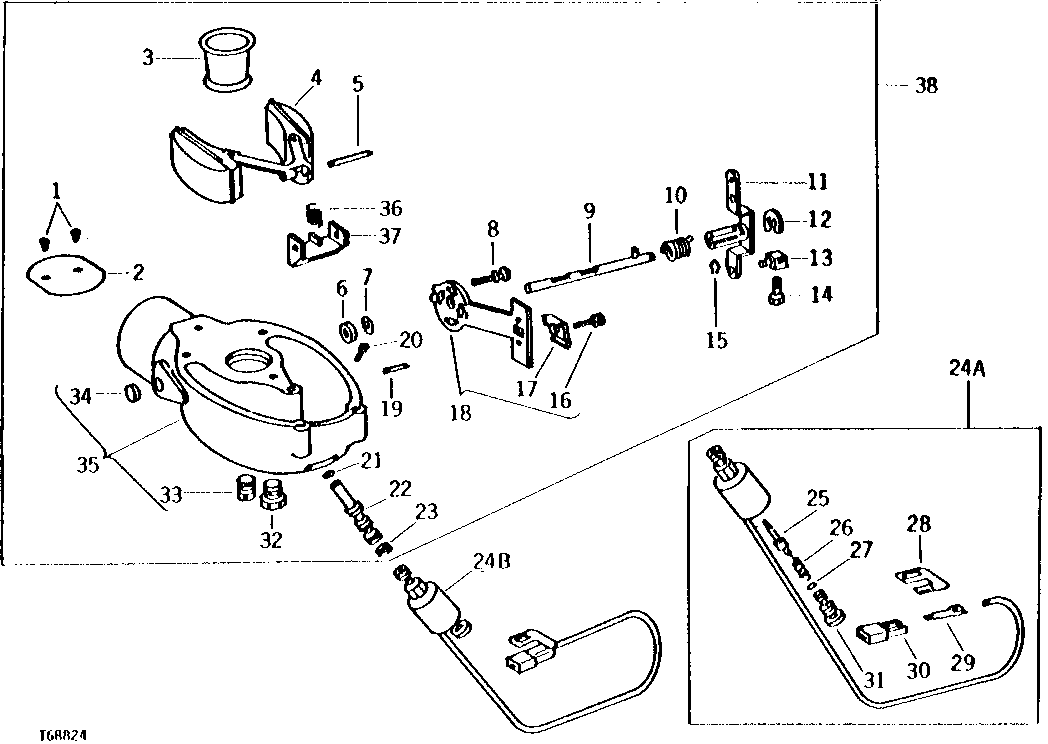

CARBURETOR BOWL ASSEMBLY (MARVEL-SCHEBLER NO. TSX-905) [01D13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	B17696	2	SCREW	-
2	T23524	1	CHOKE	-
3	R61642	1	VENTURI	(SUB FOR T23525)
4	30-739	1	FLOAT	-
5	R10211	1	SHAFT	(B)
6	R10186	1	SEAL	(B)
7	R10187	1	SHIM	-
8	21H1315	2	Screw	0.164" X 3/4", (SUB FOR T23522, ALSO ORDER 12H379)
8	12H379	2	Lock Washer	0.164"
9	AT22990	1	SHAFT	-
10	T23523	1	SPRING	-
11	-	1	Part 12	( AT22989 NO LONGER AVAILABLE)
12	T23529	1	Snap Ring	-
13	R10184	1	SWIVEL	-
14	21H971	1	SCREW	0.164" X 5/16"
15	R10185	1	Spring Locking Pin	-
16	15A295	1	SCREW	-
17	R10188	1	CLIP	-
18	AM117798	1	KIT	(SUB FOR AT22993 AND AM107391)
19	34H242	1	Spring Pin	1/8" X 7/16"
20	T25157	1	NOZZLE	-
21	GW46-16-456	1	GASKET	(B) ( 16-456 NO LONGER AVAILABLE)
22	T719T	1	NOZZLE	-
23	16-47	1	GASKET	(B)
25	AT31878	1	NEEDLE	(SUB AR67706, THIS APPLICATION)
26	T25152	1	SPRING	-
27	T25154	1	O-Ring	-
28	-	1	Part 30	( T25153 NO LONGER AVAILABLE)
29	T25155	1	ELECTRICAL CONNECTOR ASSY	-
30	T25156	1	Elec. Connector Terminal	-
31	T32554	1	SCREW	-
32	R10160	1	PIPE PLUG	-
33	99-4	1	PIPE PLUG	-
34	R10150	1	PLUG	-
35	AT21353	1	HOUSING	(WITH POWER JET, PIN AND PLUGS)
36	T23532	1	SPRING	-
37	T23536	1	BRACKET	-
38	AT22994	1	CARBURETOR	(ALSO ORDER AR67706, SOLENOID ASSEMBLY) (SUB RE19402, ALSO ORDER RE19408) (SUB FOR AR62244)
..	RE528308	1	KIT	(SUB FOR AT22995) ( AR52589 NO LONGER AVAILABLE)
24A	-	1	Part 25	(SUB AR67706, THIS APPLICATION) (SUB FOR AT31877)
24B	AR67706	1	SOLENOID	-

CARBURETOR BOWL ASSEMBLY (MARVEL-SCHEBLER NO. TSX-905) [01D13]
