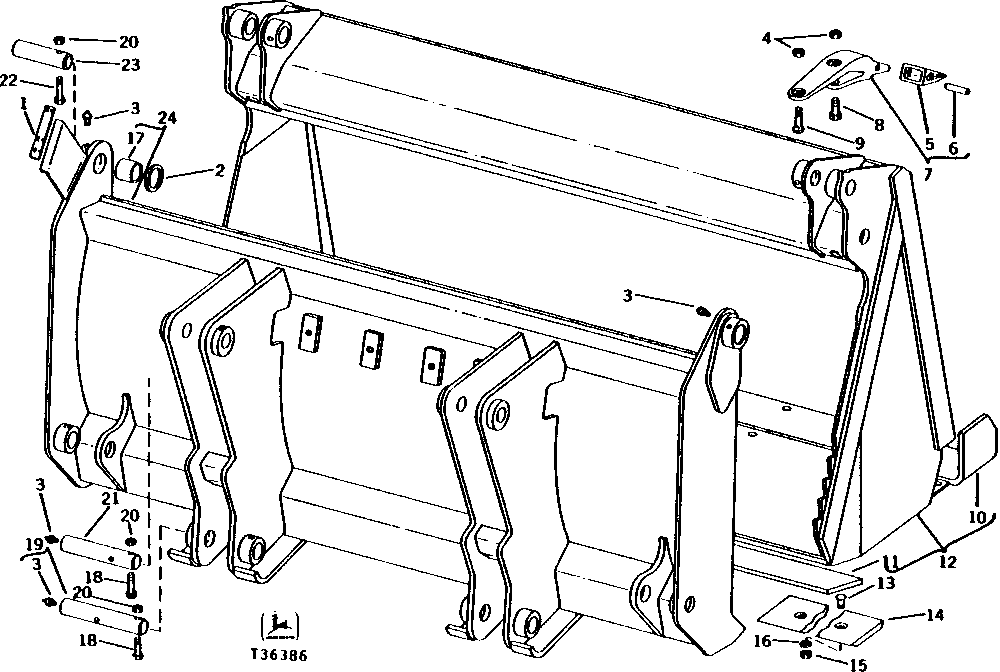

JOHN DEERE MULTI-PURPOSE BUCKET [A12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T43671	1	LABEL	-
2	24H1595	2	Washer	2-1/16" X 3" X 0.075"
3	JD7759	6	Lubrication Fitting	-
4	H32811	16	Lock Nut	(SUB FOR U14502)
5	U13449	8	TOOTH	(ALSO ORDER 34M7070)
6	25H829	8	GROOVE PIN	3/8" X 1-3/4"
7	-	8	Part 7	( AU40885 NO LONGER AVAILABLE)
8	10H1238	8	Bolt	HS, SAE 8, 1/2" X 2-3/4"
9	19H2993	8	Cap Screw	HS, SAE 8, 1/2" X 1-1/2"
10	T45864	1	DURA-MAX TM CUTTING EDGE	-
10	T84180	1	CUTTING EDGE	AUXILIARY - FOR USE WITH T45864, (USE WITH (8) BP12214 AND (8) 10H1238)
11	T45861	1	CUTTING EDGE	REAR
12	AT53667	1	LOADER BUCKET	-
12	AT44608	1	CLAMSHELL BUCKET	(SUB AT53667)
13	10H1047	7	Bolt	3/4" X 2-1/4"
14	U16748	1	Cutting Edge	-
15	14H794	7	Nut	3/4"
16	12H236	7	Lock Washer	3/4"
17	U17220	2	BUSHING	-
18	19H1781	4	CAP SCREW	1/2" X 3-1/2"
19	AU14215	2	PIN FASTENER	LOWER
20	BP12214	6	Lock Nut	-
21	T32780	2	PIN FASTENER	UPPER
22	19H3550	2	Cap Screw	1/2" X 4"
23	T43502	2	PIN FASTENER	-
24	AT44611	1	BLADE	-
..	-	1	Part 27	( AT44627 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS) 0.57 M3 (3/4" YARD) MULTI-PURPOSE (FOR TRACTORS WITHOUT THIRD FUNCTION HYDRAULIC ALSO ORDER AT35082) (FOR TRACTOR EQUIPPED WITH RIPPER ALSO ORDER AT35083 WHICH INCLUDES ADAPTIVE PARTS KIT) (FOR TRACTORS WITHOUT REAR EQUIPMENT ALSO ORDER AT36416 AND T33431) (FOR TRACTORS BELOW SERIAL NUMBER 206829 ALSO ORDER AT47430)

JOHN DEERE MULTI-PURPOSE BUCKET [A12]
