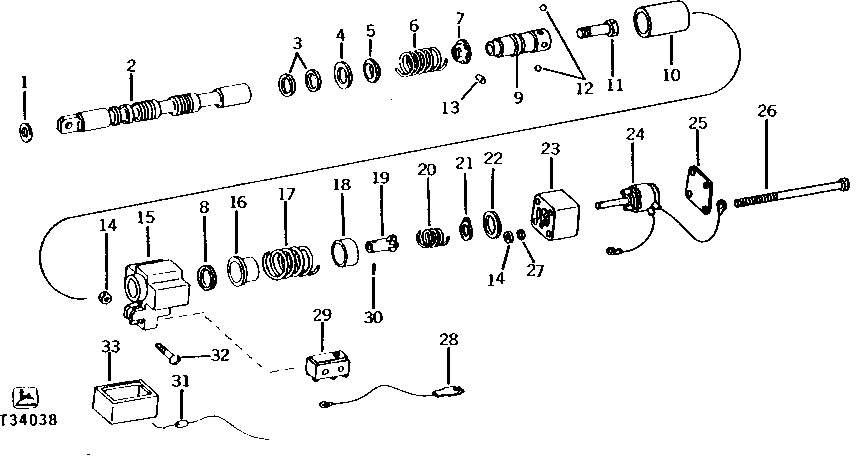

ELECTRIC RETURN-TO-DIG MECHANISM (BUCKET VALVE) (SERIAL NO. -206828) [B07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	1	Lock Washer	3/8"
2	-	1	Part 2	(SUB AT41790)
3	T122063	2	O-RING	(SUB FOR (2) T27593)
4	T34973	1	WASHER	-
5	T34975	1	ROUND RETAINER	-
6	T34974	1	SPRING	-
7	T34977	1	ROUND RETAINER	-
8	T34990	1	SNAP RING	-
9	T34976	1	GUIDE	-
10	T34992	1	BUSHING	-
11	T34979	1	SCREW	-
12	T13624	4	Ball	(SUB FOR T34983)
13	T34980	1	NEEDLE ROLLER	-
14	14H1026	4	Nut	0.138"
15	T40391	1	HOUSING	(SUB FOR T34978)
16	T34982	1	ROUND RETAINER	-
17	T34981	1	SPRING	-
18	AT58739	1	DETENT	(SUB FOR T34989)
19	T34988	1	RAMP	-
20	T34987	1	SPRING	-
21	T34986	1	SNAP RING	-
22	T34995	1	SHIM	.737 MM (.029")
23	T34984	1	HOUSING	-
24	AT34047	1	SOLENOID	-
25	T34985	1	COVER	-
26	19H2341	4	CAP SCREW	1/4" X 6"
27	12M7084	2	Lock Washer	4.300 MM, (SUB FOR T34993)
28	AT34051	1	WIRING LEAD	-
29	AT34050	1	SWITCH	-
30	34H242	1	Spring Pin	1/8" X 7/16"
31	T34994	1	CONDUCTOR	-
32	21H1348	1	Screw	0.138" X 1-1/8"
33	T34991	1	COVER	-
..	AT34046	1	VALVE	WITH ELECTRIC RETURN-TO-DIG MECHANISM, (SUB AT41790)
..	AT41790	1	VALVE	-
..	AT41789	1	CONTROL VALVE	THREE-SECTION, WITH ELECTRIC RETURN-TO-DIG MECHANISM, (SUB FOR AT32124) (ALSO INCLUDES PARTS SHOWN ON PAGES 25-5, 25-7, AND 25-8) (SUB AT43378, SEE PAGES 25-9, 25-10, 25-11, AND 25-12)
