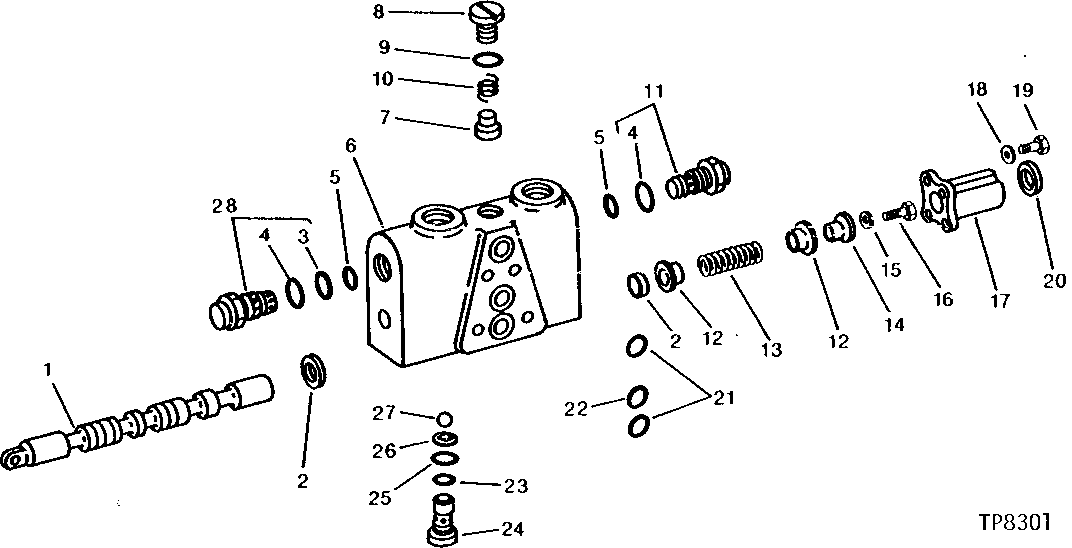

BUCKET VALVE (SERIAL NO. 206829- ) [B13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	WITH ELECTRIC RETURN-TO-DIG MECHANISM, (SUB AT43789)
1	-	1	Part 1	WITHOUT ELECTRIC RETURN-TO-DIG MECHANISM, (SUB AT43792)
2	T122063	2	O-RING	(A) (SUB FOR (2) T27593)
3	T44948	1	O-Ring	-
4	U15242	2	O-RING	(A)
5	T44948	2	O-Ring	(A) (SUB FOR U40424)
6	-	1	Part 7	WITHOUT ELECTRIC RETURN-TO-DIG MECHANISM, (SUB AT43792)
6	-	1	Part 8	WITH ELECTRIC RETURN-TO-DIG MECHANISM, (SUB AT43789)
7	U17396	1	POPPET	-
8	U17393	1	FITTING	-
9	U17409	1	O-Ring	(A)
10	U17406	1	SPRING	-
11	AT43790	1	RELIEF VALVE	8 619 KPA (86 BAR) (1250 PSI)
12	U17395	4	ROUND RETAINER	(WITHOUT RETURN-TO-DIG MECHANISM)
13	U17403	2	SPRING	(WITHOUT RETURN-TO-DIG MECHANISM)
14	U17391	2	ROUND RETAINER	(WITHOUT RETURN-TO-DIG MECHANISM)
15	U11298	2	LOCK WASHER	(WITHOUT RETURN-TO-DIG MECHANISM)
16	19H3295	2	Screw	(SUB FOR U40662) 3/8" X 3/4" (WITHOUT RETURN-TO-DIG MECHANISM)
17	U17385	1	COVER	(WITHOUT RETURN-TO-DIG MECHANISM)
18	12H302	4	Lock Washer	1/4", WITHOUT RETURN-TO-DIG MECHANISM
19	21H1174	4	SCREW	1/4" X 1", WITHOUT RETURN-TO-DIG MECHANISM
20	U17387	1	DIAPHRAGM	(WITHOUT RETURN-TO-DIG MECHANISM)
21	T30423	2	O-RING	-
22	T30424	1	O-RING	-
23	U15192	1	O-Ring	(A)
24	U17397	1	HOUSING	LOWER
25	T75984	1	O-Ring	(A) (SUB FOR T15710, THIS APPLICATION)
26	U17398	1	RETAINER	-
27	U17411	1	BALL	-
28	AU14302	1	PRESSURE RELIEF VALVE	17 238 KPA (173 BAR) (2500 PSI)
..	AT43792	1	VALVE	REGENERATIVE, WITHOUT RETURN-TO-DIG MECHANISM
..	AT43379	1	VALVE	THREE-SECTION, WITHOUT RETURN-TO-DIG MECHANISM
..	AT43789	1	VALVE	REGENERATIVE, WITH ELECTRIC RETURN-TO-DIG MECHANISM (ALSO INCLUDES PARTS SHOWN ON PAGES 25-9, 25-10, AND 25-12)
..	AT43792	1	VALVE	THREE-SECTION WITH ELECTRIC RETURN-TO-DIG MECHANISM (ALSO INCLUDES PARTS SHOWN ON PAGES 25-9, 25-10 AND 25-12)
..	AU40433	1	SEAL KIT	REPAIR O-RING AND SEAL
