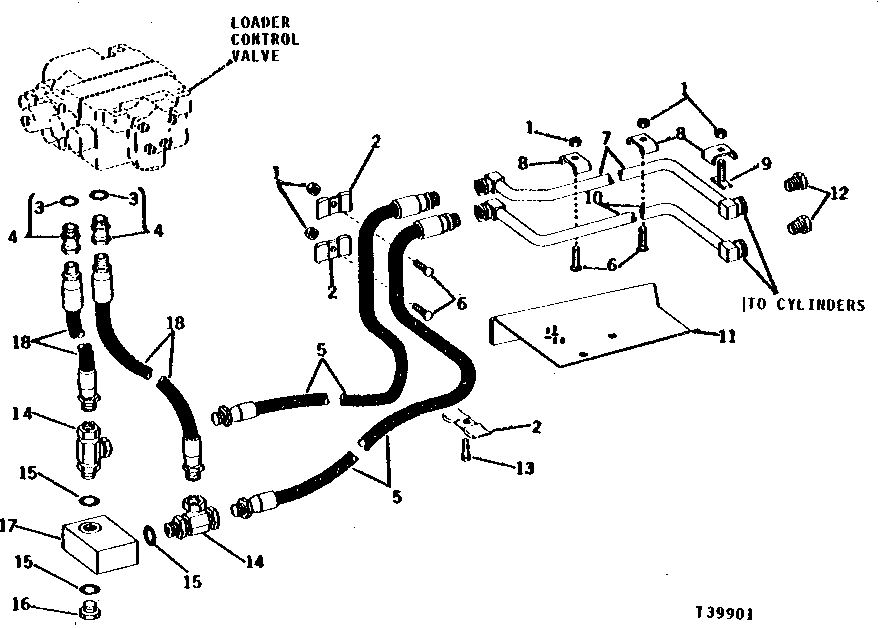

BOOM TUBES AND FITTINGS (LOADER CONTROL VALVE-TO-JOHN DEERE MULTI-PURPOSE BUCKET) (SERIAL NO. -206828) [C01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H143332	5	Lock Nut	(B) (SUB FOR T32688)
2	U13055	3	CLAMP	(B)
3	U12547	2	O-Ring	(B)
4	AU40260	2	ADAPTER	(B) 1-1/16" X 1-1/2"
5	AT32146	2	HYDRAULIC HOSE - FABRICATE	(B) 2 667 MM (1/2" X 105" LONG)
6	U40407	4	STUD	(B)
7	AT32145	1	OIL LINE	(B) BOOM, OUTER
8	U13051	3	CLAMP	(B)
9	AT32147	1	SUPPORT	(B)
10	AT32144	1	LINE	(B) BOOM, INNER
11	T32911	1	FENDER	(B) LEFT (USE WITH JOHN (DEERE MULTI-PURPOSE BUCKET OR LOG FORK)
12	-	2	Part 12	(B) (T40110 NO LONGER AVAILABLE) (SUB FOR U40980) (WITHOUT JOHN DEERE MULTI-PURPOSE BUCKET OR WITHOUT LOG FORK)
13	19H3031	1	Cap Screw	(B) 3/8" X 2-1/2", ATTACHED TO BOTTOM OF BATTERY BOX
14	AT33031	2	TEE FITTING	(A)
15	R26906	3	O-Ring	(A)
16	R27474	1	Drain Plug	(A)
17	AT30373	1	PRESSURE RELIEF VALVE	(A)
18	AU40144	2	HYDRAULIC HOSE - FABRICATE	(A) 254 MM (1/2" X 10" LONG)
..	AT47430	1	RELIEF VALVE	-
..	AT35082	1	OIL LINE	-

BOOM TUBES AND FITTINGS (LOADER CONTROL VALVE-TO-JOHN DEERE MULTI-PURPOSE BUCKET) (SERIAL NO. -206828) [C01]
