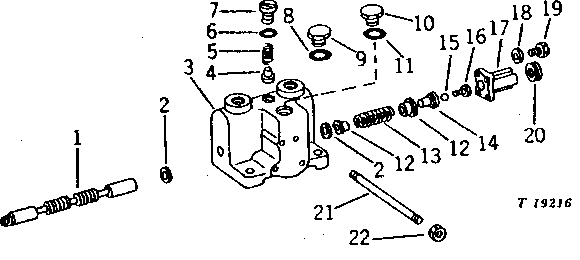

AUXILIARY VALVE (SERIAL NO. -206828) [B10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB AU14305)
2	T122063	2	O-RING	(SUB FOR (2) T27593)
3	-	1	Part 3	(SUB AU14305)
4	U17396	1	POPPET	-
5	U17406	1	SPRING	-
6	U17409	1	O-Ring	-
7	U17393	1	FITTING	-
8	U12547	2	O-Ring	-
9	U17383	2	FITTING	-
10	U17384	1	DRAIN PLUG	-
11	R29936	1	O-Ring	-
12	U17395	4	ROUND RETAINER	-
13	U17403	2	SPRING	-
14	U17391	2	ROUND RETAINER	-
15	U11298	2	LOCK WASHER	-
16	19H3295	2	Screw	HS, SAE 8, 3/8" X 3/4", (SUB FOR U40662)
17	U17385	1	COVER	-
18	12H302	4	Lock Washer	1/4"
19	21H1174	4	SCREW	1/4" X 1"
20	U17387	1	DIAPHRAGM	-
21	U17392	4	STUD	-
22	U13184	4	Lock Nut	-
..	-	1	Part 23	(AU14305 NO LONGER AVAILABLE) (SUB AT104191) (FOR RIPPER, LOG LOADER, OR DROTT 4-IN-1 BUCKET)
..	AT41787	1	CONTROL VALVE	THREE-SECTION COMPLETE, (SUB FOR AT32116) (ALSO INCLUDES PARTS SHOWN ON PAGES 25-5 AND 25-7) (SUB AT43379, SEE PAGES 25-9, 25-11, AND 25-12)
..	AT41789	1	CONTROL VALVE	THREE-SECTION COMPLETE, (SUB FOR AT32124) (ALSO INCLUDES PARTS SHOWN ON PAGES 25-5, 25-6, AND 25-7) (SUB AT43378, SEE PAGES 25-9, 25-10, 25-11, AND 25-12)

AUXILIARY VALVE (SERIAL NO. -206828) [B10]

Нет текстового описания
