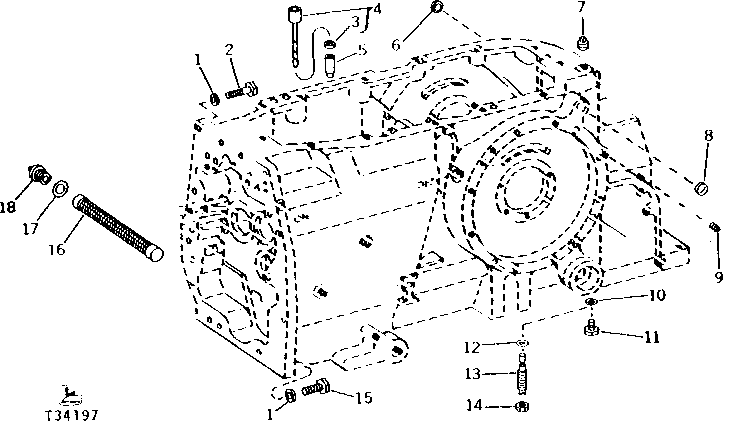

TRANSMISSION CASE FILTER, OIL CAP, AND PARKING BRAKE PLUGS [01E19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20168	8	Washer	-
2	19H2735	2	Cap Screw	1/2" X 2"
3	R1590R	1	WASHER	(USE WHEN AT23308 HAS BEEN INSTALLED AS A REPLACEMENT PART)
4	AT19830	1	DIPSTICK	(USE WHEN AT23308 HAS BEEN INSTALLED AS A REPLACEMENT PART)
4	T12083	1	Plug	(SUB FOR T23433)
5	U41438	1	TUBE	(SUB FOR T21562, THIS APPLICATION)
6	M4225T	1	PLUG	(WITHOUT PARKING BRAKE)
7	15H562	1	Pipe Plug	1"
8	T21937	1	Plug	(WITHOUT PARKING BRAKE)
9	15H584	1	Pipe Plug	1/2"
10	R27003	1	Washer	(WITHOUT PARKING BRAKE)
11	19H2351	1	Cap Screw	1/2" X 1/2"
12	R27490	1	O-Ring	(WITH PARKING BRAKE)
13	T21776	1	SCREW	(WITH PARKING BRAKE)
14	14H971	1	NUT	1/2", (WITH PARKING BRAKE)
15	19H2993	6	Cap Screw	1/2" X 1-1/2"
16	AR26375	1	SCREEN	(SUB FOR R53169, THIS APPLICATION)
17	A4808R	1	WASHER	-
18	R40147	1	FITTING	(SUB FOR A4806R)

TRANSMISSION CASE FILTER, OIL CAP, AND PARKING BRAKE PLUGS [01E19]
