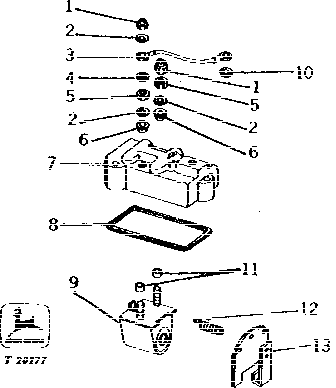

FUEL INJECTION PUMP ELECTRIC SHUT-OFF (ROOSA-MASTER NO. JDB331AL2406 OR JDB331MD2406) [01D19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M63431	2	Lock Nut	(E) (F) (SUB FOR M63431)
2	R47049	3	WASHER	(E) (F) (SUB RE37091)
3	R66593	1	STRAP	(SUB FOR AR49542) (SUB AR50874)
4	12M7084	1	Lock Washer	(SUB FOR R47077)
5	T11938	2	NUT	(SUB RE37091)
6	T11936	2	WASHER	(E) (F) (A) (SUB RE37091)
7	R37139	1	COVER	(F)
8	T11918	1	GASKET	(F) (A)
9	AR48219	1	SOLENOID	(E) (F) (SUB RE37089 AND RE37091, THIS APPLICATION)
10	12H295	1	Lock Washer	0.190"
11	T11937	1	Insulator	(E) (F) (A)
12	T11935	1	SPRING	(E) (F)
13	AT11524	1	ARM	(E) (F) (SUB RE37089 AND RE37091, THIS APPLICATION)
..	AR49904	1	FUEL INJECTION PUMP	-
..	AR87068	1	KIT	(SUB FOR AR51796) (SUB RE37089 AND RE37091, THIS APPLICATION)
..	AR49543	1	COVER	(SUB RE37089 AND RE37091, THIS APPLICATION)
..	AR34612	1	GASKET KIT	OVERHAUL GASKET, (SUB FOR AR51713)

FUEL INJECTION PUMP ELECTRIC SHUT-OFF (ROOSA-MASTER NO. JDB331AL2406 OR JDB331MD2406) [01D19]

Нет текстового описания
