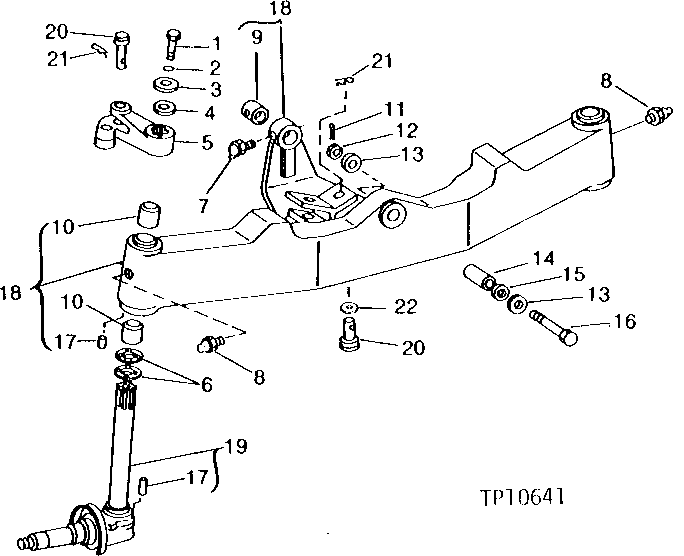

FRONT AXLE, SPINDLE AND KNUCKLE ASSEMBLY (SERIAL NO. 237998- ) [01H11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1439	2	CAP SCREW	5/8" X 3"
2	12H294	2	Lock Washer	5/8"
3	R20135	2	Washer	-
4	R52383	4	THRUST WASHER	-
5	T71748	1	STEERING ARM	R.H. (SUB FOR T54444 AND T66936) (SUB T77736) (ALSO ORDER AT76136, AS REQUIRED)
5	T54445	1	ARM	L.H. (SUB T77737) (ALSO ORDER AT76136, AS REQUIRED)
6	R49838	4	Washer	-
7	JD7799	1	Lubrication Fitting	1/8" 90°
8	T162396	2	Lubrication Fitting	(SUB FOR JD7798) 1/8" STRAIGHT
9	T23170	1	BUSHING	-
10	R49835	4	Bushing	-
11	11M7030	1	Cotter Pin	5 X 40 MM
12	14H534	1	NUT	3/4", (SUB FOR 14H902)
13	T25922	2	WASHER	(USE IF AVAILABLE)
13	T151797	2	Washer	(SUB FOR T25922 OR T134960)
14	T21669	1	BUSHING	-
15	T25921	6	SHIM	.38 MM (.015")
16	T25840	1	CAP SCREW	-
17	34H308	3	Spring Pin	1/4" X 1/2"
18	AT63366	1	FRONT AXLE	(LIFETIME SUPPLY) (MARKED T66815) (SUB FOR AT46784) (MARKED T48221)
19	AT76758	2	KNUCKLE	(SUB FOR AT46785) (ALSO ORDER AT76136, AS REQUIRED)
20	T48225	2	PIN FASTENER	-
21	11M7087	2	Cotter Pin	4 X 40 MM
22	24H448	1	Washer	25/32" X 1-1/8" X 0.090"

FRONT AXLE, SPINDLE AND KNUCKLE ASSEMBLY (SERIAL NO. 237998- ) [01H11]
