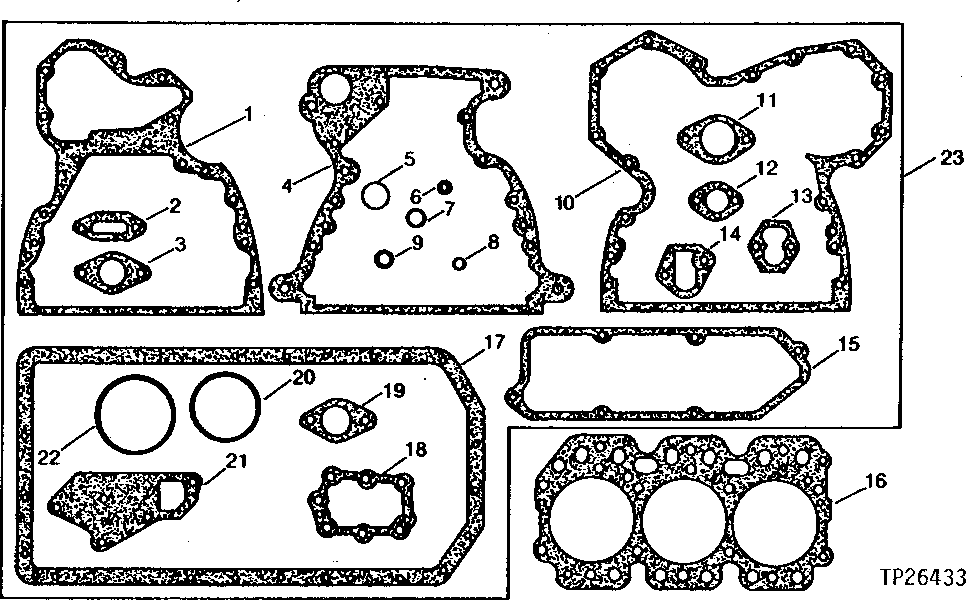

ENGINE OVERHAUL GASKET SET (DIESEL) [02C12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R131794	1	Gasket	(SUB FOR R90648)
2	R97352	1	Gasket	(SUB FOR T20336)
3	T20215	1	GASKET	-
4	R97351	1	Gasket	(SUB FOR R49516, THIS APPLICATION) (SUB FOR R70483)
5	T20328	1	Gasket	-
6	T20304	1	WASHER	-
7	T13213	1	WASHER	-
8	R27166	1	O-Ring	(SUB FOR R27166, THIS APPLICATION)
9	R56463	1	O-Ring	(SUB FOR R495R, THIS APPLICATION)
10	R121314	1	Gasket	(SUB FOR T20155 OR R97454 OR R119269)
11	R81275	1	Gasket	(SUB FOR T20159, THIS APPLICATION)
12	T20219	1	GASKET	-
13	R520618	1	Gasket	(SUB FOR R97350, R27285)
14	R69260	1	GASKET	(SUB FOR T20364)
15	AR102261	1	GASKET	(SUB FOR T20111) (ALSO ORDER (6) AR103811 CAP SCREWS WITH WASHERS)
16	R80241	1	GASKET	(USE IF AVAILABLE) (SUB FOR R59447)
16	R97356	1	ENGINE CYLINDER HEAD GASKET	(SUB FOR R80241)
17	R97341	1	Gasket	(SUB FOR R49514)
18	T20273	1	GASKET	-
19	R90658	3	Gasket	(SUB FOR T20006) (ALL T20006 GASKETS MUST BE REPLACED AT THE SAME TIME. DO NOT MIX T20006 AND R90658)
20	R70956	1	Washer	(SUB FOR R55434)
21	T20243	1	Gasket	-
22	R48768	3	WASHER	-
23	RE16912	1	GASKET KIT	(SUB FOR AR102298) (ALSO ORDER (3) AR71618, (6) AR103811, (3) R48000 AND (3) RE32011)
23	RE37492	1	Gasket Kit	(SUB FOR RE16912) (ALSO ORDER (3) AR71618, (6) AR103811, (3) R48000 AND (3) RE32011)
23	RE501578	1	GASKET KIT	(SUB FOR RE38853) (ALSO ORDER (3) AR71618, (6) AR103811, (3) R48000 AND (3) RE32011)

ENGINE OVERHAUL GASKET SET (DIESEL) [02C12]

Нет текстового описания
