Открытый узел

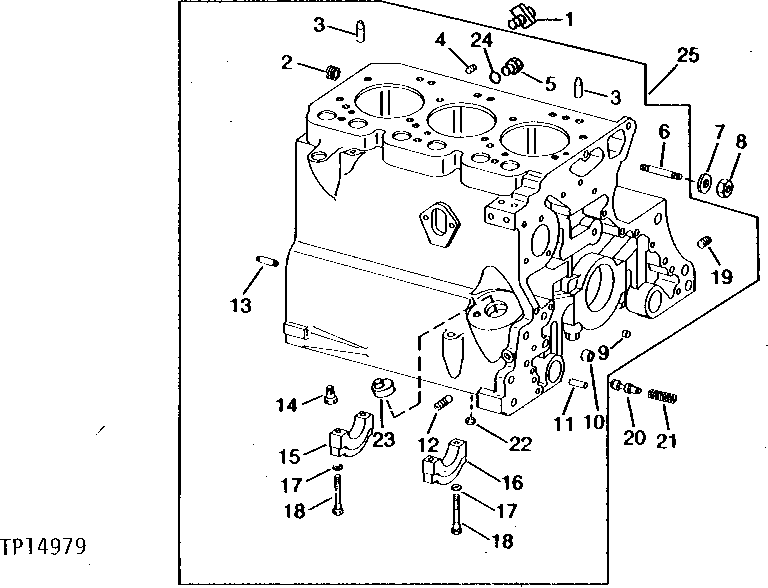

CYLINDER BLOCK (SERIAL NO. 169358- ) [01A22]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T29388	1	Union Fitting	(WITH ENGINE COOLANT HEATER) (SUB FOR T29381) (ALSO ORDER 15H613)
1	AT13740	1	Drain Valve	(WITHOUT ENGINE COOLANT HEATER)
2	15H690	1	Pipe Plug	3/4"
2	T37027	1	FITTING	(WITH CAB)
2	15H562	1	Pipe Plug	1"
3	R48685	2	Dowel Pin	(SUB FOR R26241, THIS APPLICATION)
4	15H275	1	Pipe Plug	1/4", (WITHOUT ENGINE COOLANT HEATER)
4	T29388	1	Union Fitting	(WITH ENGINE COOLANT HEATER)
5	R39741	1	Drain Plug	(WITHOUT ENGINE COOLANT HEATER)
6	R122226	2	Stud	(SUB FOR R122226)
6	T25701	1	Stud	-
7	12H304	3	Lock Washer	3/8"
8	14H1076	3	Nut	3/8"
9	T18891	2	Plug	-
10	R26493	1	Bushing	-
11	R26650	2	Dowel Pin	-
12	15H666	1	Pipe Plug	3/8"
13	R48685	2	Dowel Pin	(SUB FOR A120R)
14	R54802	3	Orifice	-
14	22H932	3	SET SCREW	5/16" X 3/8"
15	R79089	1	Cap	(SUB FOR AR82295)
16	R65215	3	Bearing Cap	(SUB FOR AR82294)
17	T20168	8	Washer	-
18	T23474	8	Cap Screw	-
19	15H558	4	Pipe Plug	1/8", (SUB FOR RE12310)
20	R73139	1	Flow Control Hyd. Valve	(USE WITH BLOCK MARKED R72965)
21	R46625	1	SPRING	(USE WITH BLOCK MARKED R72965)
22	R75892	1	O-Ring	(OIL PUMP TUBE)
23	T23435	1	Threaded Nipple	-
24	U13639	1	O-Ring	(WITHOUT ENGINE COOLANT HEATER)
25	RE19841	1	CYLINDER BLOCK	BLOCK, CYLINDER, WITH MAIN BEARING CAPS, OIL FILTER NIPPLE, PIPE PLUGS, DOWEL PINS, STUDS, CAP SCREWS, PISTON COOLING ORIFICES, WASHERS AND OIL PRESSURE RELIEF VALVE BUSHINGS, (MARKED R80408) (DIESEL)
..	RE19842	1	SHORT BLOCK ASSEMBLY	BLOCK ASSEMBLY, SHORT, COMPLETE, WITH CYLINDER BLOCK ASSEMBLY, CRANKSHAFT, TAPPETS, PISTONS, CONNECTING RODS, CYLINDER LINERS, FRONT PLATE, FRONT PLATE SET SCREWS, PIPE PLUG, RELIEF VALVE SPRING, PUMP OUTLET TUBE, BYPASS VALVE AND BYPASS SPRING, (DIESEL)
..	-	1	Part 33	(GASOLINE)(NO LONGER AVAILABLE)

CYLINDER BLOCK (SERIAL NO. 169358- ) [01A22]

Нет текстового описания
