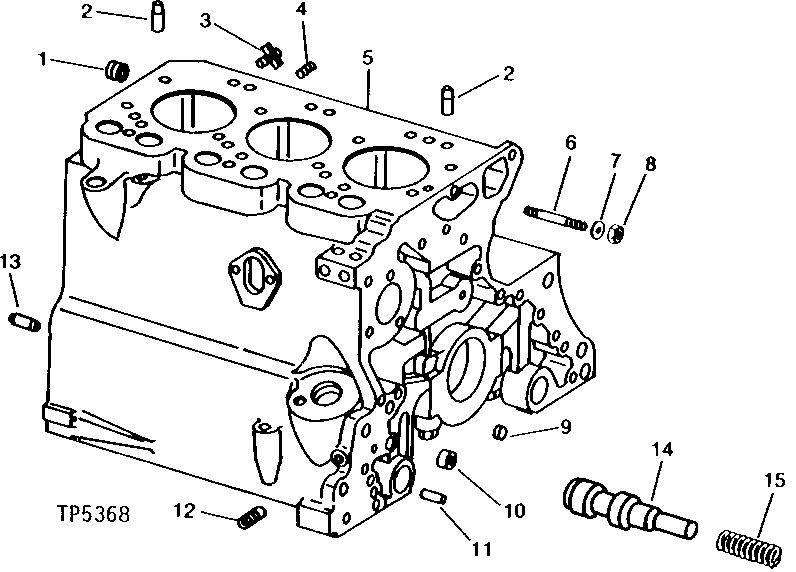

CYLINDER BLOCK (SERIAL NO. -169357) [01A20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T37027	1	FITTING	(WITH CAB)
1	15H562	1	Pipe Plug	1"
1	15H690	1	Pipe Plug	3/4"
2	R48685	2	Dowel Pin	(SUB FOR R26241, THIS APPLICATION)
3	AT13740	1	Drain Valve	(WITHOUT ENGINE COOLANT HEATER)
3	T29388	1	Union Fitting	(WITH ENGINE COOLANT HEATER) (ALSO ORDER 15H613 ELBOW) (SUB FOR T29381)
4	15H275	1	Pipe Plug	1/4"
4	T29388	1	Union Fitting	(WITH ENGINE COOLANT HEATER)
5	-	1	Part 9	(DIESEL) (SUB RE19841)
5	-	1	Part 10	(GASOLINE)(NO LONGER AVAILABLE)
6	T25701	1	Stud	-
6	R122226	2	Stud	(SUB FOR R122226)
7	12H304	3	Lock Washer	3/8"
8	14H812	3	NUT	3/8"
9	T18891	2	Plug	-
10	R26493	1	Bushing	OIL PRESSURE RELIEF VALVE
11	R26650	2	Dowel Pin	-
12	15H623	1	Pipe Plug	3/8"
13	R48685	2	Dowel Pin	(SUB FOR A120R)
14	R73139	1	Flow Control Hyd. Valve	(USE WITH BLOCK MARKED R72965)
15	R46625	1	SPRING	(USE WITH BLOCK MARKED R72965)
..	-	1	Part 22	(DIESEL) (SUB RE19842, (14) R53223 AND R81513)
..	-	1	Part 23	(GASOLINE)(NO LONGER AVAILABLE)
