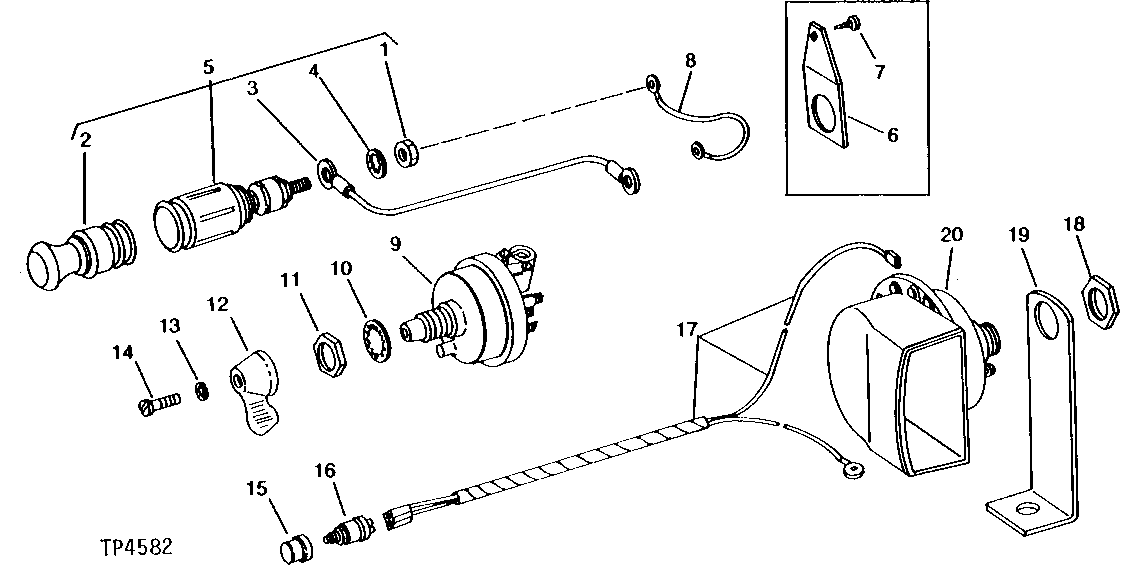

CIGAR LIGHTER, LIGHT SWITCH AND ELECTRIC HORN [02B11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H605	1	Nut	0.164", (USE WITH AU41461)
2	AR60937	1	Electrical Lighter	(SUB FOR AT26407)
3	-	1	Part 3	305 MM (12") (MAKE FROM R32007, R32018, R32025 AND R32027 FROM AR84006 WIRE REPAIR KIT) (USE WITH AU41461)
3	AT78634	1	Wiring Lead	(USE WITH AT78633)
4	12M7084	1	Lock Washer	4.300 MM, (USE WITH AU41461)
5	AR48643	1	ELECTRICAL LIGHTER	(12-VOLT) (SUB FOR AR34556)
5	AT78633	1	Housing	(12-VOLT) (ALSO ORDER AT78634) (SUB FOR AU41461, THIS APPLICATION)
6	T34047	1	PLATE	-
7	37H43	1	Screw	NO. 8 X 3/8"
8	-	1	Part 10	203 MM (8") LONG (MAKE FROM 330 MM (13") R32008, R32019, AND R32021 FROM AR84006 LEAD WIRE KIT) (SUB FOR T33737)
8	T56145	1	WIRING LEAD	-
9	AR66478	1	SWITCH	-
9	AR28401	1	SWITCH	-
10	12H292	1	Lock Washer	1/2"
11	A4655R	1	Nut	-
12	A4653R	1	KNOB	-
12	AR66799	1	Knob	-
13	12H315	1	Lock Washer	0.164"
14	21H973	1	Screw	0.164" X 3/8"
15	T55501	1	Cap	(SUB FOR AR47374, THIS APPLICATION)
16	R39554	1	Switch	(SUB FOR AR47373)
17	AT32859	1	WIRING HARNESS	-
18	R11278	1	Nut	-
19	T21883	1	BRACKET	-
20	AT39043	1	High Note Horn	(SUB FOR R11276)

CIGAR LIGHTER, LIGHT SWITCH AND ELECTRIC HORN [02B11]
