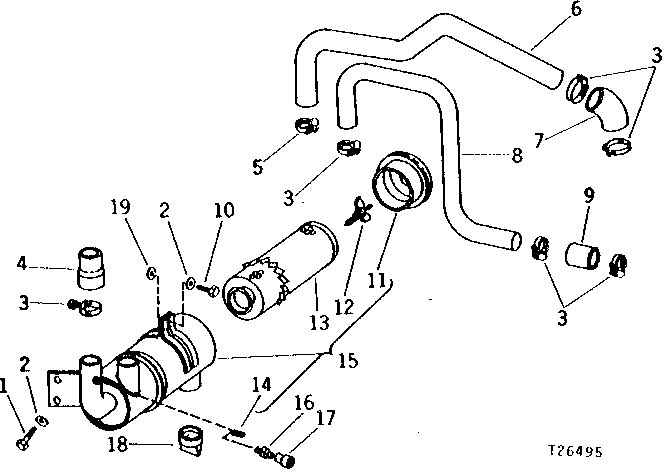

AIR CLEANER AND RESTRICTION INDICATOR [01C02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2021	2	Cap Screw	3/8" X 5/8"
2	12H304	3	Lock Washer	3/8"
3	AR21999	3	Hose Clamp	(DIESEL)
3	AR21999	4	Hose Clamp	(GASOLINE)
4	T23084	1	HOSE	(GASOLINE)
4	T31144	1	HOSE	(DIESEL)
5	AR21841	1	Clamp	(DIESEL)
6	T33169	1	PIPE	(DIESEL) (SUB FOR AT30989)
7	T11586	1	HOSE	(DIESEL)
8	-	1	Part 10	(GASOLINE) ( T31978 - NO LONGER AVAILABLE) (SUB FOR AT30988)
9	R56551	1	Hose	(GASOLINE) (SUB FOR T21703)
10	19H2284	1	Cap Screw	3/8" X 7/8"
11	AT81398	1	COVER	(SUB AT24438)
12	AT24437	1	WING SCREW	-
13	AT20728	1	FILTER ELEMENT	-
14	15H638	1	Pipe Plug	1/8", WITHOUT RESTRICTION INDICATOR
15	AL28179	1	AIR CLEANER	(SUB FOR AT20727, THIS APPLICATION)
16	AR44361	1	Fitting	-
17	AT25983	1	Air Restriction Indicator	(DIESEL)
17	AT26536	1	AIR RESTRICTION INDICATOR	(GASOLINE)
18	T23263	1	Valve	(MADE IN GERMANY)
19	M1335T	1	WASHER	-
..	-	1	Part 23	(DIESEL) ( AT23508 - NO LONGER AVAILABLE)
..	-	1	Part 24	(GASOLINE) ( AT23506, NO LONGER AVAILABLE)

AIR CLEANER AND RESTRICTION INDICATOR [01C02]

Нет текстового описания
