Открытый узел

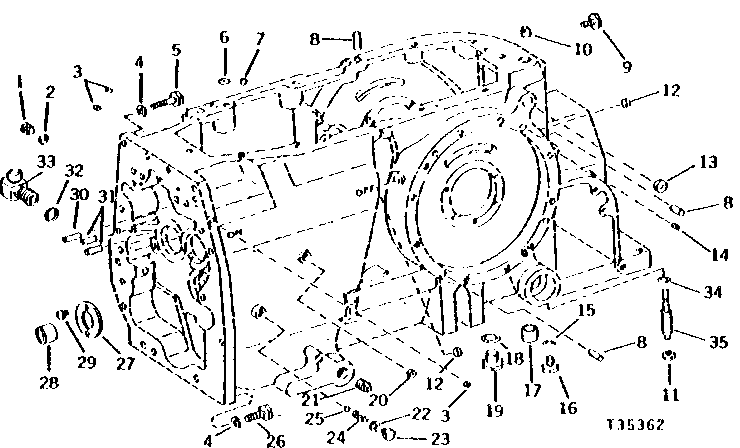

TRANSMISSION CASE BUSHINGS, DOWEL PINS AND PLUGS [01F10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R39112	1	Fitting	(WITHOUT HYDRAULIC PUMP)
2	R26375	1	O-Ring	(WITHOUT HYDRAULIC PUMP)
3	M1102T	3	PLUG	-
4	T20168	11	Washer	(SUB FOR M2834T)
5	19H2735	2	Cap Screw	1/2" X 2"
6	T17882	2	WASHER	-
7	R26552	1	Ball	(MANUAL STEERING)
8	R48685	6	Dowel Pin	(SUB FOR A120R)
9	19H2367	1	Cap Screw	5/8" X 3/4", (CENTER LINK BRACKET STUD HOLE) (WITHOUT ROCKSHAFT)
10	15H562	1	Pipe Plug	1" (PARK BRAKE ADJUSTING HOLE)
11	14H971	1	NUT	1/2", (WITH PARKING BRAKE)
12	T18891	2	Plug	(DIFFERENTIAL LOCK SHIFTER SHAFT REAR HOLES)
13	T21937	1	Plug	(WITHOUT PARKING BRAKE)
14	15H584	1	Pipe Plug	1/2" (PARK BRAKE BAND AND PIN HOLE)
15	R27003	1	Washer	(WITHOUT PARKING BRAKE)
16	19H2351	1	Cap Screw	1/2" X 1/2", (PARK BRAKE ABAND ADJUSTING SCREW HOLE) (WITHOUT PARKING BRAKE)
17	T21671	1	BUSHING	-
18	A4827R	2	Washer	-
19	R26727	2	DRAIN PLUG	-
20	T18891	1	Plug	(WITHOUT REAR PTO)
21	15H562	1	Pipe Plug	1"
22	R27003	1	Washer	(WITHOUT REAR PTO)
23	19H2351	1	Cap Screw	1/2" X 1/2", (WITHOUT REAR PTO)
24	T27716	1	Compression Spring	(WITH REAR PTO)
25	R26552	1	Ball	5/16" (WITH REAR PTO)
26	19H2993	6	Cap Screw	1/2" X 1-1/2"
27	T28668	1	THRUST WASHER	(SUB FOR T22217) (WITH DUAL 540-1000 RPM PTO OR SINGLE 540 RPM PTO WITH MID PTO)
28	T22128	1	BUSHING	(WITHOUT INDEPENDENT PTO)
28	T22128	2	BUSHING	(WITH INDEPENDENT PTO)
29	37H44	2	Screw	0.154" X 3/8", (WITH DUAL 540-1000 RPM PTO OR SINGLE 540 RPM PTO WITH MID PTO)
30	T26565	2	Dowel Pin	-
31	T24729	2	Bushing	-
32	R26375	1	O-Ring	(WITH PTO DRIVEN MOWER)
33	M42830	1	Elbow Fitting	(SUB FOR AR26635) (WITH PTO DRIVEN MOWER)
34	R27490	1	O-Ring	(WITH PARKING BRAKE)
35	T21776	1	SCREW	(WITH PARKING BRAKE)

TRANSMISSION CASE BUSHINGS, DOWEL PINS AND PLUGS [01F10]
