SINGLE AND DUAL SELECTIVE CONTROL VALVE BREAKAWAY PLUG AND COUPLER [01I16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

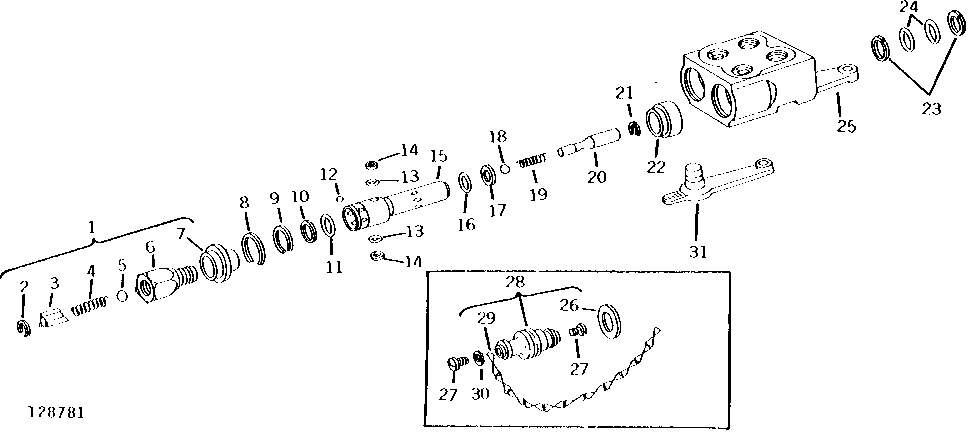

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR93820	2	Hydr. Quick Coupler Plug	(SUB FOR AR30210 AND AR47643, THIS APPLICATION)
2	R59633	2	WEAR RING	(SUB FOR R28204) (SUB AR93820, THIS APPLICATION)
3	R28085	2	GUIDE	(SUB AR93820, THIS APPLICATION)
4	R28084	2	SPRING	(SUB AR93820, THIS APPLICATION)
5	D2361R	2	Ball	(SUB AR93820, THIS APPLICATION)
6	R45630	2	HYD. QUICK-CONNECT COUPLER	(SUB FOR R27430, THIS APPLICATION) (SUB AR93820, THIS APPLICATION)
7	R28006	2	CAP	(NOT INCLUDED IN AR93820)
8	R34399	2	Snap Ring	-
9	R32356	2	SNAP RING	-
10	R26485	2	BACK-UP RING	-
11	R495R	2	O-Ring	-
12	400R	12	Ball	-
13	A3917R	4	O-Ring	-
14	R26484	4	Back-Up Ring	-
15	R34397	2	SOCKET OUTLET	-
16	R375R	2	O-Ring	-
17	R26482	2	Ring	-
18	D2361R	2	Ball	-
19	R28084	2	SPRING	-
20	R34400	2	PLUG	-
21	R26483	2	SNAP RING	-
22	R34398	2	SLEEVE	-
23	R26480	4	BACK-UP RING	-
24	A4730R	4	O-Ring	-
25	AR52621	1	COUPLING	(MARKED R39109) (SUB FOR AR48296)
26	R34589	2	WASHER	-
27	37H97	4	SCREW	0.242" X 3/4"
28	AR52623	2	PLUG	(WITH CHAIN) (SUB FOR AR34059)
29	R49193	2	Link Chain	(SUB FOR R45619)
30	24H1286	1	Washer	9/32" X 1/2" X 1/16"
31	R32419	2	COVER	-
..	AR39036	1	BREAKAWAY COUPLER	(R.H. WITH ELBOW)

SINGLE AND DUAL SELECTIVE CONTROL VALVE BREAKAWAY PLUG AND COUPLER [01I16]
