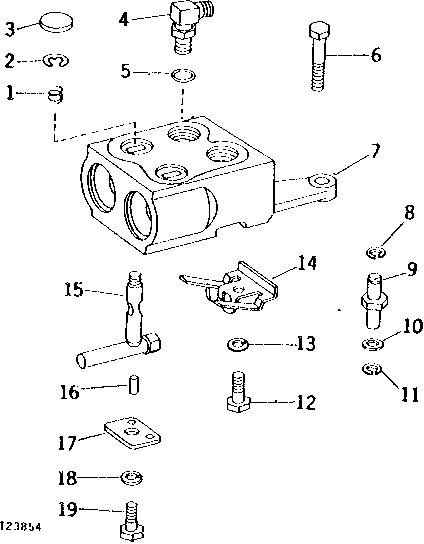

SINGLE AND DUAL SELECTIVE CONTROL VALVE BODY AND OPERATING LEVER [01I15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R31890	2	Spring	-
2	R72653	2	Snap Ring	(SUB FOR M2396T)
3	30H15	2	PLUG	1-1/8"
4	AT32332	2	Elbow Fitting	(SUB FOR AR26763) (WITHOUT PTO DRIVEN MOWER)
4	AT32332	1	Elbow Fitting	(SUB FOR AR26763) (WITH PTO DRIVEN MOWER)
4	AT35120	1	Elbow Fitting	(SUB FOR AR37017 AND AT32337) (WITH PTO DRIVEN MOWER)
5	R26375	2	O-Ring	-
6	19H2735	2	Cap Screw	1/2" X 2"
7	AR52621	1	COUPLING	(MARKED R39109) (SUB FOR AR48296)
8	12H303	1	Lock Washer	5/16", (USE WITH R49191)
9	R49191	1	STUD	-
10	24H1283	1	Washer	7/32" X 1/2" X 0.049", (USE WITH R49191)
11	R72654	1	Snap Ring	(SUB FOR R27507) (USE WITH R49191)
12	19H2664	1	Cap Screw	5/16" X 3/4", (USE WITH R45618)
13	12H303	1	Lock Washer	5/16", (USE WITH R45618)
14	R45618	1	CLIP	(SUB R49191, 24H1283, 12H303 AND R72654)
15	AR33877	2	LEVER	(WITH PIN)
16	34H244	2	SPRING PIN	1/8" X 9/16", (USE WITH R41494)
17	AR75958	1	CAM	(SUB FOR R41494 AND R51285)
18	12H303	1	Lock Washer	5/16"
19	19H1900	1	Cap Screw	5/16" X 3/4"
..	AR39036	1	BREAKAWAY COUPLER	(R.H. WITH ELBOW)

SINGLE AND DUAL SELECTIVE CONTROL VALVE BODY AND OPERATING LEVER [01I15]

Нет текстового описания
