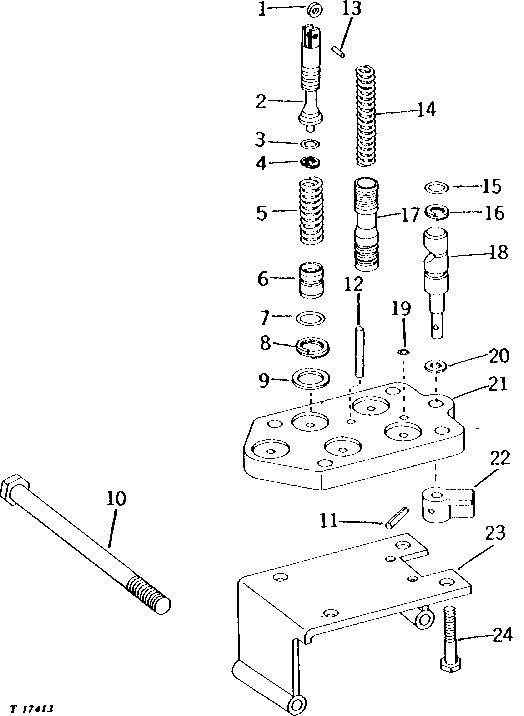

SELECTIVE CONTROL VALVE POPPET, METERING AND FLOW CONTROL VALVES [01I09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R51409	4	SPACER	(SUB FOR R41613)
2	AR56120	4	VALVE	(WITH STEM) (SUB FOR AR45647 AND AR52629)
3	A3917R	1	O-Ring	(SUB FOR R65286) (4 USED PRESSURE VALVE) (2 USED RETURN VALVE)
4	R26484	1	Back-Up Ring	(4 USED PRESSURE VALVE) (2 USED RETURN VALVE)
5	R65501	2	Spring	(SUB FOR R41055, THIS APPLICATION)
5	R65502	2	Spring	(SUB FOR R41055)
6	R41156	4	GUIDE	-
7	R27166	4	O-Ring	-
8	R41057	4	BACK-UP RING	-
9	R26149	6	PACKING	-
10	19H2224	2	CAP SCREW	(1/2" X 4-3/4")
11	34H231	1	SPRING PIN	3/32" X 3/4"
12	34H284	1	Spring Pin	3/16" X 1-1/4"
13	34H242	4	Spring Pin	1/8" X 7/16"
14	R41549	1	SPRING	-
15	P46051	1	O-Ring	-
16	R40937	1	Back-Up Ring	-
17	R52549	1	SHUT-OFF VALVE	(SUB FOR R41154)
18	R41333	1	VALVE	(SUB R52547, R52549 AND AR52394) (VALVE DETENT KIT)
18	R41333	1	VALVE	(SUB R52547 AND R52549)
18	R52547	1	VALVE	-
19	R34812	1	O-Ring	-
20	R41339	1	Shim	-
21	AR40688	1	COVER	(WITH BALLS)
22	R62652	1	Arm	(SUB FOR R41338)
23	AR39162	1	BRACKET	-
24	19H2633	4	Cap Screw	3/8" X 1-1/2"

SELECTIVE CONTROL VALVE POPPET, METERING AND FLOW CONTROL VALVES [01I09]
