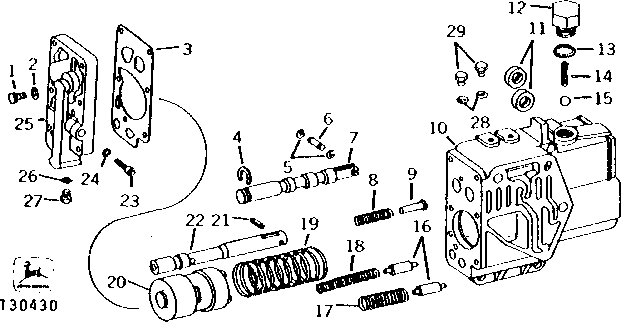

REVERSER CLUTCH CONTROL VALVE AND PISTON ASSEMBLY [01E18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2932	6	Screw	1/4" X 1"
2	24H1286	6	Washer	9/32" X 1/2" X 1/16"
3	R72874	1	GASKET	(SUB FOR R39159)
4	F3366R	1	SNAP RING	-
5	R72654	2	Snap Ring	(SUB FOR R27507)
6	R31319	1	PIN	-
7	R39150	1	VALVE	-
7	T39520	1	VALVE	-
8	R39137	1	SPRING	-
9	R39140	1	PIN FASTENER	-
10	R39144	1	HOUSING	(SUB R54579, (2) R27216 AND (2) R26287)
10	R49255	1	HOUSING	(SUB R54579, (2) R27216 AND (2) R26287)
10	RE50940	1	HOUSING	(CONTAINS RE46350 HOUSING, R108837 VALVE, R112889 PLUG, R33259 ORING, AND R89476 SPRING) (SUB FOR R54579 ALSO ORDER RE50941 PLATE AND R107207 GASKET) (SUB FOR RE46350)
11	AR39043	2	SEAL	-
12	R39164	1	PLUG	-
13	R26906	1	O-Ring	-
14	R33277	1	SPRING	-
15	D2361R	1	Ball	-
16	R39294	2	PIN	-
17	F3322R	1	SPRING	-
18	R39133	1	SPRING	-
19	R39229	1	SPRING	-
20	R63364	1	PISTON	(SUB FOR R39131)
21	34H310	1	Spring Pin	1/4" X 3/4"
22	R39149	1	VALVE	-
23	R34028	1	Bolt	-
24	R87627	1	O-RING	(SUB FOR R27976, THIS APPLICATION)
25	R39158	1	COVER	(SUB FOR AR39096)
26	R26287	1	O-Ring	-
27	R27216	1	DRAIN PLUG	(SUB FOR R31631)
28	R26287	2	O-Ring	-
29	R27216	2	DRAIN PLUG	(SUB FOR R31631)

REVERSER CLUTCH CONTROL VALVE AND PISTON ASSEMBLY [01E18]

Нет текстового описания
