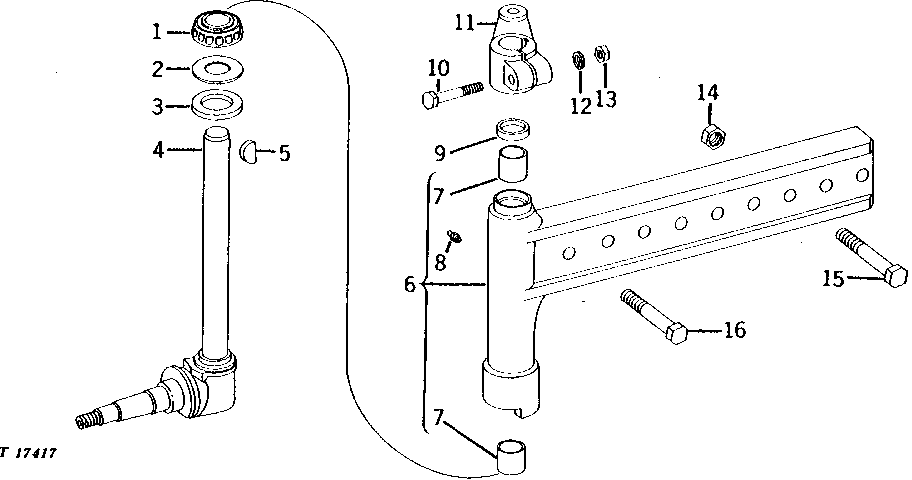

REGULAR FRONT AXLE KNEE, SPINDLE AND KNUCKLE ASSEMBLY [01J11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD8407	2	THRUST BEARING	-
2	M2283T	2	WASHER	-
3	M2282T	2	WASHER	-
4	AT19799	2	KNUCKLE	11-3/4", (SUB AR52861) (SWEPT BACK AND STRAIGHT)
4	AR52861	2	KNUCKLE	11-3/4", (SWEPT BACK AND STRAIGHT)
4	AR52862	2	KNUCKLE	9-3/4", (SWEPT BACK)
5	26H93	2	Shaft Key	1/4" X 1-1/4"
6	AT22238	1	AXLE KNEE	R.H. (STRIGHT) (MARKED T21837) (SUB T162396, (2) T21539, T21837)
6	AT22279	1	AXLE KNEE	R.H. (MARKED T21942) (SWEPT BACK) (NO LONGER AVAILABLE, ORDER T162396, (2) T21539 AND T21942)
6	AT22221	1	AXLE KNEE	R.H. (MARKED T21511) (SWEPT BACK)
6	AT22239	1	AXLE KNEE	L.H. (STRAIGHT) (MARKED T21838) (SUB T162396, (2) T21539 AND T21838)
6	AT22280	1	AXLE KNEE	L.H. (MARKED T21943) (SWEPT BACK)
6	AT22222	1	AXLE KNEE	L.H. (MARKED T21512) (SWEPT BACK)
7	T21539	4	BUSHING	-
8	T162396	2	Lubrication Fitting	1/8", (SUB FOR JD7798)
9	M1518T	2	WASHER	-
10	19H1930	2	Cap Screw	1/2" X 2-1/2"
11	T21618	1	LEVER	R.H. (STRAIGHT)
11	T21517	1	LEVER	R.H. (SWEPT BACK)
11	T21619	1	LEVER	L.H. (STRAIGHT)
11	T21518	1	LEVER	L.H. (SWEPT BACK)
12	12H301	2	Lock Washer	1/2"
13	14H1040	2	Nut	1/2", (SUB FOR 14H809)
14	14H794	4	Nut	3/4"
15	19H2827	2	Cap Screw	3/4" X 4-3/4"
16	19H2826	2	Cap Screw	3/4" X 4-1/2"

REGULAR FRONT AXLE KNEE, SPINDLE AND KNUCKLE ASSEMBLY [01J11]
