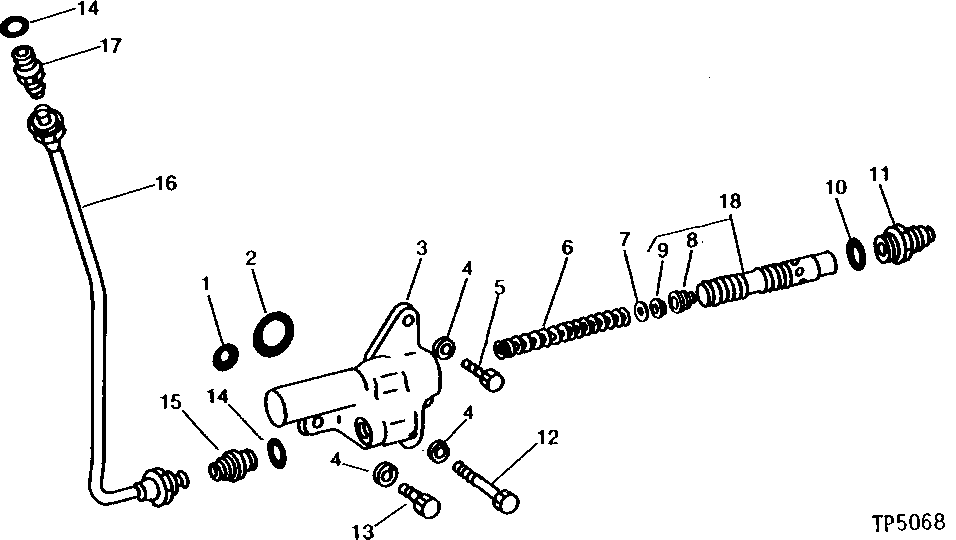

PRESSURE CONTROL VALVE (WHEN EQUIPPED WITH 23 CM3 (1.38 IN.3) HYDRAULIC PUMP AND POWER STEERING) [01I04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R28776	1	O-Ring	-
2	R60332	1	O-RING	(SUB FOR U15415, THIS APPLICATION) (USE WITH R39273)
3	R66083	1	HOUSING	(SUB FOR R39273) (ALSO ORDER R26375, R66084, L55202 AND T13119)
4	12H304	3	Lock Washer	3/8"
5	19H2633	1	Cap Screw	3/8" X 1-1/2"
6	R40072	1	SPRING	-
7	R33521	2	Shim	0.76 MM (.030")
8	R40562	1	APERTURE	-
9	-	1	Part 9	(SUB AR65882)
10	R26906	1	O-Ring	-
11	R31665	1	Fitting	-
12	19H2458	1	Cap Screw	3/8" X 3"
13	19H3483	1	Cap Screw	3/8" X 1-1/8"
14	R26375	2	O-Ring	-
15	R27237	1	Fitting	(WITH SELECTIVE CONTROL VALVE OR WITH PTO DRIVEN MOWER)
15	R39112	1	Fitting	(WITHOUT SELECTIVE CONTROL VALVE OR WITHOUT PTO DRIVEN MOWER)
16	AT28578	1	LINE	-
17	R27237	1	Fitting	-
18	AR65882	1	CONTROL VALVE	(SUB FOR R48528) (WITH ORIFICE AND WASHER)
19	T13119	1	O-Ring	(USE WITH R66083)
20	L55202	1	Back-Up Ring	(USE WITH R66083) (SUB FOR R66085)
21	R66084	1	FITTING	(USE WITH R66083)
22	R26375	1	O-Ring	(USE WITH R66083)

PRESSURE CONTROL VALVE (WHEN EQUIPPED WITH 23 CM3 (1.38 IN.3) HYDRAULIC PUMP AND POWER STEERING) [01I04]
