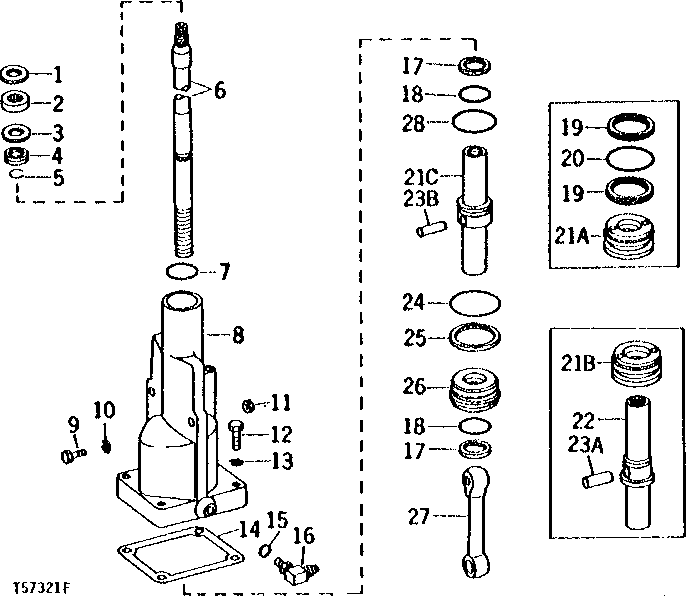

POWER STEERING VALVE HOUSING AND SHAFT [01G20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T25329	1	WASHER	-
2	JD9832	1	THRUST BEARING	-
3	T21716	1	WASHER	-
4	T22824	1	BUSHING	-
5	R35226	1	SNAP RING	-
6	R57446	1	STEERING SHAFT	(SUB FOR T34332) (ALSO ORDER T13555 SPRING AND L29197 WASHER) (SEE PAGE 45-2)
7	T25335	6	O-RING	(B)
8	RE10800	1	HOUSING	(WITH BALLS) (MARKED R77312) (SUB FOR AT23175, MARKED T25295)
9	19H2705	2	Cap Screw	5/16" X 1"
10	12H303	2	Lock Washer	5/16"
11	14H785	2	Nut	5/16"
12	19H3065	4	Cap Screw	3/8" X 2"
13	12H304	4	Lock Washer	3/8"
14	R98910	1	GASKET	(B) (SUB FOR T25337)
15	R26448	1	O-Ring	(B)
16	AT35121	1	Elbow Fitting	(SUB FOR AR26725)
17	T25327	2	BACK-UP RING	(B)
18	U10289	2	O-Ring	(B)
19	T25326	2	BACK-UP RING	(B) (NOT USED WHEN R57292 AND R57293 HAVE BEEN INSTALLED)
20	F3450R	1	O-Ring	(NOT USED WHEN R57292 AND R57293 HAVE BEEN INSTALLED)
22	T34331	1	ROD	(SUB R60945 AND R60946)
24	R86192	1	O-RING	(B) (SUB FOR U12331)
25	R78823	1	BACK-UP RING	(B) (SUB FOR R35684, THIS APPLICATION)
26	T25336	1	GUIDE	-
27	T25324	1	TIE ROD ASSEMBLY	-
28	R57293	1	SEAL	(USED WHEN R57292 PISTON HAS BEEN INSTALLED AS A REPLACEMENT PART)
..	AT26188	1	KIT	-
21A	T25325	1	PISTON	(SUB R57292 AND R57293)
21B	R57292	1	PISTON	(SUB R60945 AND R60946) (USED WHEN R57293 HAS BEEN INSTALLED AS A REPLACEMENT PART)
21C	R60945	1	SHAFT	-
23A	T21655	1	PIN	(USE WITH T34331)
23B	R60946	1	Dowel Pin	(USE WITH R60945)

POWER STEERING VALVE HOUSING AND SHAFT [01G20]
