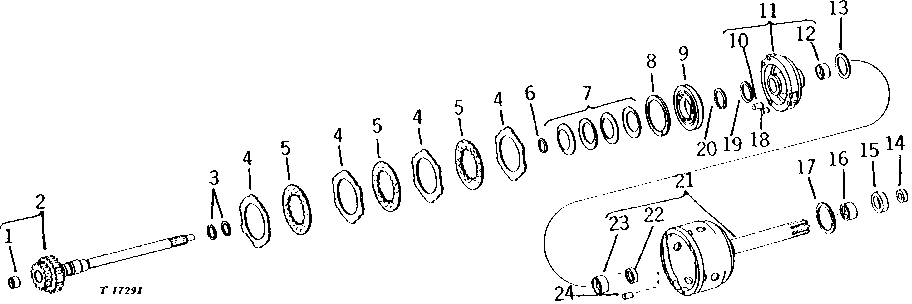

HI CLUTCH ASSEMBLY (WITH HI-LO SHIFT) [01E24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R39276	1	BUSHING	-
2	AR39174	1	DRIVE SHAFT	-
3	R26753	2	RING	-
4	R39259	4	CLUTCH PLATE	-
5	RE227812	3	CLUTCH DISK	(SUB FOR AR39128) (WITH FACING)
6	R39299	1	Snap Ring	-
7	R39282	4	DISK SPRING	-
8	R39280	1	Piston Ring	-
9	R39285	1	Piston	-
10	R56457	1	DOWEL PIN	(SUB FOR R39253, THIS APPLICATION)
11	AR56772	1	DRUM	(WITH BUSHING AND PIN) (SUB FOR AR39114)
12	R39252	1	BUSHING	-
13	R65392	1	WASHER	(SUB FOR R39281)
14	AL28037	1	BALL BEARING	(SUB FOR JD9464) (SUB FOR JD8511, THIS APPLICATION) (SUB FOR AL24903)
15	T22198	1	SEAL	-
16	L29343	1	BUSHING	(SUB FOR T28804)
17	R73701	1	WASHER	(SUB FOR T25409) (SUB FOR R65391, THIS APPLICATION)
18	R56457	2	DOWEL PIN	(SUB FOR R30587, THIS APPLICATION)
19	R65390	1	THRUST WASHER	(SUB FOR R39193)
20	R39304	1	Washer	-
21	AR39115	1	SHAFT	(WITH BUSHING AND OIL SEAL)
22	AR39117	1	SEAL	-
23	R39265	1	BUSHING	-
24	B2641R	1	DOWEL PIN	-
