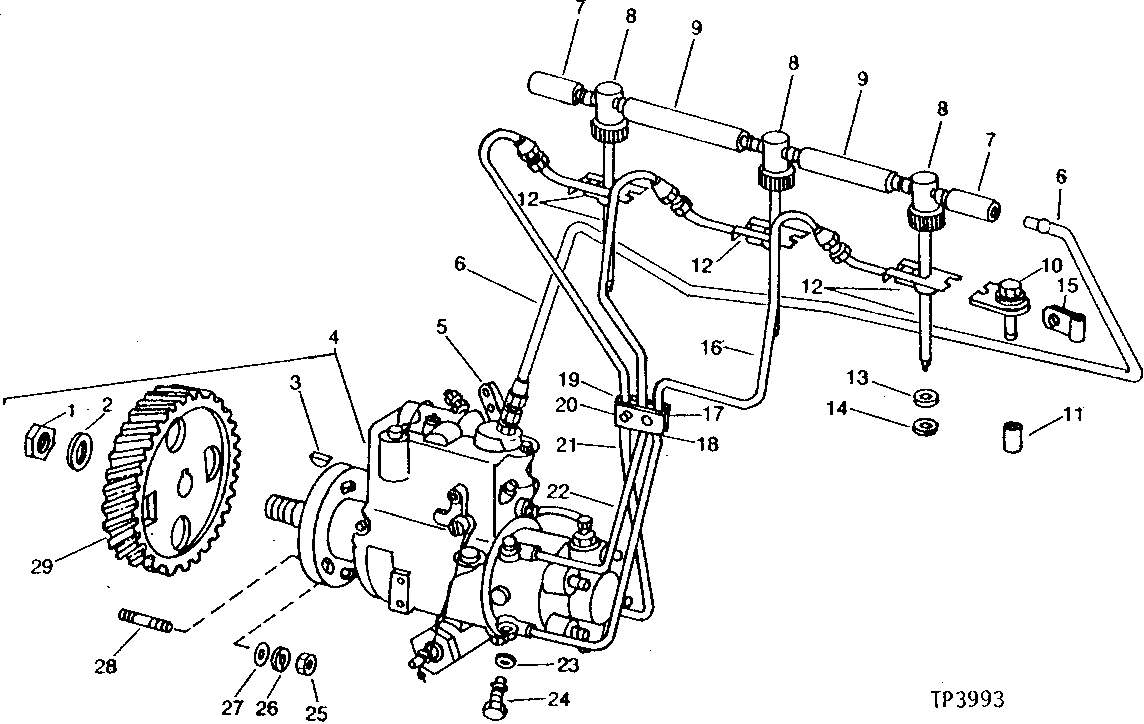

FUEL INJECTION SYSTEM (DIESEL) [01D02]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48599	1	NUT	-
2	R132874	1	Washer	(SUB FOR R48600)
3	26H10	1	Shaft Key	5/32" X 5/8"
4	AR49899	1	FUEL INJECTION PUMP	(ROOSA-MASTER NO. JDB331AL2405 OR JDB331MD2797)
4	SE500558	1	FUEL INJECTION PUMP	REMANUFACTURED
5	R35352	1	Fitting	-
6	AT27615	1	FUEL LINE	-
7	-	3	Part 8	(MAKE FROM R68281, 1 524 MM (5 FT.) HOSE) (SUB FOR AT32064)
8	AT27622	3	CAP	-
9	-	2	Part 10	(MAKE FROM R68281, 1 524 MM (5 FT.) HOSE) (SUB FOR AT32064)
10	R34760	3	CLAMP	(WITH SCREW AND WASHER)
11	R34761	3	SPACER	(K) (SUB RE32011)
12	AR49877	3	INJECTION NOZZLE	(SUB AR89564)
12	AR56290	3	INJECTION NOZZLE	(SUB AR89564)
12	AR73673	3	INJECTION NOZZLE	(SUB AR89564)
12	AR89564	3	INJECTION NOZZLE	(SUB FOR AR88239)
13	R34764	3	WASHER	(K) (NOZZLE UPPER) (USE WITH AR56290 AND AR89564) (SUB RE32011)
13	R60746	3	WASHER	(NOZZLE UPPER) (USE WITH AR73673 AND AR88239)
14	R48000	3	Seal	(NOZZLE LOWER)
15	T29969	1	Clamp	(NO. 3 MANIFOLD BOLT) (SUB FOR R47281)
16	AT18111	1	FUEL LINE	(NO. 3)
17	T23461	1	HALF CLAMP	(SUB R59298, R61145, (2) R59297 AND (2) AR76704)
17	R59297	1	Half Clamp	-
17	R61145	1	Strap	-
18	T23460	1	HALF CLAMP	(SUB R59298, R61145, (2) R59297 AND (2) AR76704)
18	R59297	1	Half Clamp	-
18	R59298	1	Strap	-
19	12H246	2	LOCK WASHER	0.190", (USE WITH T23460 AND T23461)
20	AR76704	2	SCREW	(WITH WASHER)
20	21H1162	2	SCREW	0.190" X 5/8", (USE WITH T23460 AND T23461)
21	AT18065	1	FUEL LINE	(NO. 1)
22	AT18099	1	FUEL LINE	(NO. 2)
23	T20055	6	WASHER	-
24	R26726	3	HOLLOW SCREW	-
25	14H812	2	NUT	3/8"
26	12H304	2	Lock Washer	3/8"
27	24M7096	2	Washer	0.413" X 0.709" X 0.063"
28	T20052	2	STUD	-
29	R84663	1	GEAR	(SUB FOR T20165) (48 TEETH)

FUEL INJECTION SYSTEM (DIESEL) [01D02]
