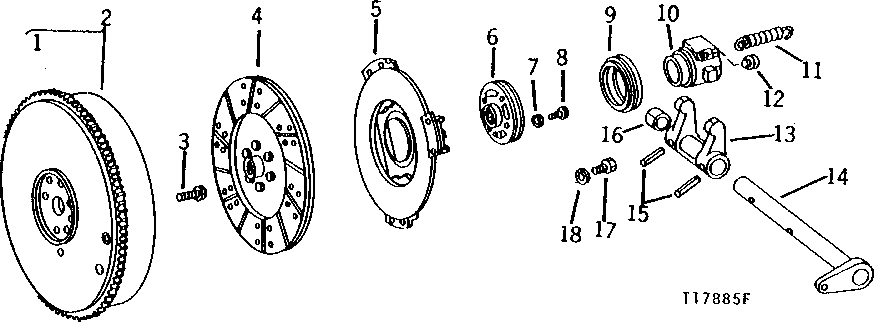

ENGINE CLUTCH AND FLYWHEEL (WITH INDEPENDENT PTO) (WITHOUT REVERSER) [01E01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20088	1	GEAR	(142 TEETH)
2	AT29754	1	FLYWHEEL	(WITH RING GEAR) (MARKED T30813)
3	19H2993	4	Cap Screw	HS, SAE 8, 1/2" X 1-1/2", (SUB FOR T20139) (SUB FOR R46162, THIS APPLICATION)
4	AR66925	1	DISK	(SUB FOR AT32209)
5	AR71587	1	PLATE	(GASOLINE) (SUB FOR AT30045) (ALSO ORDER AR43065 AND R51469)
5	AR100649	1	CLUTCH	(DIESEL) (SUB FOR AT30046, THIS APPLICATION) (SUB FOR AR76395)
5	RE22610	1	CLUTCH	(HEAVY-DUTY PTO DAMPER) (DIESEL)
6	AT29700	1	ABSORBER	(DIESEL)
7	24H1136	3	Washer	11/32" X 11/16" X 0.065", (DIESEL)
8	19H2020	3	Cap Screw	5/16" X 1/2", (DIESEL)
9	AR43065	1	THRUST BEARING	-
9	AT17464	1	THRUST BEARING	-
10	T23011	1	CRADLE	(SUB R51469 AND AR43065)
10	R51469	1	PLANET PINION CARRIER	-
11	T21450	1	EXTENSION SPRING	-
12	JD7797	1	Lubrication Fitting	1/4"
13	T21999	1	FORK	-
14	AT19837	1	SHAFT	-
15	34H353	2	SPRING PIN	3/8" X 1-3/4"
16	T21446	1	BUSHING	-
17	L372T	6	CAP SCREW	-
18	12H303	6	Lock Washer	5/16"

ENGINE CLUTCH AND FLYWHEEL (WITH INDEPENDENT PTO) (WITHOUT REVERSER) [01E01]
