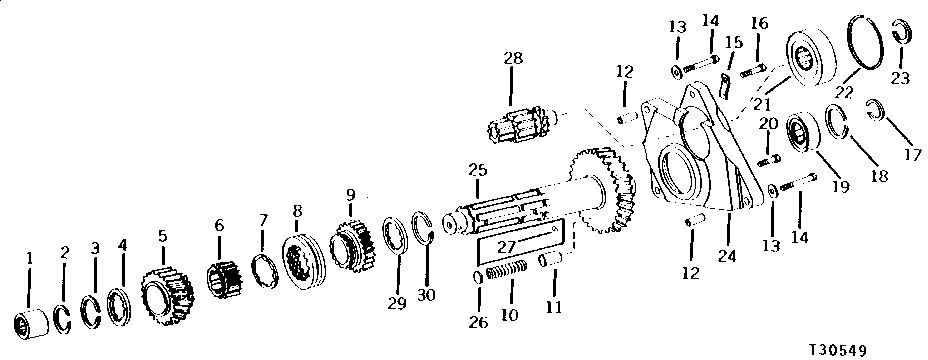

COUNTERSHAFT AND BEARING SUPPORT (WITHOUT INDEPENDENT PTO) [01F18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD9878	1	NEEDLE BEARING	-
1	JD9822	1	NEEDLE BEARING	-
2	L29048	1	SNAP RING	-
2	R34399	1	Snap Ring	-
3	T19242	1	SNAP RING	-
4	T19245	1	THRUST WASHER	-
5	T21978	1	GEAR	(LOW RANGE) (SUB T30065) (22 TEETH)
5	T30065	1	GEAR	(LOW RANGE) (22 TEETH)
6	T21964	1	SLEEVE	-
7	R55721	1	THRUST WASHER	(SUB FOR T24730, THIS APPLICATION)
8	T21970	1	SHIFT COLLAR	-
9	T21981	1	GEAR	(REVERSE RANGE) (21 TEETH) (WITHOUT REVERSER)
10	T24732	2	SPRING	-
11	T21969	2	FRICTION PLUG	-
12	T24729	2	Bushing	-
13	R57696	2	Washer	(SUB FOR R1870R)
14	19H3065	2	Cap Screw	3/8" X 2"
15	T24736	1	CLAMP	-
16	19H3239	1	Cap Screw	3/8" X 1-1/4"
17	B1402R	1	SNAP RING	(SUB FOR F215R)
18	B190R	1	SNAP RING	-
19	JD9258	1	Ball Bearing	(SUB FOR JD9465)
20	19H2676	1	Cap Screw	3/8" X 1"
21	JD7674	1	BALL BEARING	(WITHOUT HI-LO SHIFT)
21	JD9361	1	BALL BEARING	(WITH HI-LO SHIFT)
22	T24737	1	SNAP RING	-
23	A364R	1	Snap Ring	(WITHOUT HI-LO SHIFT)
23	T25621	1	SNAP RING	(WITH HI-LO SHIFT)
24	L36557	1	Bearing Housing W/O Bearing	(SUB FOR T24691, THIS APPLICATION)
25	T24726	1	COUNTERSHAFT	(37 TEETH)
25	R56615	1	COUNTERSHAFT	(37 TEETH)
26	T24521	2	DISK	(WITH REVERSER)
27	T16573	1	Pin	(WITH REVERSER)
28	R67341	1	GEAR	(12 TEETH) (WITHOUT HI-LO SHIFT) (SUB FOR T24728 AND R65576)
28	R67338	1	GEAR	(12 TEETH) (WITH HI-LO SHIFT) (SUB FOR T25620 AND R65577)
29	T19245	1	THRUST WASHER	(WITHOUT REVERSER)
30	T19242	1	SNAP RING	(WITHOUT REVERSER)

COUNTERSHAFT AND BEARING SUPPORT (WITHOUT INDEPENDENT PTO) [01F18]
