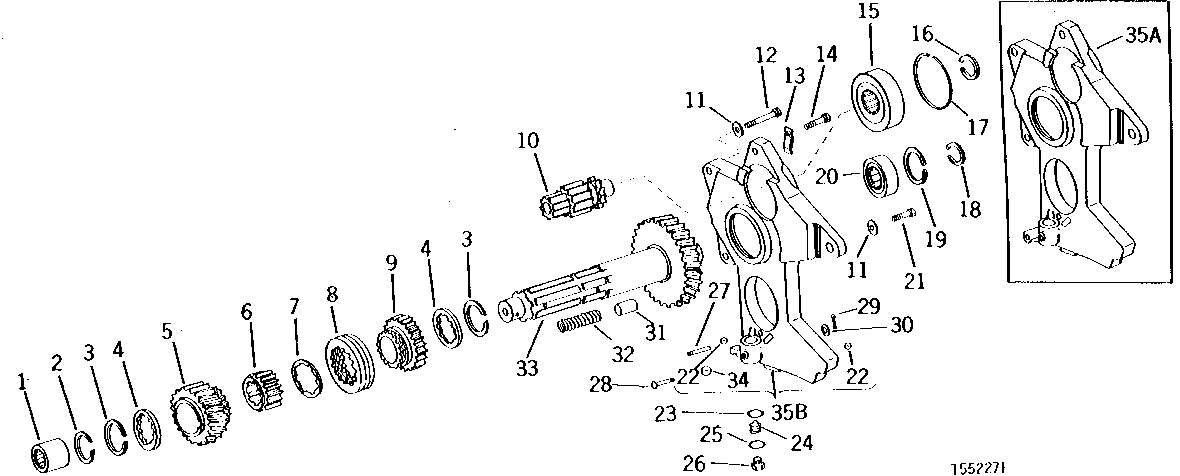

COUNTERSHAFT AND BEARING SUPPORT (WITH INDEPENDENT PTO) [01F19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD9878	1	NEEDLE BEARING	-
1	JD9822	1	NEEDLE BEARING	-
2	L29048	1	SNAP RING	-
2	R34399	1	Snap Ring	-
3	T19242	2	SNAP RING	-
4	T19245	2	THRUST WASHER	-
5	T21978	1	GEAR	(LOW RANGE) (SUB T30065) (22 TEETH)
5	T30065	1	GEAR	(LOW RANGE) (22 TEETH)
6	T21964	1	SLEEVE	-
7	R55721	1	THRUST WASHER	(SUB FOR T24730, THIS APPLICATION)
8	T21970	1	SHIFT COLLAR	-
9	T21981	1	GEAR	(21 TEETH)
10	R67341	1	GEAR	(SUB FOR T24728 AND R65576) (12 TEETH) (WITHOUT HI-LO SHIFT)
10	R67338	1	GEAR	(SUB FOR T25620 AND R65577) (12 TEETH) (WITH HI-LO SHIFT)
11	R57696	2	Washer	(SUB FOR R1870R)
12	19H3065	2	Cap Screw	3/8" X 2"
13	T24736	1	CLAMP	-
14	19H3239	1	Cap Screw	3/8" X 1-1/4"
15	JD7674	1	BALL BEARING	(WITHOUT HI-LO SHIFT)
15	JD9361	1	BALL BEARING	(WITH HI-LO SHIFT)
16	T25621	1	SNAP RING	(WITH HI-LO SHIFT)
16	A364R	1	Snap Ring	(WITHOUT HI-LO SHIFT)
17	T24737	1	SNAP RING	-
18	B1402R	1	SNAP RING	(SUB FOR F215R)
19	B190R	1	SNAP RING	-
20	JD9258	1	Ball Bearing	(SUB FOR JD9465)
21	19H2676	1	Cap Screw	3/8" X 1"
22	R42849	2	Ball	-
23	R56396	1	O-Ring	(SUB FOR P42061, THIS APPLICATION)
24	T30758	1	PISTON	-
25	R27149	1	O-Ring	-
26	R51912	1	FITTING	(SUB FOR R44823)
27	R26822	1	PIN FASTENER	-
28	N6704DN	1	Pin Fastener	-
29	11M7059	1	Cotter Pin	3.200 X 20 MM
30	U13489	1	WASHER	-
31	T21969	2	FRICTION PLUG	-
32	T24732	2	SPRING	-
33	T24726	1	COUNTERSHAFT	(WITH GEAR) (37 TEETH)
33	R56615	1	COUNTERSHAFT	(WITH GEAR) (37 TEETH)
34	R26552	1	Ball	-
35A	AR67704	1	SUPPORT	(MARKED T30749) WITH BALLS, (SUB AR78203) (ALSO ORDER L31514 AND L31515)
35B	AR78203	1	SUPPORT	(MARKED R63296) WITH BALLS

COUNTERSHAFT AND BEARING SUPPORT (WITH INDEPENDENT PTO) [01F19]
