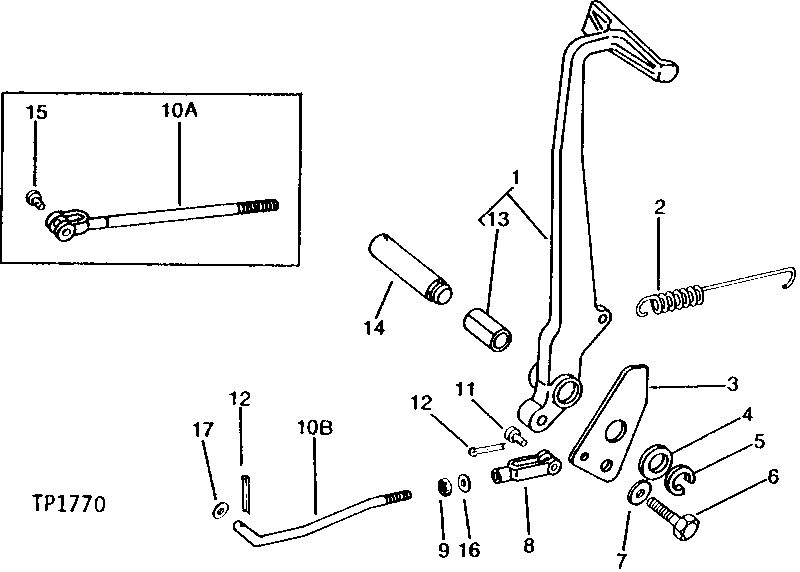

CLUTCH PEDAL AND LINKAGE (WITHOUT REVERSER) [01D23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL27229	1	PEDAL	(MARKED L32030) WITH BUSHING (SUB FOR AT22096, MARKED T22000)
2	T21955	1	EXTENSION SPRING	(CONTINUOUS DRIVEN PTO)
2	T21452	1	EXTENSION SPRING	(NO PTO OR WITH TRANSMISSION DRIVEN PTO)
3	T22528	1	ARM	(SUB AL27229) (NO PTO OR WITH TRANSMISSION DRIVEN PTO)
3	T22529	1	ARM	(SUB AL27229) (CONTINUOUS DRIVEN PTO)
4	24H1451	1	Washer	1-1/32" X 1-3/4" X 0.060"
5	A602R	1	Snap Ring	-
6	19H3579	1	Cap Screw	1/2" X 1-3/8"
7	T26198	1	WASHER	(CONTINUOUS DRIVEN PTO)
7	24H1526	1	Washer	1-33/64" X 2-1/4" X 0.075", (NO PTO OR WITH TRANSMISSION DRIVEN PTO)
8	M80373	1	Yoke	(SUB FOR L324T)
9	14H774	1	Nut	3/8"
10	AT20383	1	YOKE	-
11	C1067R	1	PIN FASTENER	(USE IF AVAILABLE)
11	R65563	1	Pin Fastener	(SUB FOR C1067R)
12	11M7059	2	Cotter Pin	3.200 X 20 MM
13	T21998	1	BUSHING	-
14	T21448	1	PIN	-
15	C1067R	1	PIN FASTENER	(USE IF AVAILABLE) (USED WITH AT20383)
15	R65563	1	Pin Fastener	(SUB FOR C1067R)
16	24M7096	1	Washer	0.413" X 0.709" X 0.063", (USE WHEN R73330 HAS BEEN INSTALLED AS A REPLACEMENT PART)
17	24H1325	1	Washer	15/32" X 59/64" X 0.065"
10A	T20383	1	LOCK NUT	(SUB ONE R73330 AND ONE 24H1303, THIS APPLICATION)
10B	R73330	1	ROD	-

CLUTCH PEDAL AND LINKAGE (WITHOUT REVERSER) [01D23]
