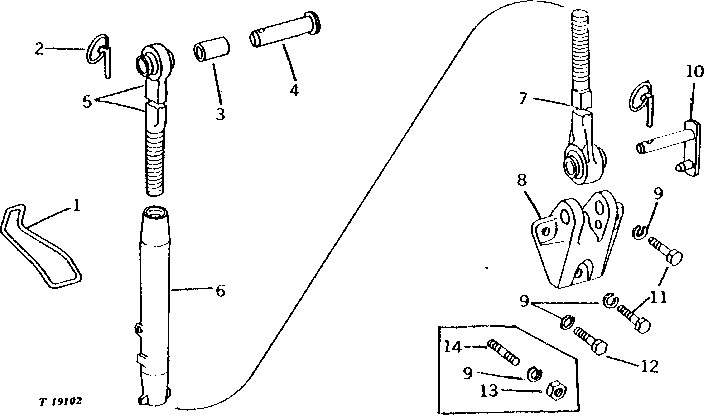

THREE-POINT HITCH CENTER LINK (CATEGORY I AND II) [02E03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T27136	1	HANDLE	(NON TELESCOPING DRAFT TUBES) (CATEGORY II)
1	T22008	1	HANDLE	-
2	B11182	2	QUICK LOCK PIN	-
3	T12553	1	Bushing	(TO CONVERT CATEGORY II TO CATEGORY I)
3	L11292	1	BUSHING	(NON TELESCOPING DRAFT TUBES) (TO CONVERT CATEGORY II TO CATEGORY I)
4	R53296	1	Pin Fastener	(CATEGORY II) (SUB FOR F2683R AND R44918)
4	R58262	1	Pin	(CATEGORY I) (SUB FOR F2682R, R28061 AND R44917)
5	AT19796	1	LINK END	(CATEGORY II) (MARKED T21508) (R.H. THREAD)
5	AT19873	1	LINK END	(CATEGORY I) (MARKED T21508) (R.H. THREAD)
5	AT30979	1	END	(NON TELESCOPING DRAFT TUBES) (CATEGORY II) (R.H. THREAD)
6	T22028	1	LINK BODY	-
6	AT30978	1	LINK BODY	(NON TELESCOPING DRAFT TUBES) (CATEGORY II)
7	AT19795	1	LINK END	(MARKED T21506) (L.H. THREAD)
7	-	1	Part 14	( AT30977 NO LONGER AVAILABLE) (NON TELESCOPING DRAFT TUBES) (CATEGORY II) (L.H. THREAD)
8	T21685	1	BRACKET	-
9	12H294	3	Lock Washer	5/8"
10	AL40957	1	Pin Fastener	(SUB FOR AT21912)
11	19H1356	2	CAP SCREW	5/8" X 1-3/4"
12	19H1356	1	CAP SCREW	5/8" X 1-3/4"
13	14H1039	1	Nut	5/8"
14	T22648	1	STUD	SUB. 19H1356

THREE-POINT HITCH CENTER LINK (CATEGORY I AND II) [02E03]
