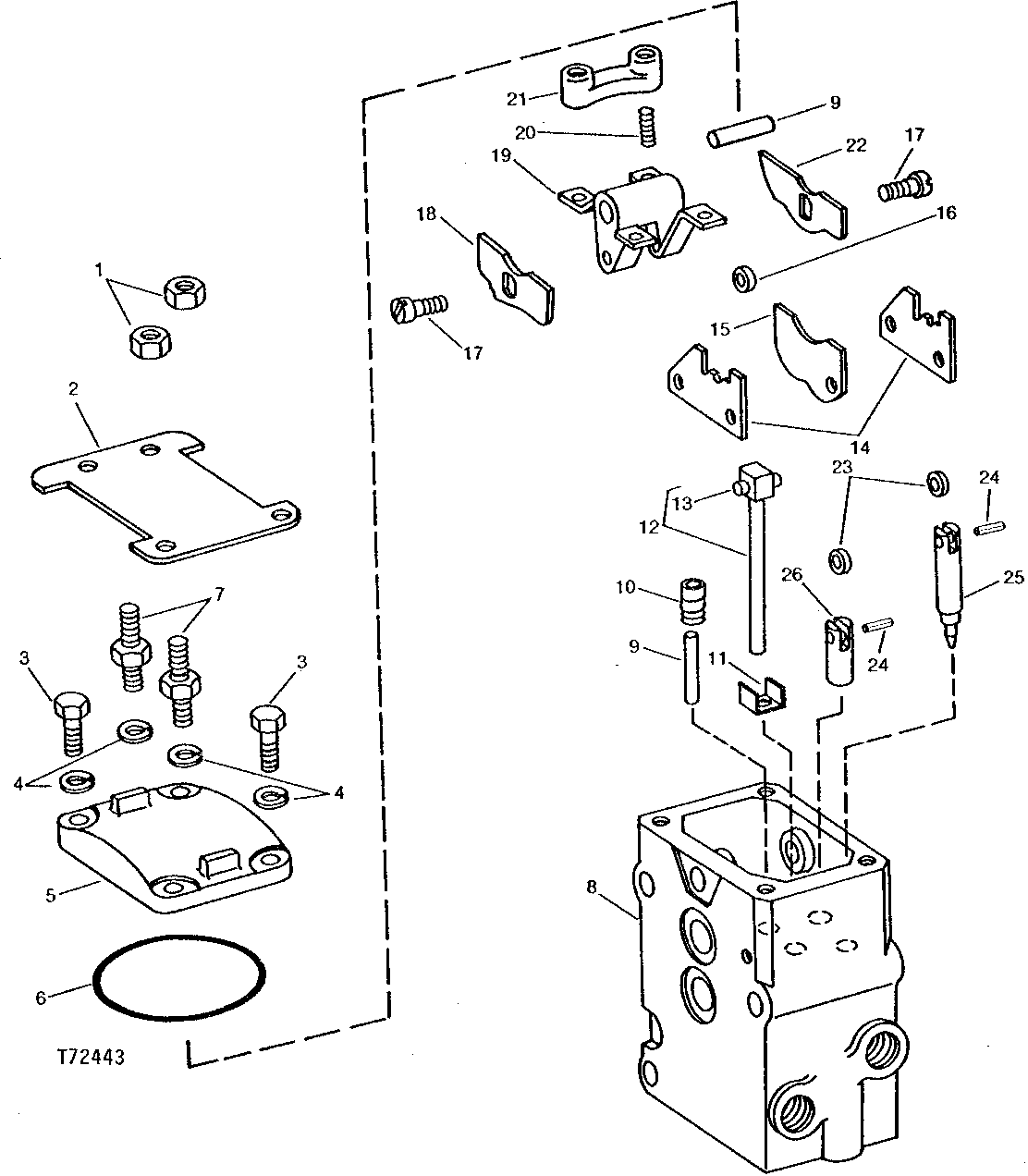

SELECTIVE CONTROL VALVE (UPPER HALF) (SERIAL NO. -79541) (SERIAL NO. 80051-80196) [02D05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H732	2	Nut	3/8"
2	T22996	1	ADJUSTING STRAP	-
3	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1"
4	12H304	4	Lock Washer	3/8"
5	R27593	1	COVER	(SUB R49186 AND R49187)
6	R26544	1	SEAL	(B) (C) (A)
7	R39225	2	Stud	-
8	AR40824	1	HOUSING	( R41197), SELECTIVE CONTROL VALVE, WITH GUIDES, METERING SHSFTS, AND VALVES, (SUB FOR AR35823)
8	-	1	Part 9	( AR39144 NO LONGER AVAILABLE) (C) SELECTIVE CONTROL VALVE, WITH GUIDES, SHAFTS AND VALVES,(MARKED R41197)
8	AR41102	1	HOUSING	(A) SELECTIVE CONTROL VALVE, WITH GUIDES, SHAFTS AND VALVES,(MARKED R41197)
9	R28744	2	Pin	(C) (A)
10	AR78483	1	GUIDE	(C) (A) (SUB FOR AR31703)
11	R28635	1	CLIP	(C) (A)
12	AR27867	1	GUIDE	(C) (A)
13	R28634	1	Pin	(C) (A)
14	R32389	2	DETENT	(SUB FOR AR31813)
15	R26978	1	CAM	(C) (A)
16	R51409	1	SPACER	(C) (A) (SUB FOR R26980 AND R41613)
17	R27233	2	SCREW	(C) (A)
18	R51415	1	CAM	(C) (A) (SUB FOR R27589 AND R41932)
19	R27587	1	ROCKER	(C) (A)
20	22H1025	4	Set Screw	1/4" X 7/8"
21	R49221	2	RETAINER	(C) (A) (ALSO ORDER (2) 22H1025 FOR EACH KEEPER)
22	R51414	1	CAM	(C) (A) (SUB FOR R27588 AND R41931)
23	R51409	4	SPACER	(C) (A) (SUB FOR R26980 AND R41613)
24	34H241	4	Spring Pin	(C) (A) 1/8" X 3/8"
25	R27678	2	FOLLOWER	(C) (A)
26	R26982	2	CAM FOLLOWER	(C) (A)
..	AR34295	1	KIT	-
..	-	1	Part 30	(WHEN AR39142 IS NO LONGER AVAILABLE SUB AR39144, AR26697, (2) R26149, (5) R26375 AND R26544)
..	-	1	Part 31	(WHEN AR39143 IS NO LONGER AVAILABLE SUB AR41102, AR26697, (2) R26149, (5) R26375 AND R26544)

SELECTIVE CONTROL VALVE (UPPER HALF) (SERIAL NO. -79541) (SERIAL NO. 80051-80196) [02D05]
