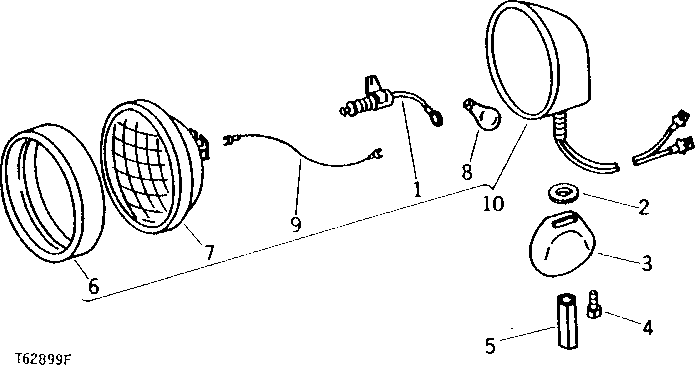

REAR LIGHT (WITHOUT LOADER) (SERIAL NO. -125820) [02G19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	165 MM (6-1/2") (MAKE FROM AR84006 WIRING REPAIR KIT) (USE WHEN AR77327 HAS BEEN INSTALLED AS A REPLACEMENT PART)
2	R31892	1	WASHER	-
3	T21761	1	Support	-
4	T19179	2	CAP SCREW	-
5	T22522	1	NUT	-
6	R30182	1	BEZEL	(HOBBS)
6	R31250	1	BEZEL	(GUIDE LAMP)
7	AR77324	1	LAMP	(SUB FOR AR21737) (ALSO ORDER AD2062R AND AR77325)
8	AR86969	1	BULB	(SUB FOR AR21739) (USE WITH AT20107)
8	AD2062R	1	Bulb	(USE WHEN AR77324 OR AR77327 HAS BEEN INSTALLED AS A REPLACEMENT PART)
9	AR77325	1	SOCKET	(USE WHEN AR77324 OR AR77327 HAS BEEN INSTALLED AS A REPLACEMENT PART)
10	-	1	Part 12	( AR77327 NO LONGER AVAILABLE) (SUB FOR AT20107) (SUB AR77326 AND AT280641)
10	AR77326	1	FLOODLAMP	-

REAR LIGHT (WITHOUT LOADER) (SERIAL NO. -125820) [02G19]

Нет текстового описания
