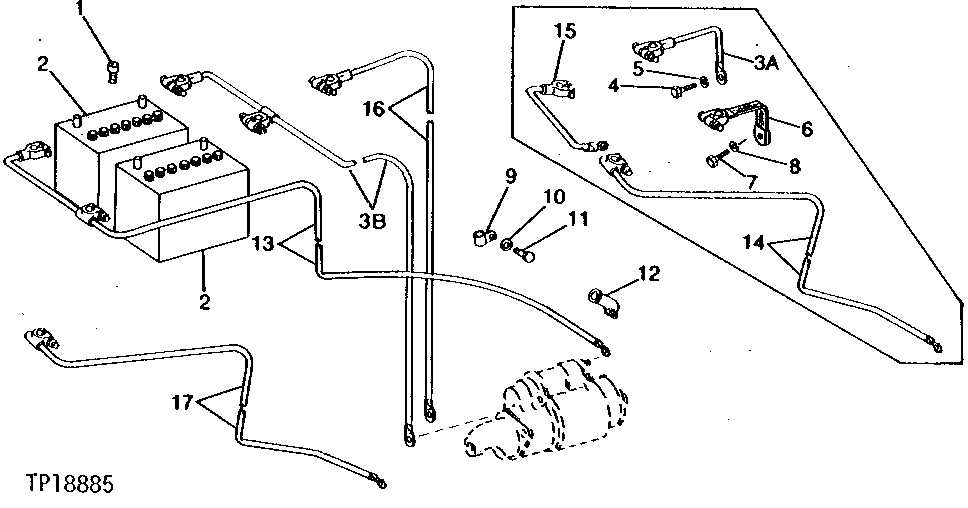

BATTERY CABLES AND STARTING MOTOR [02G14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR61868	12	CAP	-
2	AT29157	1	BATTERY	12-VOLT, 255 COLD CRANKING AMPS AT 0° F., 60-MINUTE RESERVE CAPACITY AT 25 AMPS
2	AT29158	1	DRY CHARGED BATTERY	12-VOLT, 385 COLD CRANKING AMPS AT 0° F., 110-MINUTE RESERVE CAPACITY AT 25 AMPS
4	19H2021	1	Cap Screw	3/8" X 5/8"
5	12H304	1	Lock Washer	3/8"
6	AT18702	1	GROUND CABLE	-
7	19H2021	1	Cap Screw	3/8" X 5/8"
8	12H304	1	Lock Washer	3/8"
9	R73384	1	Clamp	(MANUAL STEERING) (SUB FOR T14787 OR T24494)
9	T13814	1	Clamp	(POWER STEERING)
10	12H301	1	Lock Washer	1/2", (MANUAL STEERING)
11	19H1895	1	CAP SCREW	1/2" X 3/4", (MANUAL STEERING)
12	R30964	1	Cover	-
13	RE14512	1	BATTERY CABLE	-
14	AR103525	1	BATTERY CABLE	(SUB FOR T21888, THIS APPLICATION)
14	AR103525	1	BATTERY CABLE	(SUB FOR T21887, THIS APPLICATION)
15	T21889	1	BATTERY CABLE	-
16	AT14764	1	BATTERY CABLE	-
17	AR103525	1	BATTERY CABLE	-
3A	AR67453	1	BATTERY CABLE	(DIESEL) (SUB FOR AT20751) (SUB RE14513)
3B	RE14513	1	BATTERY CABLE	-

BATTERY CABLES AND STARTING MOTOR [02G14]

Нет текстового описания
