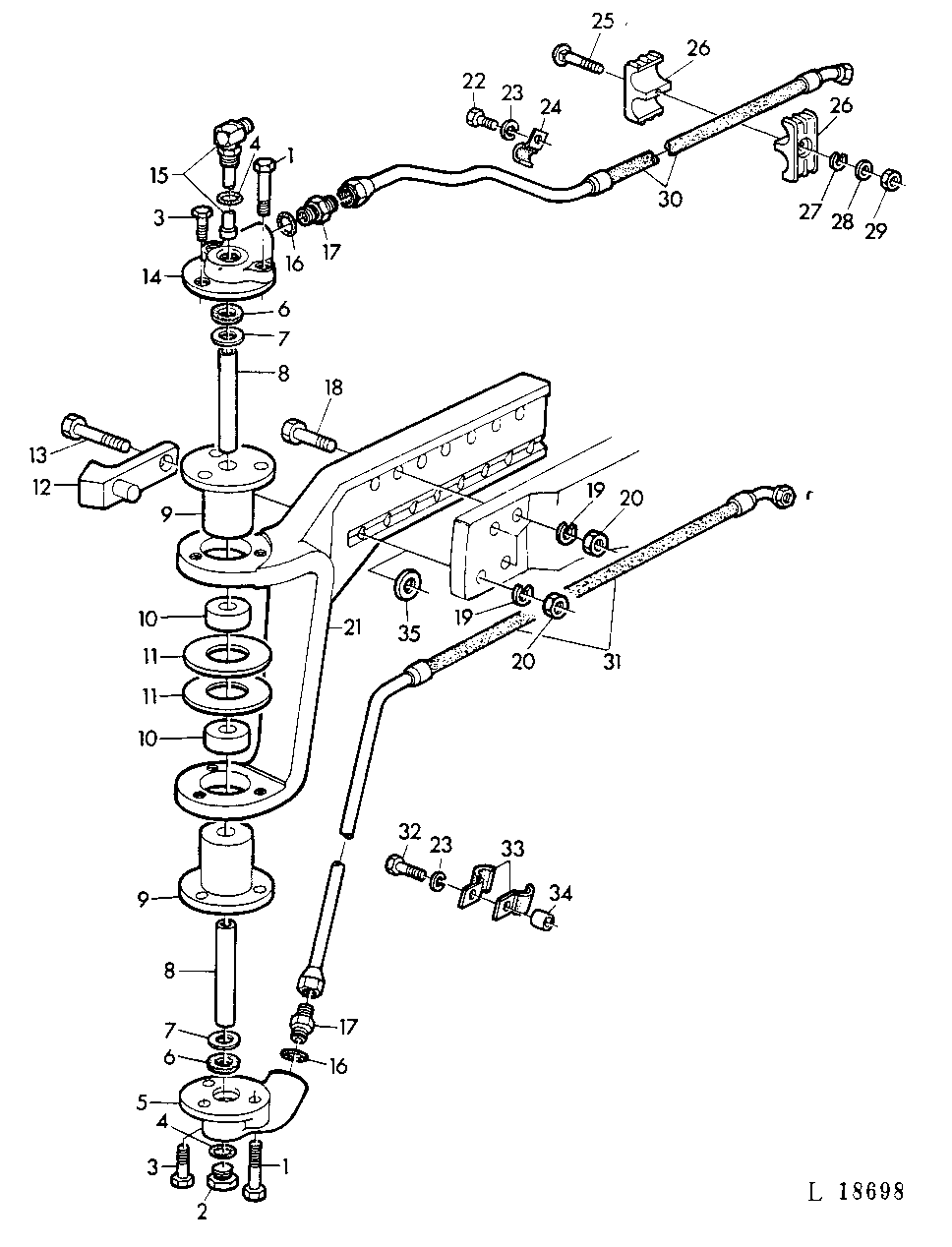

KNUCKLE AND KNEE ASSEMBLY - HYDRAULIC LINES [A18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1726	8	Cap Screw	3/8"X2-1/4"
2	R27218	2	Fitting Plug	-
3	19H2525	4	SCREW	3/8"X1"
4	R26448	4	O-Ring	-
5	R42886	1	COVER	RH
5	R42885	1	COVER	LH
6	R42975	4	O-RING	-
7	R44979	4	BACK-UP RING	-
8	R42974	4	BUSHING	-
9	R42887	4	BUSHING	-
10	AR86539	4	Seal	-
11	R66650	4	THRUST WASHER	-
11	R61514	4	THRUST WASHER	(SUB FOR R42973)
12	AL25439	2	STOP	-
13	19H3196	2	Cap Screw	(A) 3/4"X4",12.4-24
13	19H3307	2	Cap Screw	3/4"X6" (SUB FOR 19H3225)
13	19H3196	2	Cap Screw	(A) 3/4"X4",13.6-24 OR 12.4-28
14	R57007	1	CAP	RH
14	R57008	1	CAP	LH
15	AR53447	2	ELBOW FITTING	-
16	F3171R	4	O-Ring	-
17	R27267	4	Fitting	-
18	19H3307	8	Cap Screw	3/4"X6" (SUB FOR 19H2001)
19	12H236	10	Lock Washer	3/4"
20	14H794	10	Nut	3/4"
21	R57005	1	FRONT AXLE	RH
21	R57006	1	FRONT AXLE	LH
22	19H2284	2	Cap Screw	3/8"X7/8"
23	12H304	4	Lock Washer	3/8"
24	R45920	2	Clamp	-
25	03M7158	2	Bolt	6X80MM
26	L30978	4	CLAMP	-
27	12M7012	2	LOCK WASHER	6,4MM
28	24M7139	2	Washer	6,4X18X1,5MM
29	14M7027	2	NUT	6MM
30	AL24584	1	HYDRAULIC HOSE	UP,RH
30	AL24585	1	HYDRAULIC HOSE	UP,LH
31	AL24586	1	HYDRAULIC HOSE	LOW,RH
31	AL24587	1	HYDRAULIC HOSE	LOW,LH
32	19H2545	2	CAP SCREW	3/8"X1-3/8"
33	R27531	4	Clamp	-
34	28H1878	2	SPACER	-
35	24H1393	2	Washer	(A) 25/32"X13/8"X.180",12.4-24
35	24H1393	2	Washer	(A) 25/32"X13/8"X.180",13.6-24 OR 12.4-28
