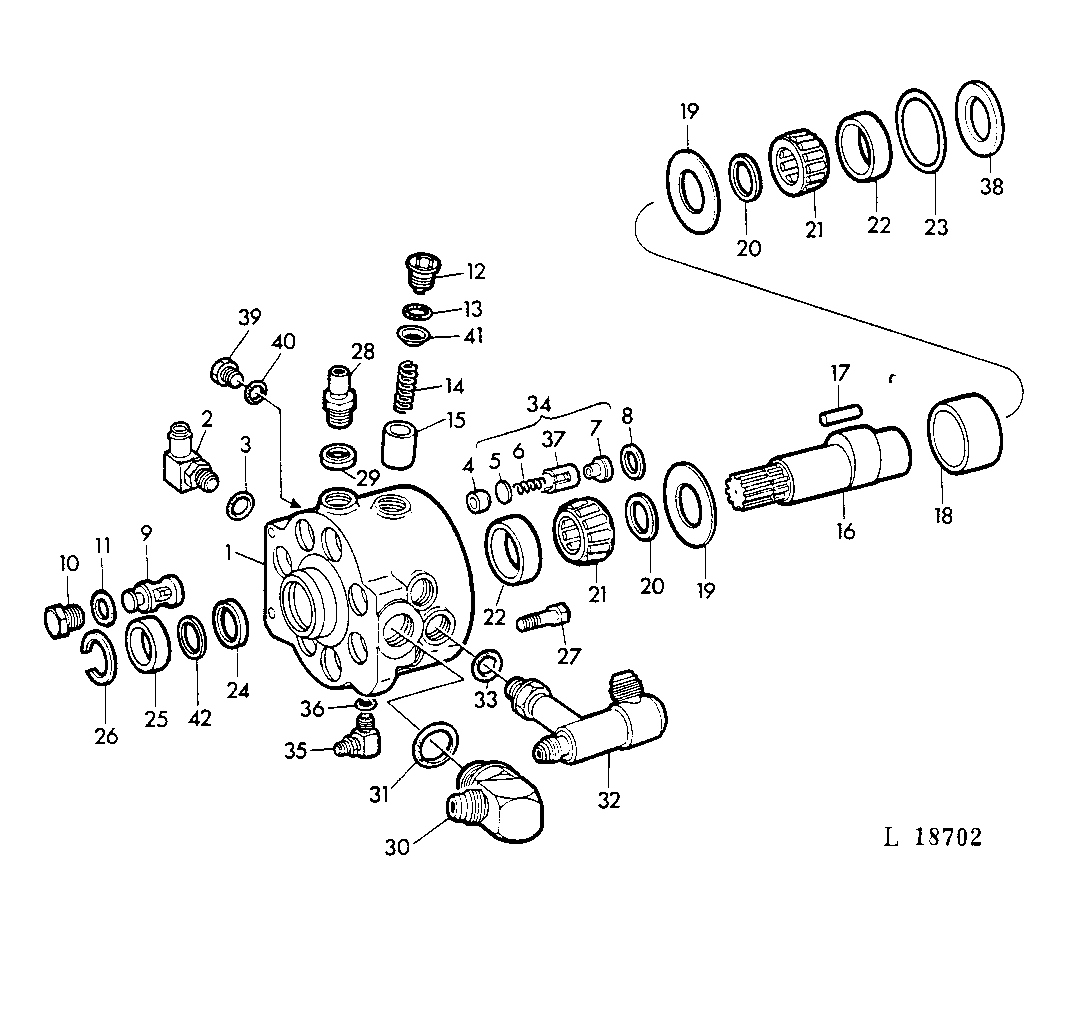

HYDRAULIC PUMP(3.00 CUBIC INCH) [B19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR47580	1	HOUSING	INCL KEYS 4,9-11 (ORD W/ AR52785)
2	AR68999	2	Elbow Fitting	-
3	R56751	2	O-Ring	(SUB FOR F3171R)
4	R39067	8	VALVE SEAT	-
5	R49297	8	DISK	-
6	R39228	8	SPRING	-
7	R49298	8	STOP	-
8	R56754	8	WASHER	(SUB FOR R26149)
9	AR53301	8	VALVE	-
10	R44823	8	FITTING	-
11	R27149	8	O-Ring	-
12	R45438	8	Fitting	-
13	R56463	8	O-Ring	-
14	AR55186	8	SPRING	KIT,PACKG (8)
15	R27150	8	PISTON	-
16	R34348	1	SHAFT	-
17	R27145	36	NEEDLE ROLLER	-
18	R45874	1	BEARING RACE	-
19	R60732	2	WASHER	(SUB FOR R42467)
20	R34349	2	WASHER	-
21	JD8192	2	BEARING CONE	-
22	JD8223	2	Bearing Cup	-
23	R27478	1	SHIM	TK=0,15MM (.006")
23	R27479	1	SHIM	TK=1,50MM (.060")
24	R39729	1	O-RING	-
25	AR52224	1	SEAL	-
26	R26137	1	Snap Ring	-
27	19H1805	3	CAP SCREW	1/2"X2-1/4"
27	19H2644	1	Cap Screw	1/2"X2-1/2"
27	19H1805	4	CAP SCREW	1/2"X2-1/4"
28	R39215	1	Fitting	7/8"
29	R35827	1	WASHER	-
30	AR39071	1	ELBOW FITTING	1-5/8"
31	U13639	1	O-Ring	-
32	AL19014	1	ADAPTER FITTING	-
32	AL30503	1	ADAPTER FITTING	-
32	AL19028	1	ADAPTER FITTING	-
33	R26906	1	O-Ring	-
34	AR52785	8	VALVE	ASSY,KEYS 5-8,37
35	AR26746	1	Elbow Fitting	-
35	AT32336	1	ELBOW FITTING	-
36	R26287	1	O-Ring	-
37	R48738	8	GUIDE	-
38	R49072	1	WASHER	-
39	R27175	1	Drain Plug	1-1/16"
40	R56751	1	O-Ring	(SUB FOR F3171R)
41	R56749	8	DUST SHIELD	-
42	R56753	1	SHIM	-
..	AR56160	1	HYDRAULIC PUMP	ASSY,INCL KEYS 1,4-26,34,37,38,42
..	AR67718	1	KIT	KIT

HYDRAULIC PUMP(3.00 CUBIC INCH) [B19]
