Открытый узел

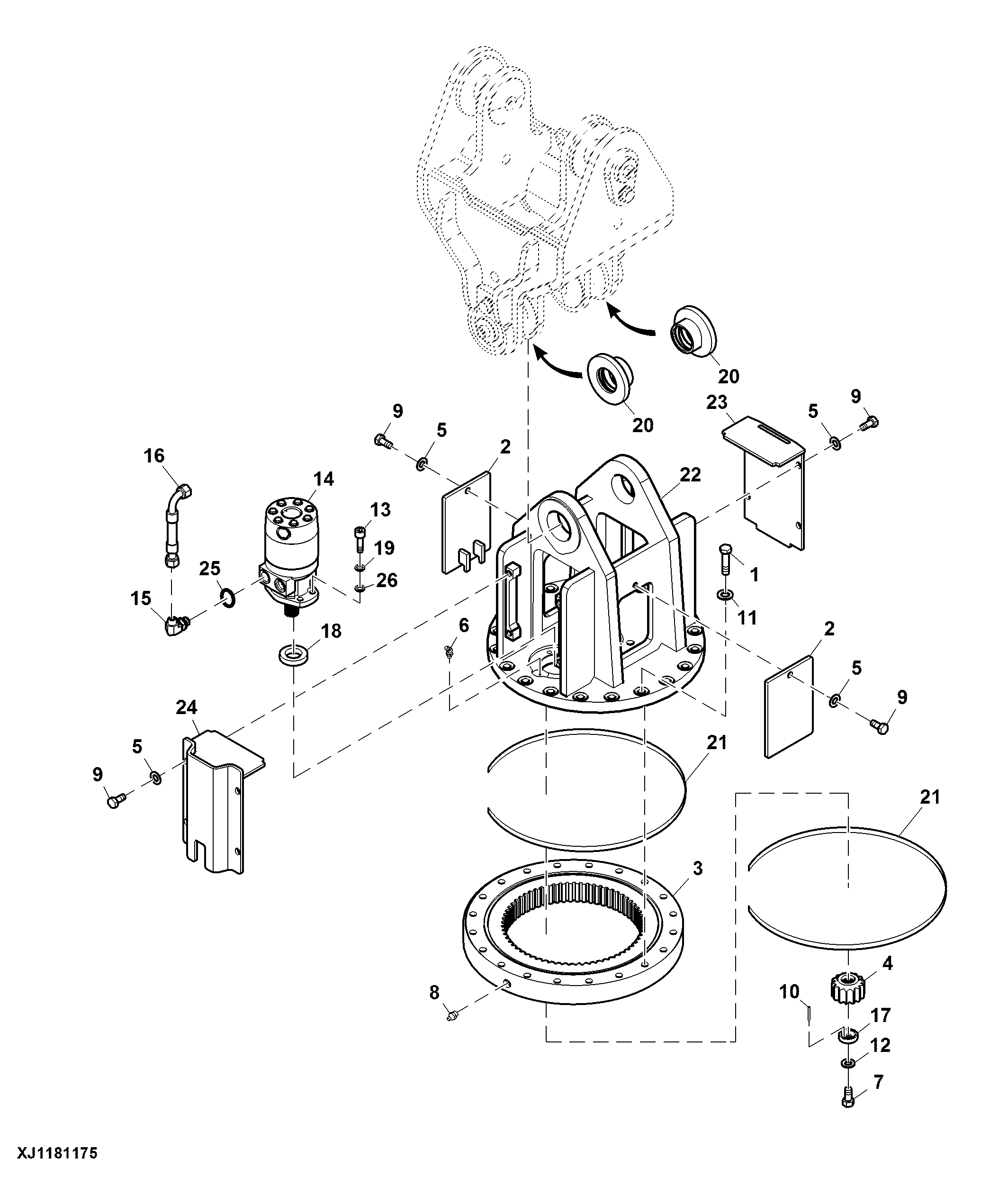

Rotator, Continuous with Through Hosing

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1410	20	Cap Screw	5/8" X 2-1/2"
2	F350356	2	Guard	ROTATOR
3	F350369	1	Ring Gear	INCLUDES WA111174
4	F350370	1	Pinion	-
5	WA100044	10	Washer	0.500 X OD-M26 X 2, Hardened
6	WA100184	1	Lubrication Fitting	-
7	WA100606	1	Screw	UNF G8 5/8" X 1 1/4"
8	WA101636	1	Lubrication Fitting	-
9	WA102499	10	Bolt	UNC G8 1/2 X 1"
10	WA102523	1	Spring Pin	1/8"X1"
11	WA102580	20	Washer	5/8, Hardened
12	WA102654	1	Lock Washer	5/8", Disc-lock
13	WA103511	4	Screw	1/2" X 1 1/2" UNC
13	WA123821	4	Bolt	1/2" X 1 3/4" UNC
14	WA116803	1	Hydraulic Motor	NLA; ORDER <service-part>WA131612</service-part>
14	WA131649	1	Seal Kit	USE WITH <service-part>WA131612</service-part>
14	WA131612	1	Hydraulic Motor	-
15	WA116869	2	Fitting	13/16 ORFSM-7/8 UNOM BNUT 90D
16	WA120107	2	Hydraulic Hose	-
17	WA120837	1	Washer	-
18	WA121408	1	Spacer	-
19	WA121409	4	Washer	-
20	WA121595	2	Bushing	-
21	WA111174	2	Sealing Ring	SEAL STRIP FITTED TOP AND BOTTOM
22	WA122894	1	Rotator	-
23	WA122898	1	Guard	Rear
24	WA122901	1	Guard	Motor
25	WA100674	2	O-Ring	AS568A 014N90 12.42 mm X 1.78 mm
26	WA125514	1	Washer	13 X 20 X 3 mm

Rotator, Continuous with Through Hosing

Нет текстового описания
