Remote Manifold With Auto Tension, Without Load Sense ( - 000229)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F001623	4	Cap Screw	M8 X 40
2	WA100426	4	Lock Washer	5/16", Disc-lock
3	-	3	Part 3	-
4	WA101135	6	Fitting	1/4" BSPF test point, (a) Main pump supply pressure (PM), (b) Load sense pressure (LS), (c) Pilot pressure (PPM), (d) Measuring arm down pressure (MWBM), (e) Main saw tension pressure (SAWT), (f) Main reduced pressure (PRM)
5	WA101361	2	Threaded Nipple	1/4" BSP - 7/16" JIC nipple
6	WA101835	1	Threaded Nipple	3/8" BSPPM - 7/16" JICM
7	WA102254	3	Elbow Fitting	7/16" JICM - 1/4" BSPPM
8	WA103188	1	Pipe Plug	1/4" BSPPM
9	WA108277	1	Hose Fitting	9/16" JICM - 3/8" BSPPM
10	WA113140	1	Plug	-
11	-	2	Part 11	-
12	-	1	Part 12	-
13	WA119415	1	Pressure Relief Valve	Main saw chain tension PRV
14	WA120006	1	Manifold	-
15	WA120856	1	Fitting	7/16" JICM - 3/8" BSPPM
16	WA101140	4	Sealing Washer	1/4" Dowty (-04)
17	WA120398	1	Seal Kit	USE WITH <service-part>WA119415</service-part>
18	WA103517	3	Sealing Washer	3/8" Dowty (-06)
19	WA100477	1	Elbow Fitting	7/16" JIC - 7/16" JIC 90 degree
20	WA129372	2	Seal	O-ring, V-04, OD 11.1 X 2.4 mm
21	WA129361	2	Sealing Washer	1/4" retaining ring, OD 20.2 X 1.5 mm
22	WA129373	2	Seal	O-ring, V-06, OD 14.3 X 2.4 mm
23	WA129362	2	Sealing Washer	3/8" retaining ring, OD 23.9 X 1.6 mm
24	WA119458	6	Sealing Washer	1/4" DIN 3869
25	WA119345	1	Tee Fitting	7/16" JICM - 1/8" BSPPM
26	WA119346	1	Fitting	1/4" BSPPF

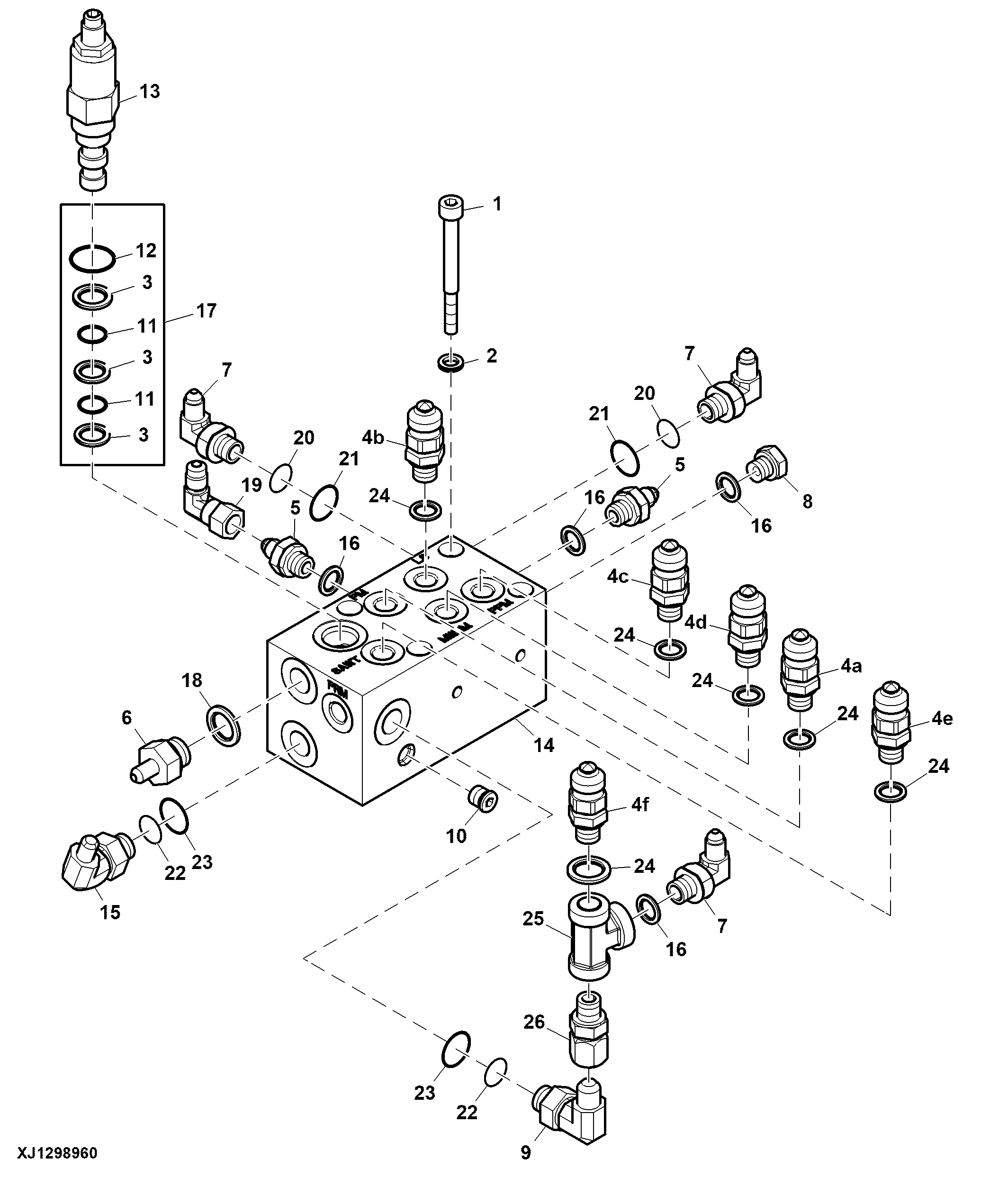

Remote Manifold With Auto Tension, Without Load Sense ( - 000229)
