Открытый узел

Danfoss Valve Electrical Connector (TR100) (000212 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

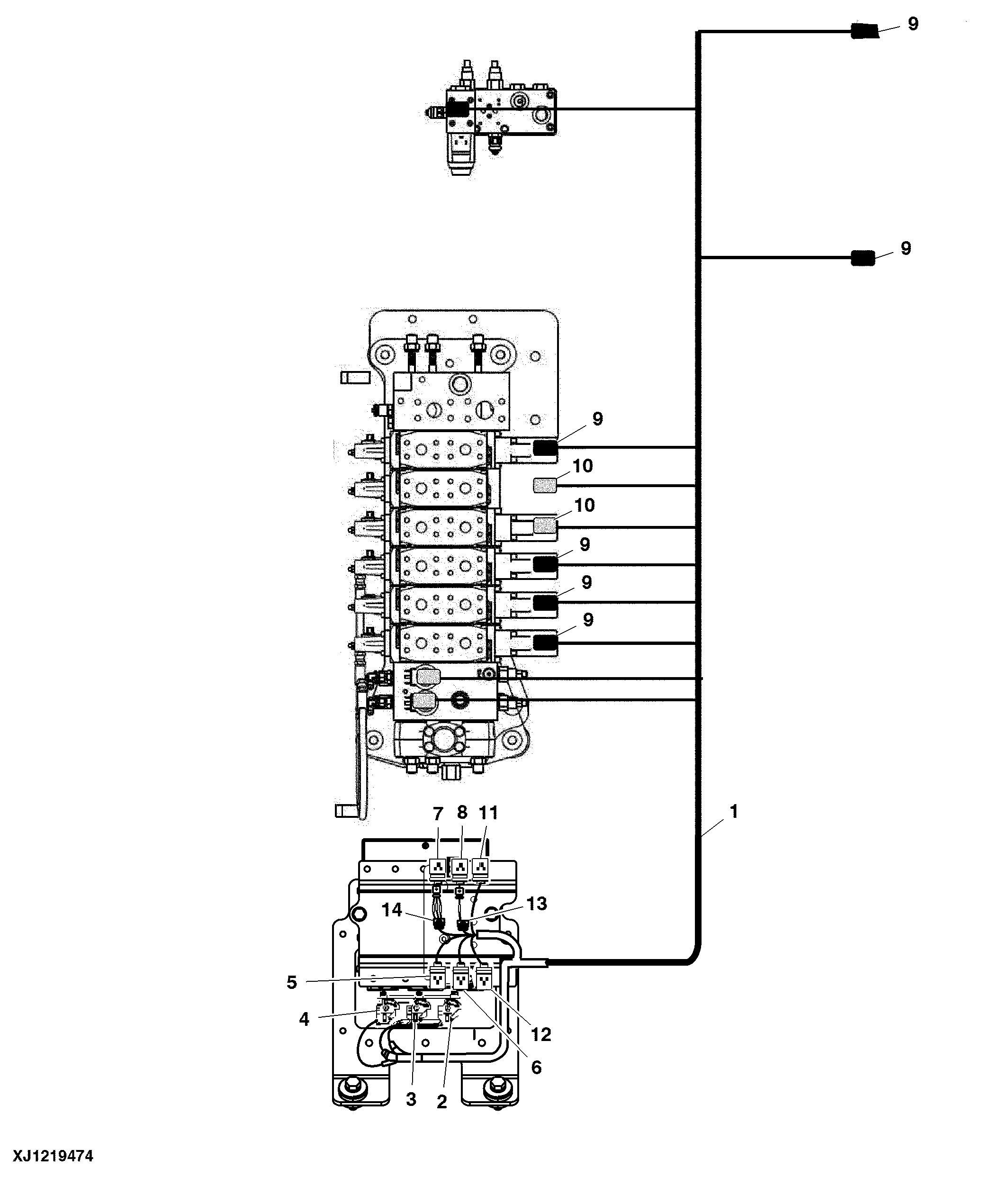

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA118560	1	Cable	-
2	57M10612	1	Elec. Connector Housing	32 MOLEX PLUG (RED)
2	57M10330	24	Elec. Connector Terminal	0.635mm Socket
2	57M10333	1	Elec. Connector Cavity Plug	BLANKING PLUG 0.6MM (WHITE)
2	57M10334	1	Elec. Connector Cavity Plug	BLANKING PLUG 1.5MM (ORANGE)
2	57M10604	1	Elec. Connector Housing	SMALL CAP (J1)
3	57M10615	1	Elec. Connector Housing	48 WAY MOLEX PLUG
3	57M10613	1	Elec. Connector Housing	LARGE CAP (J2)
3	57M10334	1	Elec. Connector Cavity Plug	BLANKING PLUG 1.5MM (ORANGE)
3	57M10333	1	Elec. Connector Cavity Plug	BLANKING PLUG 0.6MM (WHITE)
3	57M10330	24	Elec. Connector Terminal	0.635mm Socket
4	57M10606	1	Elec. Connector Housing	32 way Molex Plug
4	57M10604	1	Elec. Connector Housing	SMALL CAP (J3)
4	57M10334	1	Elec. Connector Cavity Plug	BLANKING PLUG 1.5MM (ORANGE)
4	57M10333	1	Elec. Connector Cavity Plug	BLANKING PLUG 0.6MM (WHITE)
4	57M10330	24	Elec. Connector Terminal	0.635mm Socket
5	57M9814	1	Elec. Connector Cavity Plug	BLANKING PLUG AMP SEAL
5	57M8264	12	Elec. Connector Terminal	16-18 AWG, PIN - GOLD
5	57M9804	1	Elec. Connector Housing	12 WAY - AMPSEAL RECEPTACLE
6	57M9821	1	Elec. Connector Housing	4 WAY AMPSEAL RECEPTACLE
6	57M8264	1	Elec. Connector Terminal	16-18 AWG, PIN - GOLD
7	57M9800	1	Elec. Connector Housing	12 WAY AMPSEAL PLUG
7	57M8263	36	Elec. Connector Terminal	16-18 AWG Socket Gold
7	57M9814	1	Elec. Connector Cavity Plug	Blanking Plug AMPSEAL
8	57M9814	1	Elec. Connector Cavity Plug	Blanking Plug AMPSEAL
8	57M8263	4	Elec. Connector Terminal	16-18 AWG Socket Gold
8	57M9817	1	Elec. Connector Housing	4 Way AMPSeal Plug
9	WA101173	7	Plug	Plug Solenoid Hershman Black
10	WA101754	4	Plug	Plug Solenoid Hersham Grey
11	57M9786	1	Elec. Connector Housing	6 WAY AMPSEAL PLUG
11	57M8263	6	Elec. Connector Terminal	16-18 AWG Socket Gold
11	57M9814	1	Elec. Connector Cavity Plug	Blanking Plug AMPSEAL
12	57M9789	1	Elec. Connector Housing	6 WAY AMPSEAL RECEPTACLE
13	WA125786	1	Circuit Breaker	Length Sensor Protection
14	WA125787	1	Circuit Breaker	Sensor Protection

Danfoss Valve Electrical Connector (TR100) (000212 - )

Нет текстового описания
