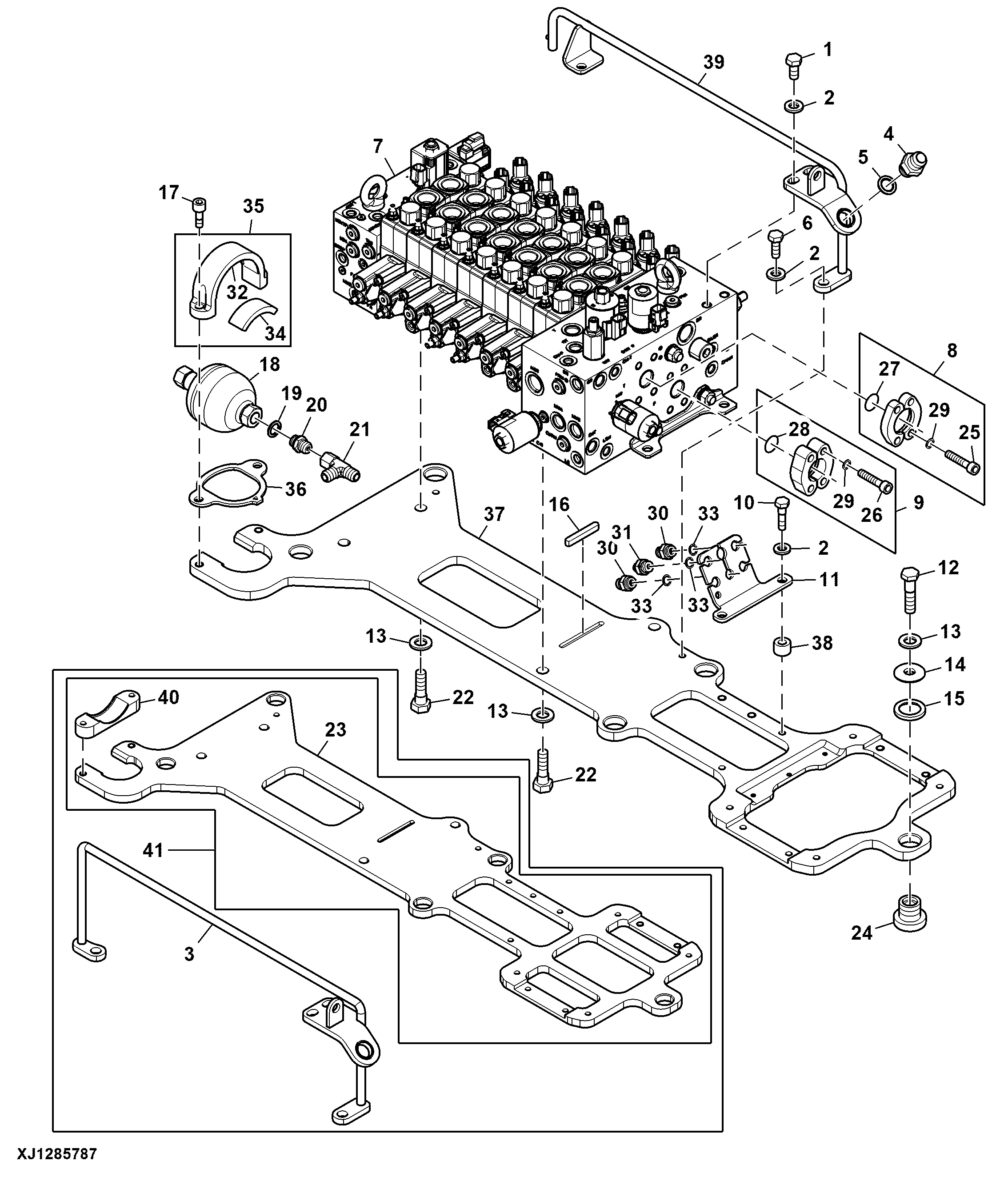

Valve and Mounting Bracket (000024 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA102499	2	Bolt	1/2" UNC X 1" G8
2	WA102555	6	Washer	1/2", Disc-lock
3	WA118141	1	Bracket	-
4	WA101677	1	Adapter	3/4" BSPPM - 1-1/16" JICM
5	F350806	1	Sealing Washer	18 mm, Dowty
6	19M3205	2	Cap Screw	M12 X 30
7	-	1	Part 7	-
8	WA102048	1	Flange Fitting	1-1/4", CODE 61
9	F351084	1	Flange Fitting	1", CODE 62
10	WA100842	2	Bolt	M12 X 45 C10.9, USE WITH WA131940
10	WA100648	2	Bolt	M12 X 25 C10.9, ORDER WA100842
11	WA112181	1	Bracket	-
12	F026214	5	SCREW	M16 X 65
13	WA102654	9	Lock Washer	5/8", Disc-lock
14	F350525	5	Washer	-
15	F350526	5	Washer	-
16	F351039	1	Shaft Key	3/8" X 3/8" X 2-3/4"
17	WA102507	2	Bolt	1/2" UNC X 1-1/4" S/CAP
17	WA103511	2	Screw	1/2" UNC X 1-1/2" S/CAP
18	WA125268	1	Bag	Accumulator Bladder
18	WA102114	1	Bag	Accumulator Bladder
18	WA125267	1	Hydraulic Accumulator	NLA; ORDER <service-part>WA130412</service-part>
18	F351122	1	Hydraulic Accumulator	-
18	WA130412	1	Hydraulic Accumulator	-
19	WA102850	1	Sealing Washer	3/4" Dowty (-12)
20	WA103159	1	Threaded Nipple	18 mm X 3/4 JICM
21	WA101145	1	Tee Fitting	3/4" JIC M/F/M
22	WA101957	4	Bolt	5/8" UNC X 2" G8
23	WA118140	1	Plate	-
24	F350523	5	Isolator	-
25	-	4	Part 31	7/16" UNC 1-1/2"
26	-	4	Part 32	7/16" UNC 1-3/4"
27	WA103524	1	O-Ring	AS568A 222N90 (37.69 mm X 3.53 mm)
28	WA101344	1	O-Ring	AS568A 219N90 (32.92 mm X 3.53 mm)
29	WA103076	8	Washer	7/16", Hardened
30	WA101831	3	Threaded Nipple	3/8" BSP X 3/4" JIC
31	WA103344	2	Adapter Fitting	3/8" BSPPM - 9/16" JICM
32	WA109705	1	Bracket	Accumulator Mounting
33	WA103517	5	Sealing Washer	3/8" Dowty (-06)
34	WA130416	1	Pad	Rubber Mount
35	WA130469	1	Bracket	-
36	WA130417	1	Plate	Locating Plate
37	WA131939	1	Plate	H-16 Mounting
38	WA131940	2	Spacer	OD 26 X ID 13 X 18
39	WA132750	1	Bracket	-
40	WA109704	1	Bracket	-
41	WA118139	1	Plate	-

Valve and Mounting Bracket (000024 - )
