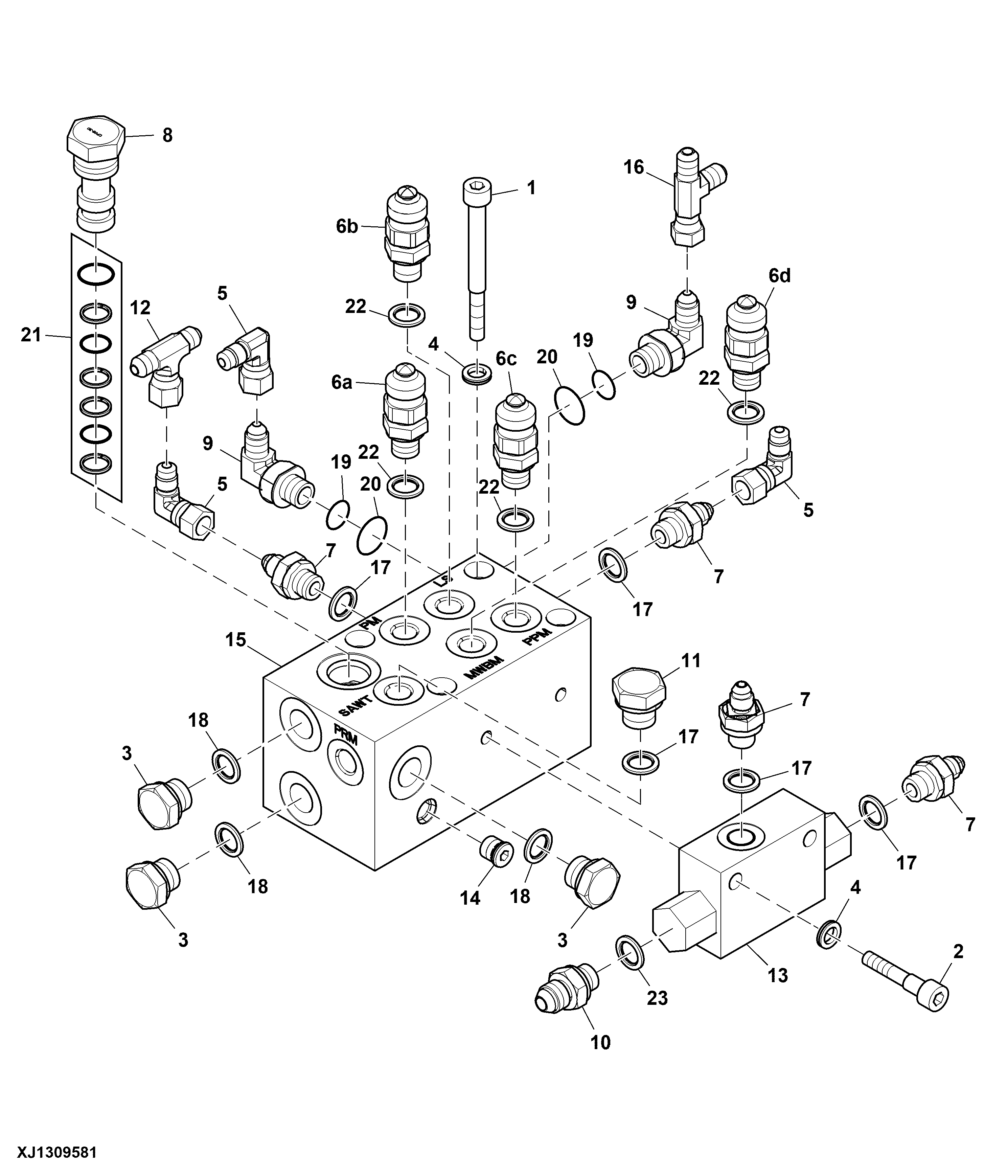

Remote Manifold Without Auto Tension, With Load Sense ( - 000021)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F001623	4	Cap Screw	M8 X 40
2	F010829	2	Cap Screw	M8 X 40
3	F351076	3	Pipe Plug	3/8" BSPPM
4	WA100426	6	Lock Washer	5/16", Disc-lock
5	WA100477	3	Elbow Fitting	7/16" JIC - 7/16" JIC 90 degree
6	WA101135	4	Fitting	1/4" BSPF test point, (a) Main pump supply pressure (PM), (b) Load sense pressure (LS), (c) Pilot pressure (PPM), (d) Measuring arm down pressure (MWBM)
7	WA101361	4	Threaded Nipple	1/4" BSP - 7/16" JIC nipple
8	WA101447	1	Pipe Plug	-
9	WA102254	2	Elbow Fitting	7/16" JICM - 1/4" BSPPM
10	WA102853	1	Fitting	1/4" BSPPM - 9/16" JICM, For seal, check key 23
11	WA103188	1	Pipe Plug	1/4" BSPPM
12	WA105339	1	Tee Fitting	7/16" JICM - 7/16" JICM - 7/16" JICM
13	WA108323	1	Valve	-
14	WA113140	1	Plug	-
15	WA120006	1	Manifold	-
16	WA120300	1	Tee Fitting	-
17	WA101140	5	Sealing Washer	1/4" Dowty (-04)
18	WA103517	3	Sealing Washer	3/8" Dowty (-06)
19	WA129372	2	Seal	OD 11.1 X 2.4 mm, O-ring V-04
20	WA129361	2	Sealing Washer	OD 20.2 X 1.5 mm, 1/4" retaining ring
21	WA110243	1	Seal Kit	-
22	WA119458	4	Sealing Washer	1/4" DIN 3869
23	WA101140	1	Sealing Washer	1/4" Dowty (-04)
23	WA129372	1	Seal	OD 11.1 X 2.4 mm, O-ring V-04

Remote Manifold Without Auto Tension, With Load Sense ( - 000021)
