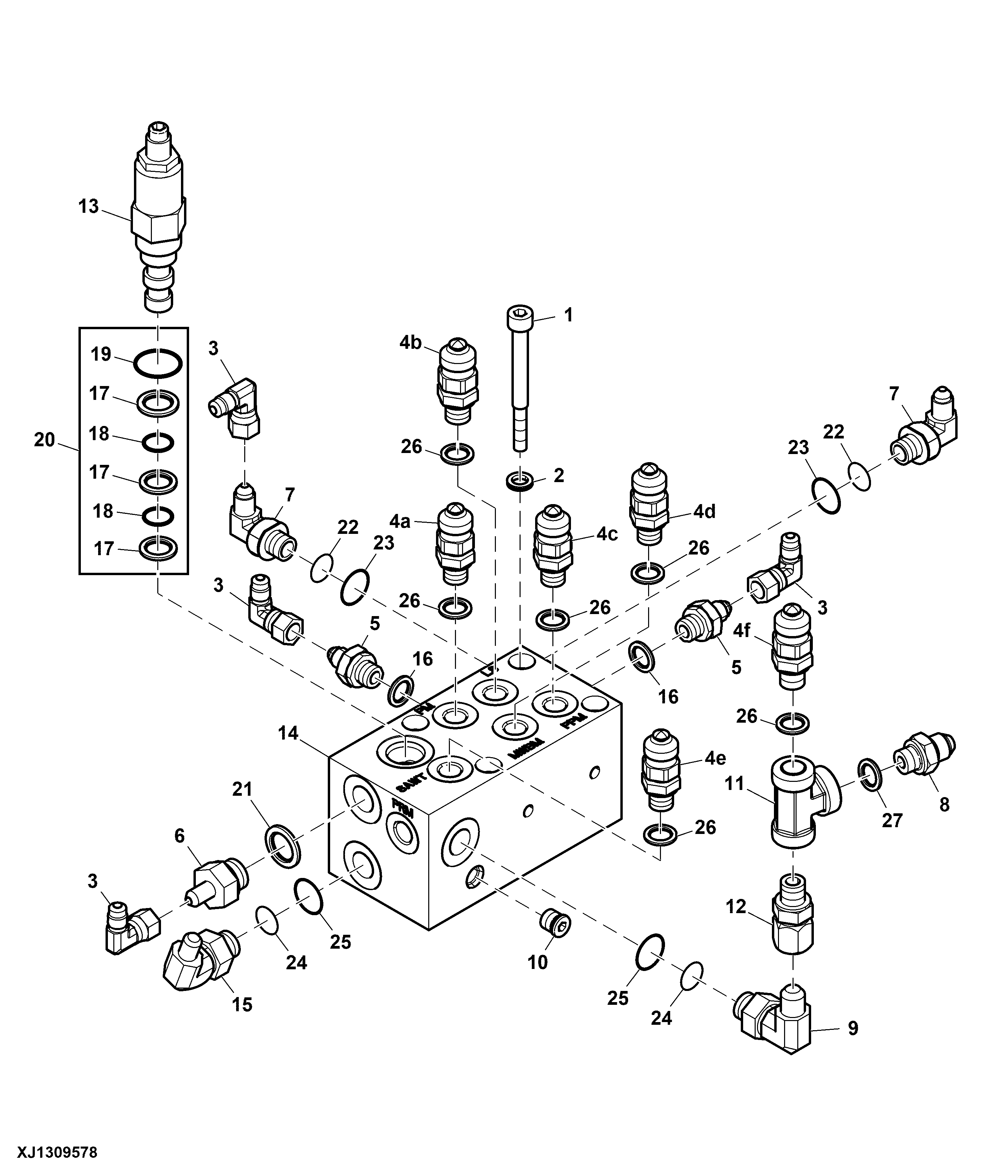

Remote Manifold With Auto Tension, Without Load Sense ( - 000021)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F001623	4	Cap Screw	M8 X 40
2	WA100426	4	Lock Washer	5/16", Disc-lock
3	WA100477	4	Elbow Fitting	7/16" JIC - 7/16" JIC 90 degree
4	WA101135	6	Fitting	1/4" BSPF test point, (a) Main pump supply pressure (PM), (b) Load sense pressure (LS), (c) Pilot pressure (PPM), (d) Measuring arm down pressure (MWBM), (e) Main saw tension pressure (SAWT), (f) Main reduced pressure (PRM)
5	WA101361	2	Threaded Nipple	1/4" BSP - 7/16" JIC nipple
6	WA101835	1	Threaded Nipple	3/8" BSPPM - 7/16" JICM
7	WA102254	2	Elbow Fitting	7/16" JICM - 1/4" BSPPM
8	WA102853	1	Fitting	1/4" BSPPM - 9/16" JICM, For seal, check key 27
9	WA108277	1	Hose Fitting	9/16" JICM - 3/8" BSPPM
10	WA113140	1	Plug	-
11	WA119345	1	Tee Fitting	7/16" JICM - 1/8" BSPPM
12	WA119346	1	Fitting	1/4" BSPPF
13	WA119415	1	Pressure Relief Valve	Main saw chain tension PRV
14	WA120006	1	Manifold	-
15	WA120856	1	Fitting	7/16" JICM - 3/8" BSPPM
16	WA101140	2	Sealing Washer	1/4" Dowty (-04)
17	-	3	Part 17	-
18	-	2	Part 18	-
19	-	1	Part 19	-
20	WA120398	1	Seal Kit	USE WITH <service-part>WA119415</service-part>
21	WA103517	1	Sealing Washer	3/8" Dowty (-06)
22	WA129372	2	Seal	OD 11.1 X 2.4 mm, O-ring V-04
23	WA129361	2	Sealing Washer	OD 20.2 X 1.5 mm, 1/4" retaining ring
24	WA129373	2	Seal	O-ring, V-06, OD 14.3 X 2.4 mm
25	WA129362	2	Sealing Washer	OD 23.9 X 1.6 mm, 3/8" retaining ring
26	WA119458	6	Sealing Washer	1/4" DIN 3869
27	WA101140	1	Sealing Washer	1/4" Dowty (-04)
27	WA129372	1	Seal	OD 11.1 X 2.4 mm, O-ring V-04

Remote Manifold With Auto Tension, Without Load Sense ( - 000021)
