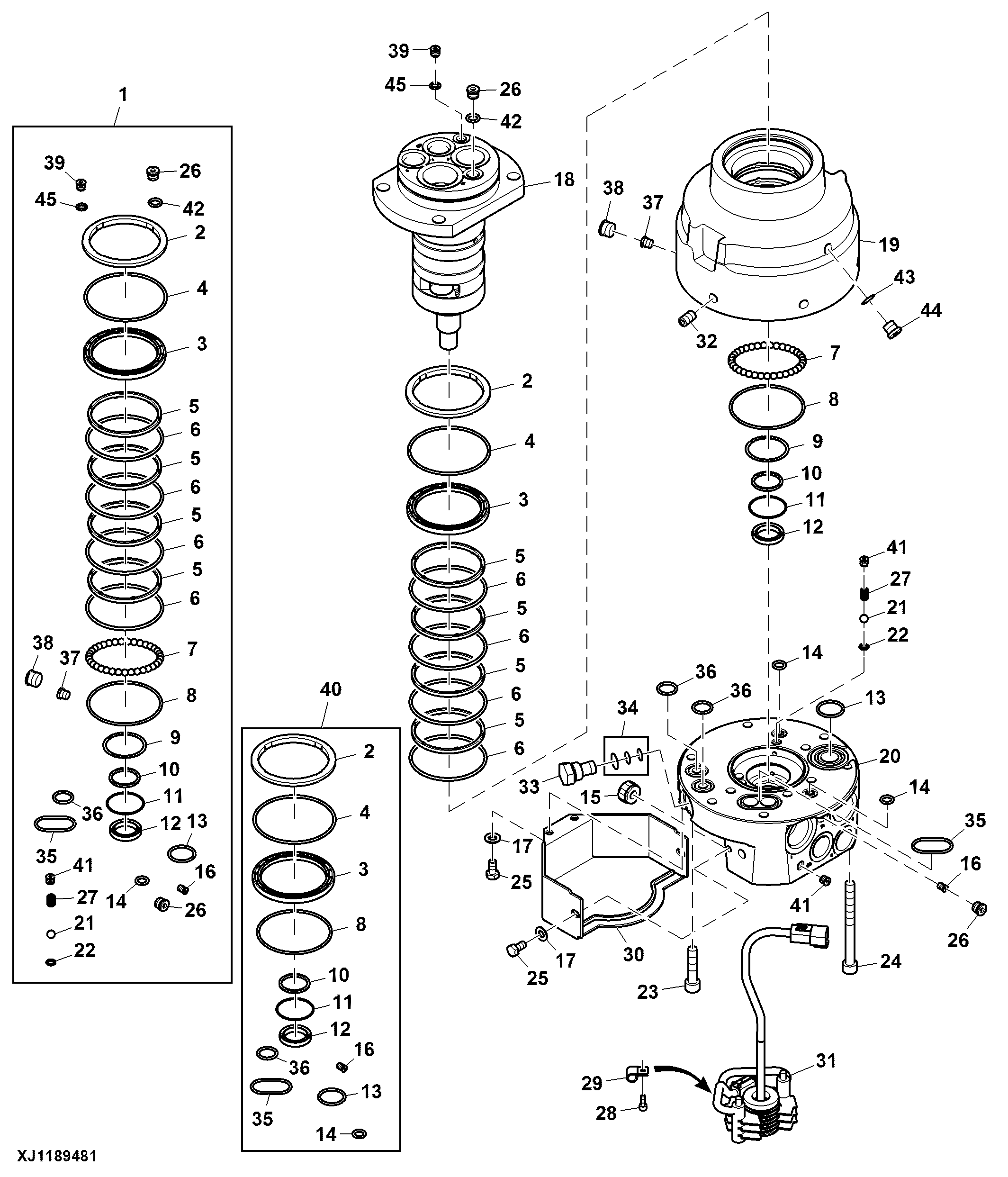

Manifold, Continuous Rotation (000074 - 000146)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA124554	1	Seal Kit	-
2	-	1	Part 2	90 MM, Enviro Seal
3	-	1	Part 3	90 X 110 X 7.5 MM, Enviro Seal
4	-	1	Part 4	110 X 114 X 2 MM
5	-	4	Part 5	GLIDE LOC SEAL
6	-	4	Part 6	-
7	-	1	Part 7	8 MM, Steel Ball
8	-	1	Part 8	4" X 3 3/4" X 1/8"
9	-	4	Part 9	Spiral Snap Ring
10	-	1	Part 10	3/4" X 1/2" X 1/8", Buffer Seal
11	-	1	Part 11	-
12	-	1	Part 12	30 MM, Enviro Seal
13	-	1	Part 13	1 1/2" X 1 1/4" X 1/8"
14	-	1	Part 14	3/4" X 1/2" X 1/8"
15	WA119096	1	Fitting	1/2", Liquid Tight
16	-	1	Part 16	SAE 2 ORB, 0.030 MM
17	WA102525	4	Washer	5/16", Hardened
18	WA126078	1	Spool	Rotary
19	WA126077	1	Barrel	90 MM, Four Pass Rotary
20	WA126076	1	Hydraulic Component	End-cap
21	-	1	Part 21	Steel
22	-	1	Part 22	-
23	WA119098	6	Cap Screw	M10 X 45 GR 12.9
24	WA119099	4	Cap Screw	M10 X 110 GR 12.9
25	WA119100	4	Bolt	5/16 UNC X 5/8"
26	-	1	Part 26	06 ORB ZLG Plug SH
27	-	1	Part 27	-
28	WA119121	2	Cap Screw	5/16" UNC X 5/8"
29	WA119104	2	Clamp	3/8", P-Clamp
30	WA126075	1	Guard	-
31	WA119107	1	Electrical Equipment	Connects to cable <service-part>WA120109</service-part> Brush Lead Set
32	22M7164	6	Set Screw	M12 X 20
33	WA125810	2	Check Valve	-
34	WA126181	2	Seal Kit	Check Valve
35	-	1	Part 35	1 7/8" X 1 5/8" X 1/8"
36	-	2	Part 36	1 1/8" X 7/8" X 1/8"
37	-	1	Part 37	SAE 04 ORB
38	-	1	Part 38	08 ORB ZLG Plug SH
39	-	1	Part 39	04 ORB ZLG Plug SH
40	WA124553	1	Seal Kit	Soft
41	-	2	Part 41	02 ORB ZLG Plug SH
42	-	1	Part 42	-
43	-	1	Part 43	6 X 1.6 MM
44	-	1	Part 44	SAE 2 ORB 5/16" - 24 UNF
45	-	1	Part 45	-

Manifold, Continuous Rotation (000074 - 000146)
