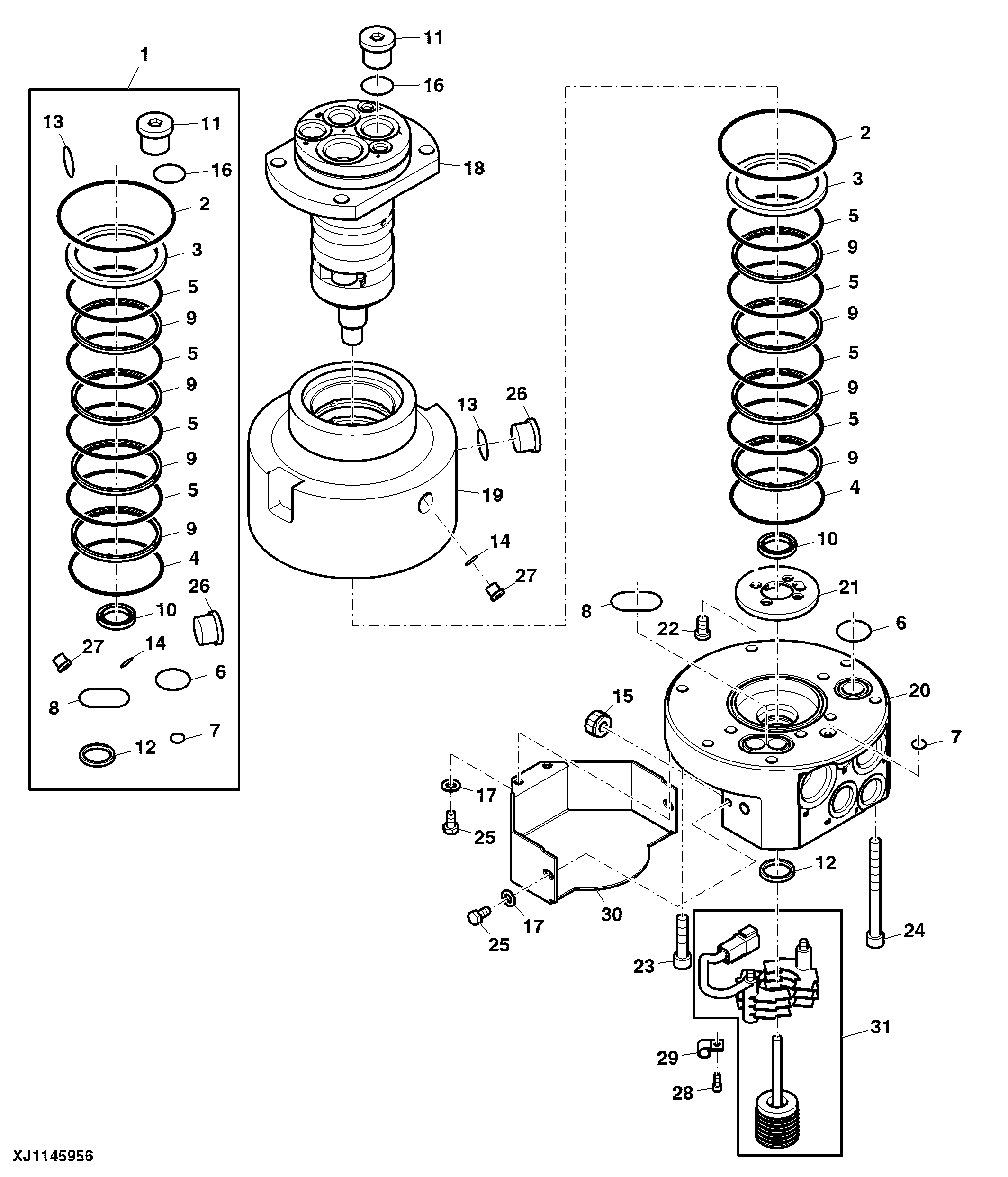

Manifold (Continuous Rotation) ( - 000042)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA119108	1	Seal Kit	-
2	-	1	Part 2	110 X 114 X 2 MM
3	-	1	Part 3	90 MM, Enviro Seal
4	-	1	Part 4	4" X 3 3/4" X 1/8"
5	-	4	Part 5	96 X 104 X 4 MM
6	-	1	Part 6	1 1/2" X 1 1/4" X 1/8"
7	-	1	Part 7	1/2" X 3/4" X 1/8"
8	-	1	Part 8	1 7/8" X 1 5/8" X 1/8"
9	-	4	Part 9	GLIDE LOC SEAL
10	-	1	Part 10	30 X 42 X 6 MM
11	-	1	Part 11	SAE 6 ORB 9/16" - 18 UNF
12	-	1	Part 12	1 3/16" X 1 1/2" X 5/32" X 5/32", U-Cup
13	-	1	Part 13	23.5 X 3 MM
14	-	1	Part 14	6 X 1.6 MM
15	WA119096	1	Fitting	1/2", Liquid Tight
16	-	1	Part 16	11.9 X 2 MM
17	WA102525	4	Washer	5/16", Hardened
18	WA119080	1	Spool	Rotary
19	WA119081	1	Barrel	90 MM, Four Pass Rotary
20	WA119082	1	Manifold	-
21	WA119083	1	Plate	-
22	WA119097	4	Cap Screw	3/8" UNC X 5/8", Low Head
23	WA119098	6	Cap Screw	M10 X 45 GR 12.9
24	WA119099	4	Cap Screw	M10 X 110 GR 12.9
25	WA119100	4	Bolt	5/16 UNC X 5/8"
26	WA119101	1	Plug	12 ORB / 1 1/16" - 12 UNF
27	WA119102	1	Plug	SAE 2 ORB 5/16" - 24 UNF
28	WA119121	2	Cap Screw	5/16" UNC X 5/8"
29	WA119104	2	Clamp	3/8", P-Clamp
30	WA119105	1	Cover	-
31	WA119107	1	Electrical Equipment	Connects to cable <service-part>WA120109</service-part> Brush Lead Set
