J3 Head Plug, Wiring Loom, H16

J3 Head Plug, Wiring Loom, H16

J3 Head Plug, Wiring Loom, H16

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

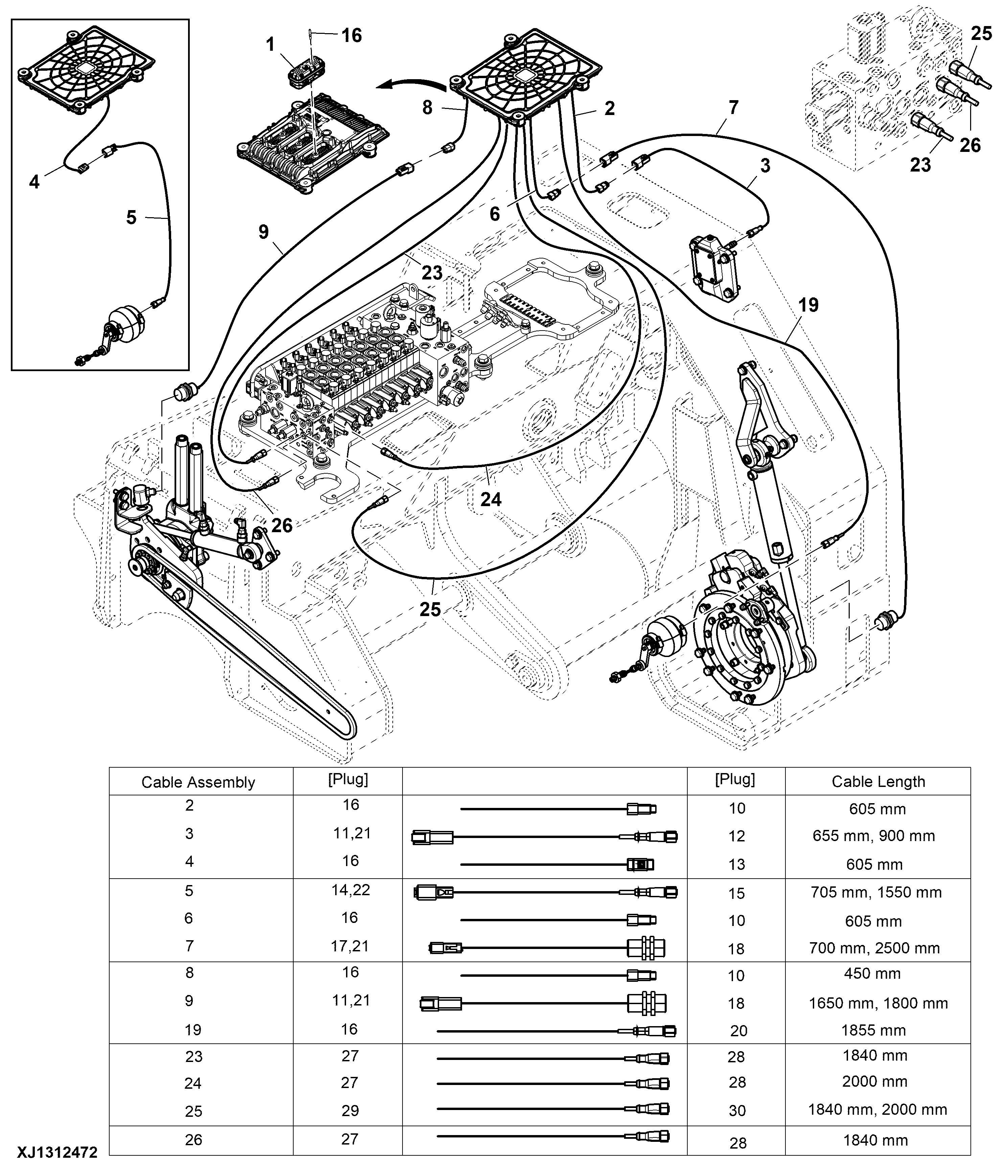

J3 Head Plug, Wiring Loom, H16

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE543731	1	Elec. Connector Accessory	J3 head plug
2	WA131981	1	Wiring Harness	Find end left ( J3-X24B )
3	WA133551	1	Cable	Find end left ( X24A-B22 )
3	WA131873	1	Wiring Harness	Find end left ( X24A-B22 ) USE WITH WA133551
4	WA131980	1	Cable	Diameter left ( J3-X19B )
5	WA131870	1	Cable	ORDER WA133637
5	WA133637	1	Cable	Diameter left ( X19A-B19 ) ORDER WA134566
6	WA131976	1	Wiring Harness	Main saw proximity sensor 3/4 ( J3-X22B )
7	WA131872	1	Cable	Main saw proximity sensor 3/4 ( X22A-B8 ) USE WITH WA133550
7	WA133550	1	Cable	Main saw proximity sensor 3/4 ( X22A-B8 )
8	WA131977	1	Cable	Top saw proximity sensor ( J3-X23B )
9	WA131874	1	Wiring Harness	Top Saw Proximity Sensor ( X23A-B9 ) USE WITH WA133552
9	WA133552	1	Cable	Top saw proximity sensor ( X23A-B9 )
10	57M9077	1	Elec. Connector Accessory	-
10	57M7771	1	Elec. Connector Terminal	-
10	57M8546	3	Elec. Connector Terminal	-
10	57M8263	3	Elec. Connector Terminal	-
10	57M9076	3	Elec. Connector Housing	-
11	57M9918	2	Elec. Connector Housing	USE WITH WA131873 AND WA131874
11	57M11640	3	Elec. Connector Terminal	-
11	57M7771	1	Elec. Connector Terminal	-
12	WA131607	1	Cable	Cable with plug USE WITH WA131873
12	WA133993	1	Electrical Conductor	Cable with plug USE WITH WA133551
13	57M8488	1	Elec. Connector Housing	-
13	57M8263	3	Elec. Connector Terminal	-
13	57M8546	3	Elec. Connector Terminal	-
13	57M8547	1	Elec.Connect Locking Device	-
14	57M10668	1	Elec. Connector Accessory	-
14	57M11640	3	Elec. Connector Terminal	-
14	57M8489	1	Elec. Connector Housing	USE WITH WA131870
15	WA131607	1	Cable	Cable with plug USE WITH WA131870
15	WA133993	1	Electrical Conductor	Cable with plug USE WITH WA133637
16	57M8263	1	Elec. Connector Terminal	-
17	57M9918	1	Elec. Connector Housing	USE WITH WA131872
17	57M11058	3	Elec. Connector Terminal	-
17	57M7771	1	Elec. Connector Terminal	-
18	F351139	2	Proximity Sensor	-
19	WA134566	1	Electrical Conductor	Diameter left ( J3-B36 )
20	WA133992	1	Cable	-
21	57M9918	3	Elec. Connector Housing	USE WITH WA133551, WA133550 AND WA133552
21	57M9924	3	Elec. Connector Terminal	-
21	57M7771	1	Elec. Connector Terminal	-
21	CB01495946	1	Elec. Connector Accessory	-
22	57M8489	1	Elec. Connector Housing	USE WITH WA133637
22	57M10668	1	Elec. Connector Accessory	-
22	57M9924	3	Elec. Connector Terminal	-
23	WA131881	1	Cable	Head - main pressure sensor ( J3-B3 )
24	WA131882	1	Cable	Return pressure ( J3-B4 )
25	WA131883	1	Cable	ORDER WA135934
25	WA135934	1	Cable	Load pressure sensor ( J3-B5 )
26	WA131884	1	Cable	Case drain pressure ( J3-B6 )
27	57M9808	8	Elec. Connector Terminal	-
28	WA131607	3	Cable	-
29	57M9808	2	Elec. Connector Terminal	USE WITH WA131883
29	57M8263	2	Elec. Connector Terminal	USE WITH WA135934
30	WA131607	1	Cable	USE WITH WA131883
30	WA133993	1	Electrical Conductor	USE WITH WA135934
