Открытый узел

J2 Head Plug, Wiring Loom, H16

J2 Head Plug, Wiring Loom, H16

J2 Head Plug, Wiring Loom, H16

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

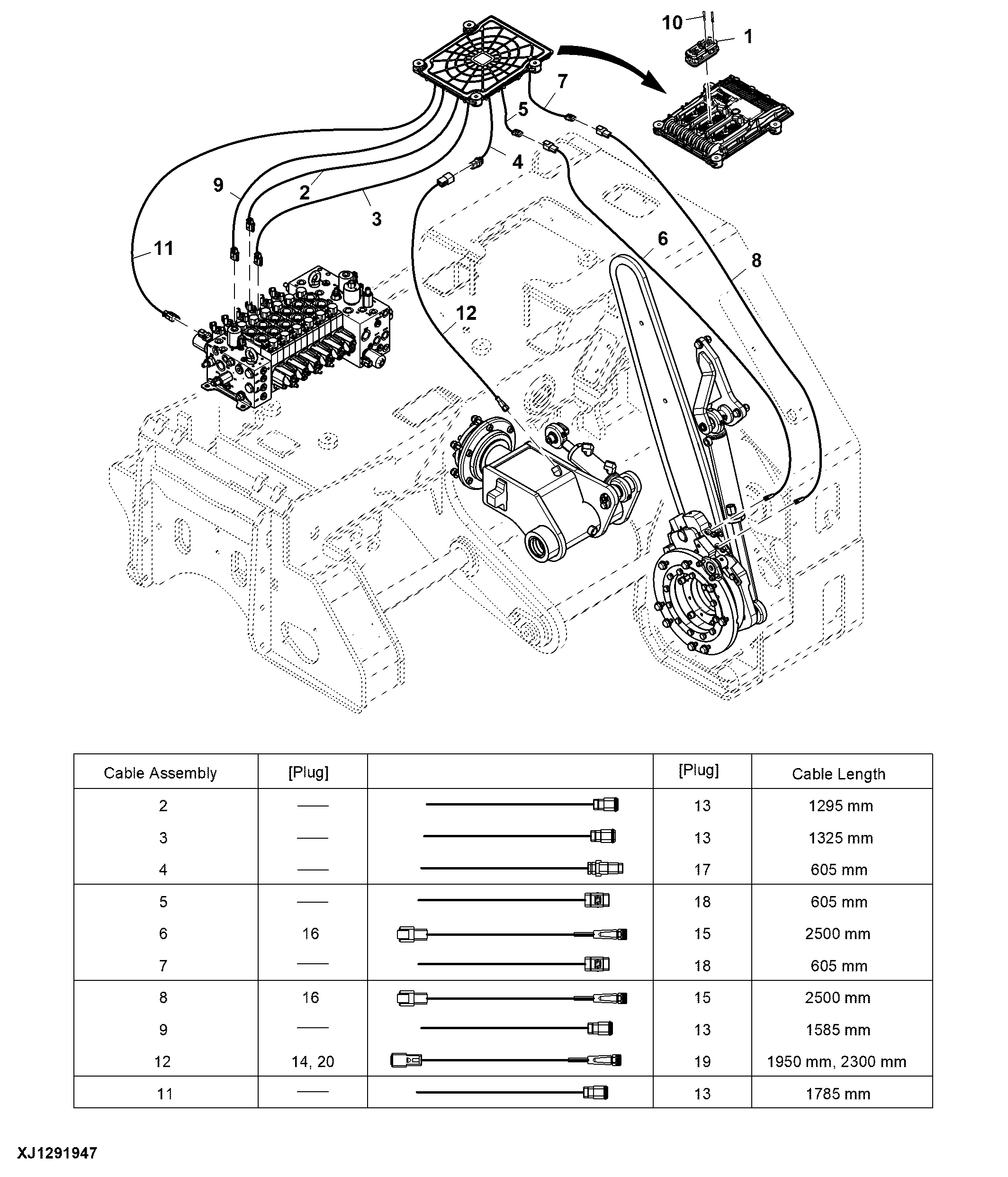

J2 Head Plug, Wiring Loom, H16

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE543732	1	Elec. Connector Accessory	J2 Head Plug
2	WA131893	1	Cable	Tilt Down ( J2-Y87 )
3	WA131894	1	Cable	Tilt Up ( J2-Y86 )
4	WA131975	1	Wiring Harness	Length Encoder ( J2-X20B )
5	WA131978	1	Cable	3/4 Saw Position A ( J2-X25B )
6	WA131885	1	Cable	3/4 Saw Position A ( X25A-B12 )
7	WA131979	1	Cable	3/4 Saw Position B ( J2-X26B )
8	WA131886	1	Electrical Conductor	3/4 Saw Position B ( X26A-B13 )
9	WA131959	1	Wiring Harness	Top Saw Cylinder ( J2-Y95 )
10	57M8263	1	Elec. Connector Terminal	-
11	WA131880	1	Cable	Saw Oil Diverter ( J2-Y9 )
12	WA131871	1	Cable	ORDER WA133548
12	WA133548	1	Cable	Length Encoder ( X20A-B2 )
13	57M7534	4	Elec. Connector Housing	-
13	57M11230	1	Elec. Connector Accessory	-
13	57M7620	1	Electrical Connector Assy	-
13	57M8263	2	Elec. Connector Terminal	-
14	57M10346	1	Elec. Connector Housing	-
14	57M7771	2	Elec. Connector Terminal	-
14	57M10265	1	Elec.Connect Locking Device	USE WITH WA131871
14	57M11640	4	Elec. Connector Terminal	-
15	WA131900	2	Wiring Harness	-
16	57M8489	2	Elec. Connector Housing	-
16	57M11640	3	Elec. Connector Terminal	-
16	57M10668	1	Elec. Connector Accessory	-
17	57M9132	1	Elec.Connect Locking Device	-
17	57M7771	2	Elec. Connector Terminal	-
17	57M8546	4	Elec. Connector Terminal	-
17	57M9808	4	Elec. Connector Terminal	-
17	57M12704	1	Elec. Connector Housing	-
18	57M8488	2	Elec. Connector Housing	-
18	57M8263	3	Elec. Connector Terminal	-
18	57M8546	3	Elec. Connector Terminal	-
18	57M8547	1	Elec.Connect Locking Device	-
19	WA131606	1	Cable	Cable With Plug USE WITH WA131871
19	WA133992	1	Cable	Cable With Plug USE WITH WA133548
20	57M10265	1	Elec.Connect Locking Device	USE WITH WA133548
20	57M9924	4	Elec. Connector Terminal	-
20	57M7771	2	Elec. Connector Terminal	-
20	57M10346	1	Elec. Connector Housing	-
