Открытый узел

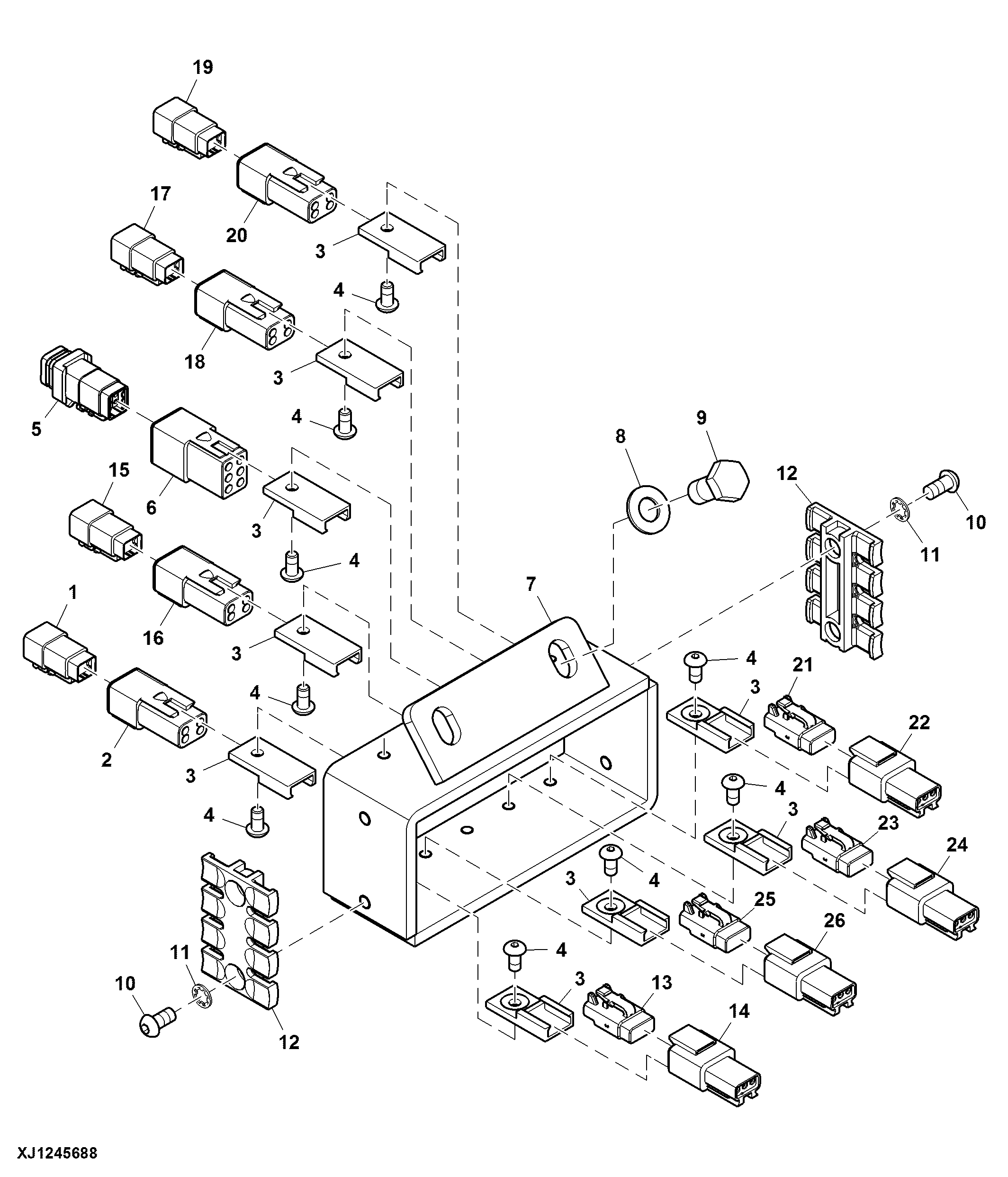

Bracket, Head Module Box (TimberRite™ Controller)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9076	4	Elec. Connector Housing	Speed Sensor RH Input Cable
2	57M9918	4	Elec. Connector Housing	Speed Sensor RH Output Sensor Cable
2	57M9924	4	Elec. Connector Terminal	Deutsch Pin
3	57M8439	9	Elec. Connector Accessory	Deutsch Mounting Clip
4	WA104370	9	Bolt	M5 X 10, Button Head
5	57M12704	1	Elec. Connector Housing	Length Measuring Input Cable
6	57M10265	1	Elec.Connect Locking Device	Length Measuring Output Sensor Cable
6	57M9924	4	Elec. Connector Terminal	Deutsch Pin
7	WA130921	1	Bracket	-
8	WA102964	2	Washer	3/8", Hardened
9	19M8607	2	Cap Screw	M10 X 20
10	WA101292	4	Cap Screw	M6 X 12, Button Head
11	WA102633	4	Washer	6 mm, Internal Lock
12	WA130924	2	Mounting Parts	Cable Tie Point
13	57M8488	4	Elec. Connector Housing	Diameter Measure RH Input Cable
14	57M8489	4	Elec. Connector Housing	Diameter Measure RH Output Sensor Cable
14	57M9924	3	Elec. Connector Terminal	Deutsch Pin
15	57M9076	4	Elec. Connector Housing	Speed Sensor LH Input Cable
16	57M9924	4	Elec. Connector Terminal	Deutsch Pin
16	57M9918	4	Elec. Connector Housing	Speed Sensor LH Output Sensor Cable
17	57M9076	4	Elec. Connector Housing	Top Saw Input Cable
18	57M9918	4	Elec. Connector Housing	Top Saw Output Sensor Cable
18	57M9924	4	Elec. Connector Terminal	Deutsch Pin
19	57M9076	4	Elec. Connector Housing	Main Saw Input Cable
20	57M9918	4	Elec. Connector Housing	Main Saw Output Sensor Cable
20	57M9924	4	Elec. Connector Terminal	Deutsch Pin
21	57M8488	4	Elec. Connector Housing	Find End LH Input Cable
22	57M8489	4	Elec. Connector Housing	Find End LH Output Sensor Cable
22	57M9924	3	Elec. Connector Terminal	Deutsch Pin
23	57M8488	4	Elec. Connector Housing	Find End RH Input Cable
24	57M8489	4	Elec. Connector Housing	Find End RH Output Sensor Cable
24	57M9924	3	Elec. Connector Terminal	Deutsch Pin
25	57M8488	4	Elec. Connector Housing	Diameter Measure LH Input Cable
26	57M8489	4	Elec. Connector Housing	Diameter Measure LH Output Sensor Cable
26	57M9924	3	Elec. Connector Terminal	Deutsch Pin

Bracket, Head Module Box (TimberRite™ Controller)

Нет текстового описания
