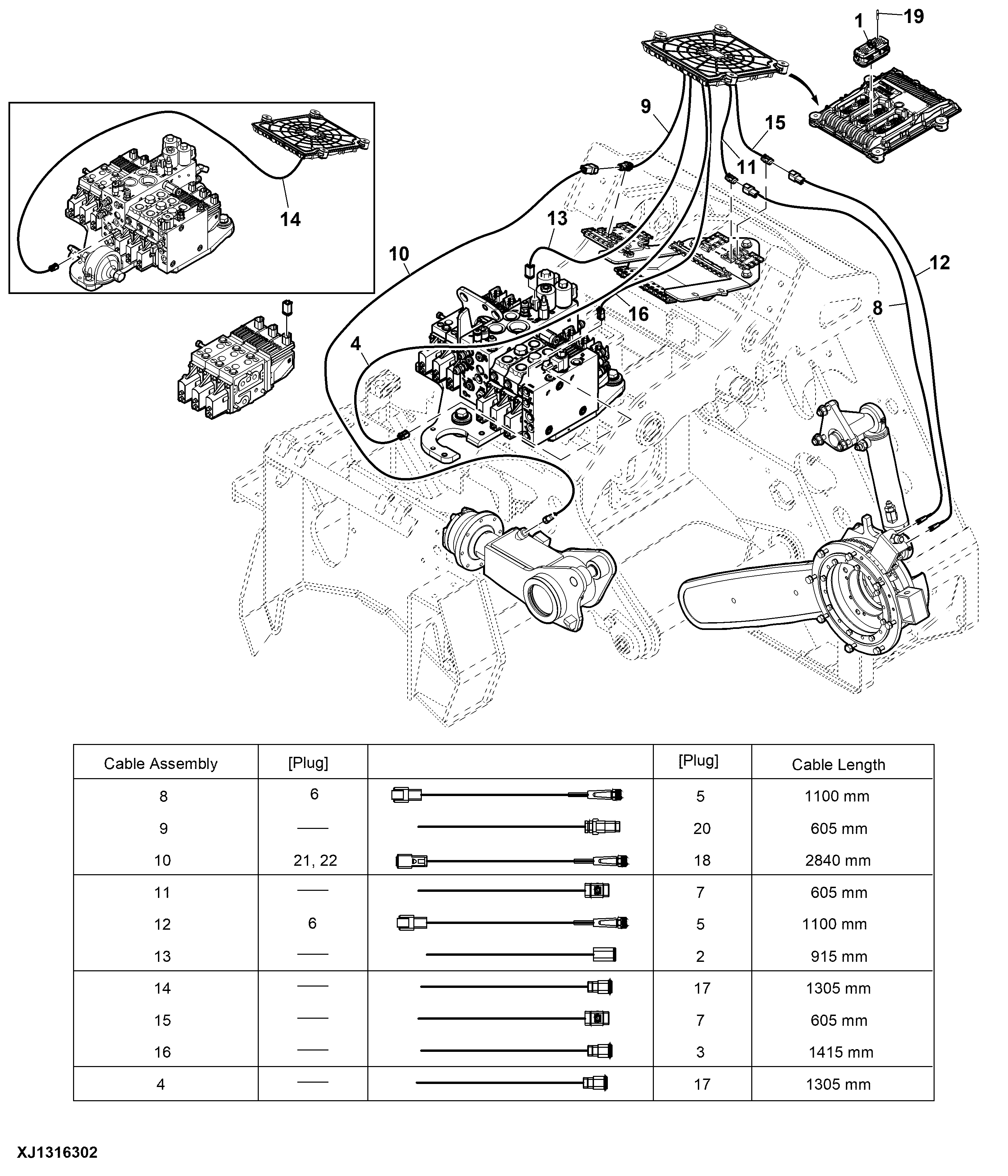

J2 Head Plug wiring Loom, H-16

J2 Head Plug wiring Loom, H-16

J2 Head Plug wiring Loom, H-16

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

J2 Head Plug wiring Loom, H-16

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE543732	1	Elec. Connector Accessory	J2 Head Plug
2	57M7535	1	Elec. Connector Terminal	-
2	57M11286	1	Elec. Connector Accessory	-
2	57M8263	4	Elec. Connector Terminal	-
2	57M7618	1	Electrical Connector Assy	-
3	57M7534	1	Elec. Connector Housing	-
3	57M8263	2	Elec. Connector Terminal	-
3	57M7620	1	Electrical Connector Assy	-
3	57M11230	1	Elec. Connector Accessory	-
3	57M13854	1	Elec. Connector Accessory	-
4	WA131721	1	Cable	Tilt Lock ( J2-Y11 )
5	WA131900	2	Wiring Harness	-
6	57M11640	3	Elec. Connector Terminal	-
6	57M10668	1	Elec. Connector Accessory	-
6	57M8489	2	Elec. Connector Housing	USE WITH WA131744 AND WA131743
7	57M8488	2	Elec. Connector Housing	-
7	57M8546	3	Elec. Connector Terminal	-
7	57M8547	1	Elec.Connect Locking Device	-
7	57M8263	3	Elec. Connector Terminal	-
8	WA131744	1	Cable	3/4 Saw Position B ( X26A-B13 )
9	WA131961	1	Cable	Length Encoder ( J2-X20B )
10	WA131736	1	Wiring Harness	ORDER WA133443
10	WA133443	1	Cable	Length Encoder ( X20A-B2 )
11	WA131965	1	Wiring Harness	3/4 Saw Position B ( J2-X26B )
12	WA131743	1	Cable	3/4 Saw Position A ( X25A-B12 )
13	WA131724	1	Cable	Tilt Up/Down ( J2-Y42 )
14	WA131721	1	Cable	Tilt Lock ( J2-Y11 )
15	WA131964	1	Wiring Harness	3/4 Saw Position A ( J2-X25B )
16	WA131725	1	Wiring Harness	Saw Return ( J2-Y59 )
17	57M7534	2	Elec. Connector Housing	-
17	57M8263	2	Elec. Connector Terminal	-
17	57M7620	1	Electrical Connector Assy	-
18	WA131606	1	Cable	Cable With Plug USE WITH WA131736
18	WA133992	1	Cable	Cable With Plug USE WITH WA133443
19	57M8263	1	Elec. Connector Terminal	-
20	57M9132	1	Elec.Connect Locking Device	-
20	57M9808	4	Elec. Connector Terminal	-
20	57M9808	4	Elec. Connector Terminal	-
20	57M7771	2	Elec. Connector Terminal	-
20	57M8546	4	Elec. Connector Terminal	-
20	57M12704	1	Elec. Connector Housing	-
21	57M10265	1	Elec.Connect Locking Device	USE WITH WA131736
21	57M11640	4	Elec. Connector Terminal	-
21	57M7771	2	Elec. Connector Terminal	-
21	57M10346	1	Elec. Connector Housing	-
22	57M10265	1	Elec.Connect Locking Device	USE WITH WA133443
22	57M9924	4	Elec. Connector Terminal	-
22	57M7771	2	Elec. Connector Terminal	-
22	57M10346	1	Elec. Connector Housing	-
