Inlet Valve Manifold, H16 ( - 000566)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA123551	2	Electrical Coil	SV08 Deutsch
2	WA106193	1	Valve	Pulse oiler solenoid valve
3	WA123551	1	Electrical Coil	-
4	WA130375	2	Nut	-
5	WA101140	5	Sealing Washer	1/4" Dowty (-04)
6	F351112	1	Relief Valve	Measuring arm pressure control valve
7	-	6	Part 7	Red, Solid
8	-	4	Part 8	-
9	-	3	Part 9	-
10	-	3	Part 10	Red, Solid
11	WA103606	5	Plug	908 BG 1/4-8.8, Without Measuring Arm
12	WA112531	2	Solenoid Valve Coil	With Measuring Arm
12	WA112531	2	Solenoid Valve Coil	Without Measuring Arm
13	WA115090	2	Solenoid Valve	(a) Main saw cylinder solenoid valve, (b) Measuring arm cylinder solenoid valve
14	-	1	Part 15	-
15	-	1	Part 16	O-Ring With Built In Back-Up Ring
16	WA113152	1	Solenoid Valve Coil	-
17	WA105882	1	Valve	Main saw bar proportional pressure control valve
18	-	1	Part 19	-
19	-	1	Part 20	-
20	-	2	Part 21	White, Spilt
21	WA112533	1	Relief Valve	Main supply pressure relief valve
22	-	1	Part 23	-
23	WA130442	1	Hydraulic Pressure Valve	Main saw, top saw oiler & main saw, measuring cylinder pressure reducing control valve
24	-	1	Part 25	-
25	-	2	Part 26	-
26	-	2	Part 27	Yellow, Solid
27	-	2	Part 28	RED, SOLID
28	-	1	Part 29	White, Spilt
29	-	1	Part 30	-
30	-	1	Part 31	-
31	WA112809	1	Hydraulic Pressure Valve	Tilt Lock valve
32	WA127834	1	Manifold	-
33	WA110243	1	Seal Kit	-
34	WA116613	1	Seal Kit	-
35	WA116614	3	Seal Kit	-
36	AT350215	1	O-Ring Kit	-
37	F435664	3	Seal Kit	-
38	-	1	Part 39	-
39	WA116615	1	Seal Kit	-
40	-	1	Part 41	Black, Solid
41	WA117360	2	Relief Valve	(a) Main saw tensioning control valve (TENSION), auto-tension only, (b) Pilot pressure control valve (PILOT); also main saw tensioning control valve (PILOT), manual tension only
42	WA117307	1	Plug	Plug, no measuring arm
43	F351113	2	Plug	Plug, (a) no measuring arm, (b) manual tension (TENSION)
44	WA103517	1	Sealing Washer	3/8" Dowty (-06)
45	WA134706	1	Nut	-
46	F351076	1	Pipe Plug	Without Tilt Lock

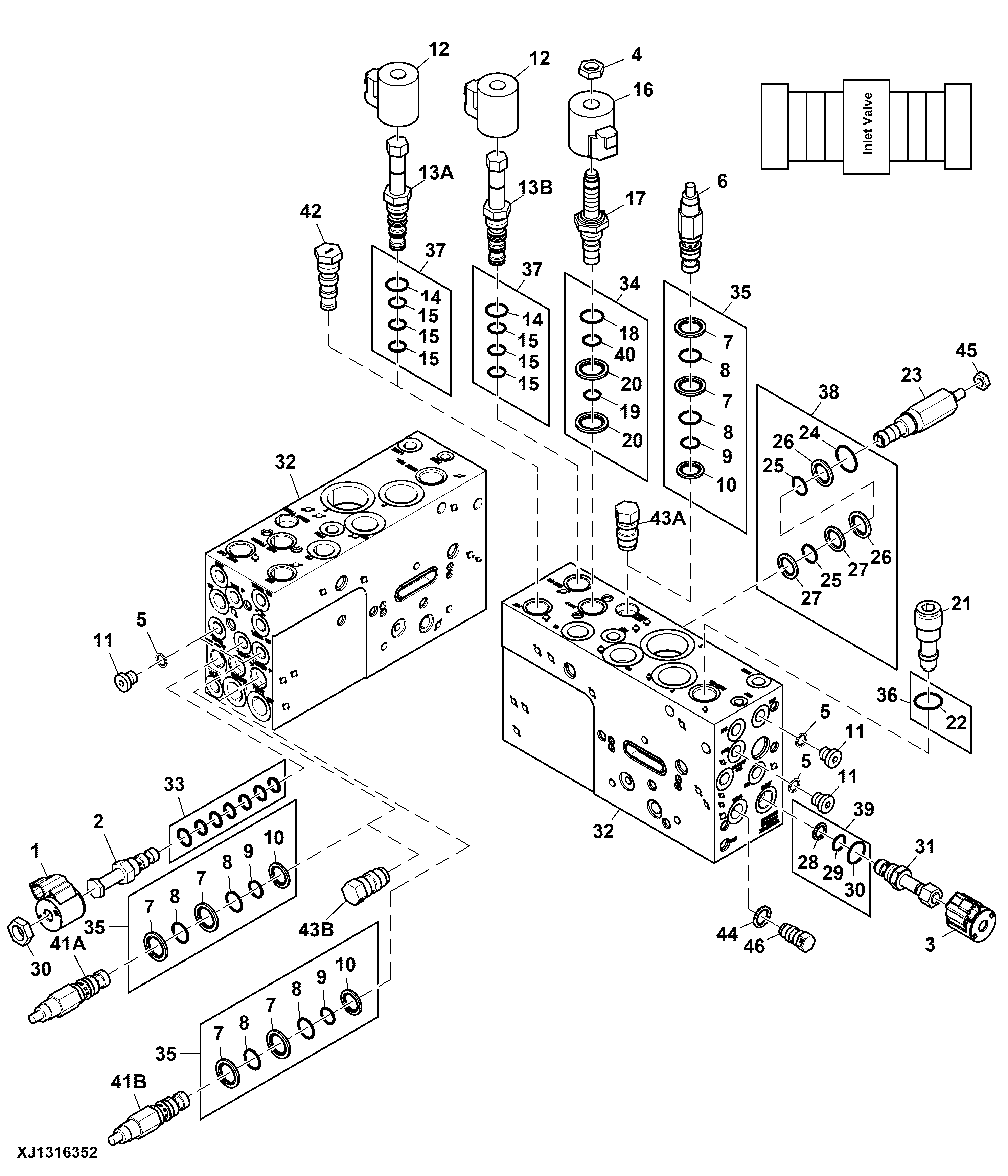

Inlet Valve Manifold, H16 ( - 000566)
